Produktbeschreibung

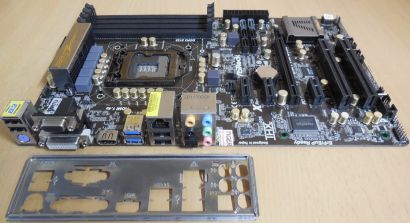

ASRock Z68 Pro3 Gen3 Rev1.01 Mainboard + Blende Intel Z68 Sockel 1155 DDR3 VGA PCIe HDMI USB3.0
Technische Daten
CPU
Supports 3rd and 2nd Generation Intel® Core™ i7 / i5 / i3 / Xeon® / Pentium® / Celeron® in LGA1155 Package
4 + 2 Power Phase Design
Supports Intel® Turbo Boost 2.0 Technology, Intel® K-Series unlocked CPU, Hyper-Threading Technology
Chipsatz
Intel® Z68
Arbeitsspeicher
Dual Channel DDR3 memory technology
4 x DDR3 DIMM slots
Supports DDR3 2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory
Supports Intel® Extreme Speicherprofile (XMP)
Max. capacity of system memory: 32GB*
*Aufgrund von Limitierungen im Betriebssystem ist es möglich, dass Windows® 32-bit OS weniger als 4 GB RAM für das System reservieren kann. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
**In order to maximize the system memory, please install 8GB memory module with 16 cells
Grafik
Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® HD Graphics 2000/3000, Intel® Advanced Vector Extensions (AVX)
Pixel Shader 4.1, DirectX 11 with Intel® Ivy Bridge CPU, DirectX 10.1 with Intel® Sandy Bridge CPU
Max. shared memory 1759MB
Three graphics output options: D-Sub, DVI-D and HDMI
Supports HDMI Technology with max. Auflösung up to 1920x1200 @ 60Hz
Supports DVI with max. Auflösung up to 1920x1200 @ 60Hz
Supports D-Sub with max. Auflösung up to 2048x1536 @ 75Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)
Supports HDCP function with DVI and HDMI ports
Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI and HDMI ports
*Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® Vista™ and Windows® 7.
**Intel® InTru™ 3D is only supported under Windows® 7 and Windows® 7 x64.
Audio
7.1 CH HD Audio with Schutz von Inhalten (Realtek ALC892 Audio Codec)
Premium Blu-ray audio support
LAN
PCIE x1 Gigabit LAN 10/100/1000 Mb/s
Realtek RTL8111E
Supports Wake-On-LAN, LAN Cable Detection, Energy Efficient Ethernet 802.3az, PXE
Steckplätze
1 x PCI Express 3.0 x16 slot (PCIE3 @ x16 mode)
3 x PCI Express 2.0 x1 slots
2 x PCI slots
*PCIe Gen3 is supported on 3rd Generation of Intel® Core™ i5 and Core™ i7 CPUs.
Interne Anschlüsse
4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10, RAID 5, Intel® Rapid Storage and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug functions
2 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10, RAID 5, Intel® Rapid Storage and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug functions
1 x IR header
1 x CIR header
1 x COM1 port header
1 x HDMI_SPDIF header
1 x Front Panel connector
1 x Power LED header
1 x 4-pin CPU FAN connector
1 x 3-pin CPU FAN connector
1 x 3-pin Power FAN connector
1 x 4-pin Chassis FAN connector
1 x 3-pin Chassis FAN connector
1 x 24 pin ATX power connector
1 x 8 pin 12V power connector
1 x Front HD Audio Panel connector
1 x Speaker connector
1 x Clear CMOS Jumper
3 x USB 2.0 headers (supports additional 6 x USB 2.0 ports)
I/O Panel Blende
1 x PS/2 Keyboard Port
1 x D-Sub Port
1 x DVI-D Port
1 x HDMI Port
1 x Optical SPDIF Out Port
4 x USB 2.0 Ports
2 x USB 3.1 Gen1 Ports (Etron EJ168A)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
1 x HD Audio Jack (Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone)
Einzigartige Features
ASRock Extreme Tuning Utility (AXTU), Instant Boot, Sofort-Flash, APP Charger, XFast USB, XFast LAN, Lucid Virtu, On/Off Play Technology, Dehumidifier Function
Hybrid Booster CPU Frequency Stepless Control, ASRock U-COP, Boot Failure Guard (B.F.G.)
Combo Cooler Option (C.C.O.)
Good Night LED
Hardware Überwachung
CPU Temperature Sensing
Chassis Temperature Sensing
CPU, Chassis, Power Fan Tachometer
CPU, Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
CPU, Chassis Fan multi-speed control
Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
BIOS
64Mb AMI UEFI Legal BIOS with GUI support
Supports "Plug and Play", jumperfree
ACPI 1.1 Compliance Wake Up Events
SMBIOS 2.3.1 Support
CPU Core, IGPU, DRAM, PCH, CPU PLL, VTT, VCCSA Voltage Multi-adjustment
Formfaktor
ATX Form Factor; 12.0-in x 7.5-in, ca. 30.5 cm x 19.1 cm
Premium Gold Capacitor design (100% Japan made high quality conductive polymer capacitors)
Betriebssystem
Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant
Zertifizierungen
FCC, CE
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
Herstellerangabe / Produktsicherheit
Alle unsere hier angebotenen Produkte sind erstmalig vor dem 13.12.2024 in der EU in Verkehr gebracht worden und entsprechen den aktuellen Sicherheitsstandards.
Sie unterliegen nicht den neuen Anforderungen der GPSR.
