Fujitsu D2990-A11 GS3 Mainboard +Blende Sockel 1155 Intel H61 Esprimo P400* m738

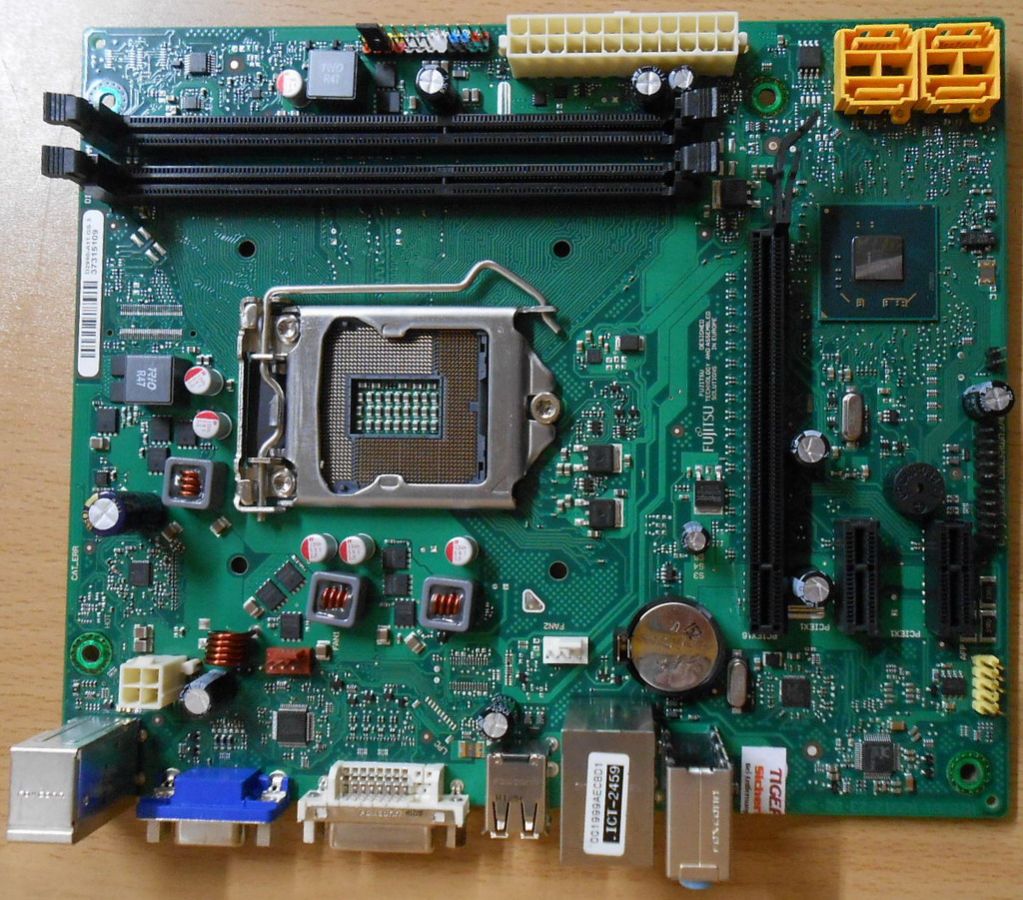

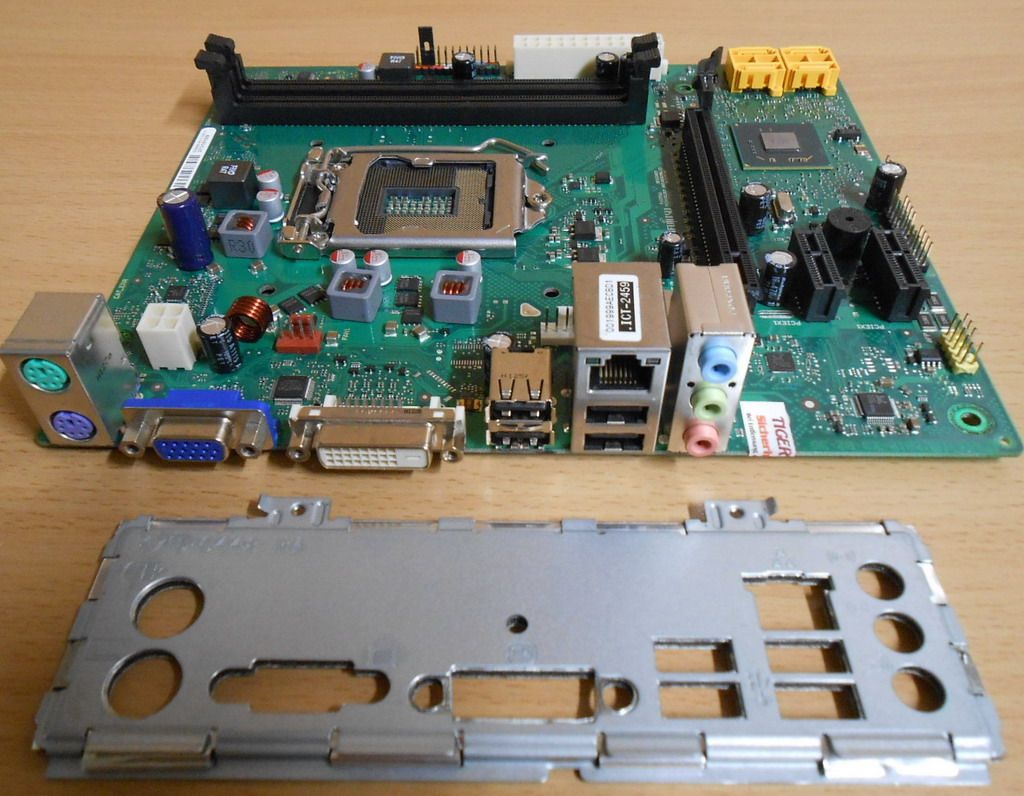

Fujitsu D2990-A11 GS3 Mainboard + Blende

Sockel 1155 Intel H61 Esprimo P400

Technische Daten

Chipset

Intel® H61 Express Chipset

Memory

2 x DIMM Sockets (1.5V), 1GB - 16GB, Single Channel or Dual Channel DDR3-1066 (CL7) / DDR3-1333 (CL9) SDRAM, unbuffered, no ECC

CPU support

Intel® Core™ i7 – 2xxx processor series

Intel® Core™ i5 – 2xxx processor series

Intel® Core™ i3 – 2xxx processor series

Compatible with Intel® FMB11B (65W) and FMB11A (95W), LGA1155.

Prepared for future LGA1155 processors.

(For details on supported processors please refer to the Fujitsu website)

Graphics

Intel® HD graphics 2000 (integrated in the processor), DirectX 10.1 compliant, Dynamic Video Memory (DVM), upgradeable with PCI Express x16 graphics card

DVI & VGA ports

Audio

Realtek ALC 663, 5.1-channel, High Definition Audio Codec

Stereo Audio / 5.1 Multichannel Audio / Buzzer

LAN

Realtek RTL8111E Ethernet Controller with 10/100/1000 MBit/s, Wake-on-LAN (WoL) by interesting Packets, Link Status Change and Magic Packet™, PXE support

Features

FAN controlled CPU / AUX1

TEMP monitored CPU / ONB

External Connectors

1 x PS/2 Maus

1 x PS/2 Tastatur

1 x LAN (RJ-45)

1 x VGA

1 x DVI

4 x USB2.0

Audio Mic. In / Line in / Line out (or driver configuration)

Internal Connectors

2 x DIMM Sockets (DDR3 1333)

1 x PCI Express x16 Slot (Gen2)

2 x PCI Express x1 Slot (Gen2)

4 x SATA-300

1 x Frontpanel Audio (9-Pin, HD Audio)

4 x USB 2.0 ports via header

CPU & AUX1 Fan Connectors

1 x Power 24 pin (BTX)

1 x 4 pin (12V processor supply)

Power Specification

ATX- 24 Pin or ATX- 20 Pin Power Supply required

Support for Soft-Off Power Supplies

5V and 3.3V Supply Voltage on PCI Slots (PCI Rev. 2.3)

3.3V Auxiliary Supply Voltage on PCI Slots (Wake-Up Function)

On board CPU Voltage Regulator, 5V / 2.5A Auxiliary Power

required for USB Wake-Up from Save-to-RAM, Save-to-Disk

AMI UEFI BIOS

modified and adapted by Fujitsu Technology Solutions; Recovery BIOS, SM-BIOS (DMI), BIOS and CPU Microcode Update, Quick Boot, Logo Boot, Quiet Boot, Plug & Play, Automatic DRAM and PCI Configuration, BIOS Support for S.M.A.R.T., Advanced Power Management, ACPI S3/S4, Wake on time from S5

Board size       Ultra small μATX: 218 x 183mm

Security Features

Recovery BIOS, System and BIOS Password, Boot Sequence Control, USB- Port Access Protection, Boot Sector Virus Warning, Write Protection for Flash BIOS.

Special Features

Silent Fan LT  Independent temperature related processor fan and system fan control

System Guard  View Silent Fan LT features

Silent Drives  Noise reduction for optical and hard disk drives

Recovery BIOS Restores a corrupted BIOS

Desk Update  Simple driver update with Driver&Utilities DVD

Multi Boot  Comfortable boot from any boot device

HDD Password Access protection for disk drives

Logo Boot Option / Intel On Screen Branding

Lieferumfang

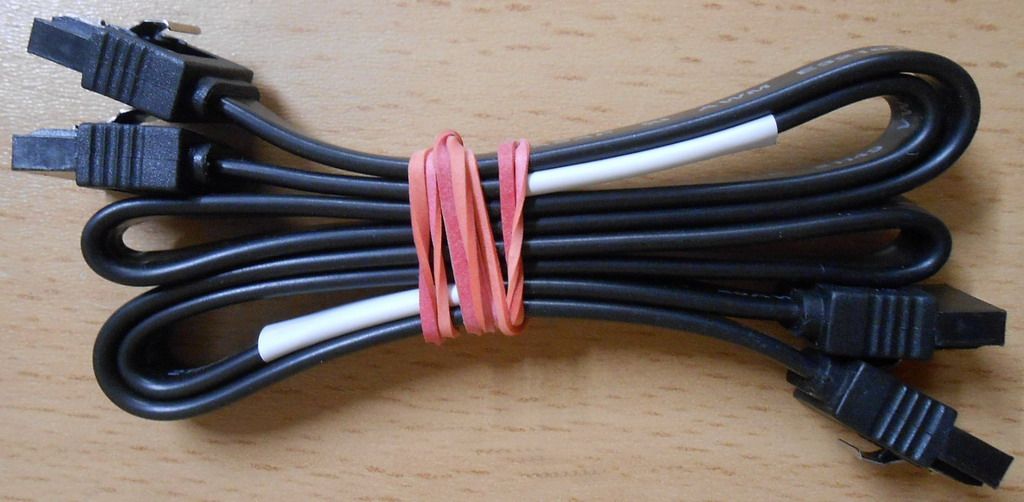

Das Mainboard, Blende und 2x schwarze SATA Datenkabel - ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
