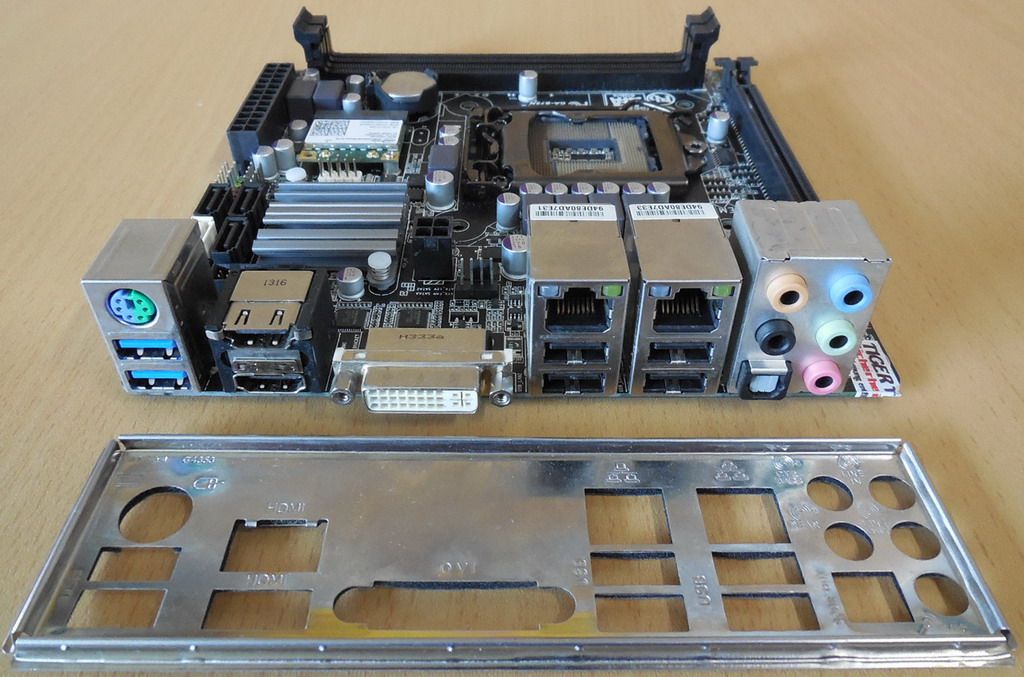

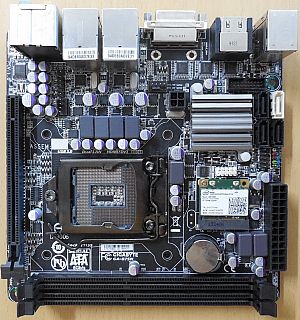

Gigabyte GA-B75N Rev1.0 Mini ITX Mainboard +Blende Intel B75 Sockel 1155* m1087

Produktbeschreibung

Gigabyte GA-B75N Rev 1.0 Mini ITX Mainboard + Blende Intel B75 Sockel 1155 DDR3 USB3.0 SATA III PCIe 3.0 mit WLAN

Technische Daten

Prozessor

Support for Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors / Intel® Pentium® processors / Intel® Celeron® processors in the LGA1155 package

L3 cache varies with CPU

(Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.)

Chipsatz

Intel® B75 Express Chipset

Arbeitsspeicher

2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory

Dual channel memory architecture

Support for DDR3 2200(OC)/1600*/1333/1066/800 MHz memory modules

Support for non-ECC memory modules

Support for Extreme Memory Profile (XMP*) memory modules

* To support DDR3 1600 MHz or XMP, you must install an Intel® 22nm (Ivy Bridge) CPU that supports DDR3 1600 MHz

** Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB

*** Please refer "Memory Support List" for more information

Onboard Grafik

1 x DVI-I port, supporting a maximum resolution of 1920x1200

2 x HDMI ports, supporting a maximum resolution of 1920x1200

Audio

Realtek ALC892 High Definition Audio codec

2/4/5.1/7.1-channel

Support for S/PDIF Out

LAN

2 x Realtek GbE LAN chips (10/100/1000 Mbit)

WLAN

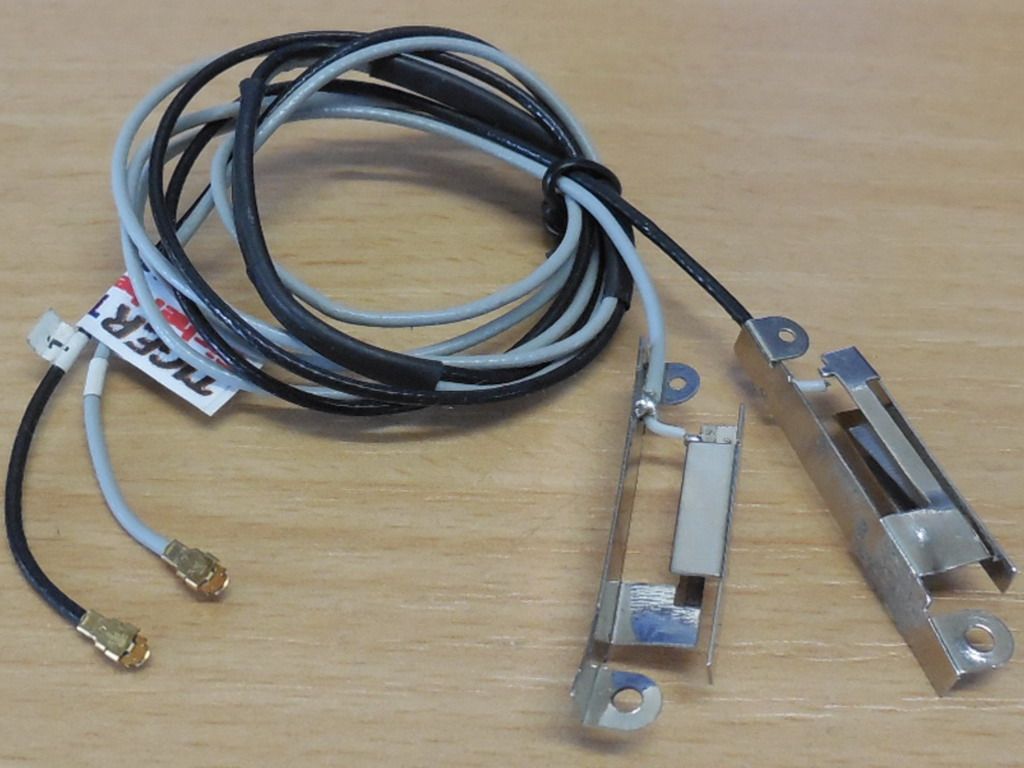

Intel Centrino Wireless-N 130 Modul (130BNHMW) mit Antennen

Wi-Fi zertifiziert 802.11b/g/n

Max. Geschwindigkeit 150 Mbps

Erweiterungssteckplätze

1 x PCI Express x16 slot, running at x16 (conforms to PCI Express 3.0 standard)

1 x Mini PCI Express x1 slot (For Mini-PCIE card / no mSATA card!)

Storage Interface

1 x SATA 6Gb/s connector (SATA3 0) supporting up to 1 SATA 6Gb/s device

3 x SATA 3Gb/s connectors (SATA2 1/2/3) supporting up to 3 SATA 3Gb/s devices

USB

Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)

Up to 6 USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Interne I/O Anschlüsse

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

1 x SATA 6Gb/s connector

3 x SATA 3Gb/s connectors

1 x Mini-PCIE slot (WLAN Modul eingebaut)

1 x 4-pin CPU fan header

1 x 4-pin system fan header

1 x front panel header

1 x front panel audio header

1 x USB 3.0/2.0 header

1 x USB 2.0/1.1 header

1 x S/PDIF Out header

1 x serial port header

1 x Clear CMOS jumper

Rückseite I/O Panel

1 x PS/2 keyboard/mouse port

1 x optical S/PDIF Out connector

1 x DVI-I port

2 x HDMI ports

4 x USB 2.0/1.1 ports

2 x USB 3.0/2.0 ports

2 x RJ-45 ports

5 x audio jacks (Center/Subwoofer Speaker/Rear Speaker/Line In/Line Out/Microphone)

I/O

iTE IT8728F chip

H/W Überwachung

System voltage detection

CPU/System temperature detection

CPU/System fan speed detection

CPU/system fan speed control (Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.)

BIOS

2 x 64 Mbit flash

Use of licensed AMI EFI BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Einzigartige Funktionen

Support for @BIOS; Q-Flash; Xpress Install; EasyTune (Available functions in EasyTune may differ by motherboard model); Auto Green; ON/OFF Charge; EZ Setup; Q-Share
