Gigabyte GA-H61M-S2PV Rev 2.1 Mainboard Sockel 1155 DDR3 DVI PCIe x16 * m460

Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package L3 cache varies with CPU

(Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.)

Chipsatz

Intel® H61 Express Chipset

Arbeitsspeicher

2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory

* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.

Dual channel memory architecture

Support for DDR3 1333/1066/800 MHz memory modules

Support for non-ECC memory modules

Support for Extreme Memory Profile (XMP) memory modules

* To support XMP memory, you must install an Intel 22nm (Ivy Bridge) CPU.

(Please refer "Memory Support List" for more information.)

Onboard Grafik

Integrated Graphics Processor:

1 x D-Sub port

1 x DVI-D port, supporting a maximum resolution of 1920x1200

* The DVI-D port does not support D-Sub connection by adapter.

Audio

Realtek ALC887 audio codec

High Definition Audio

2/4/5.1/7.1-channel

* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

LAN

1 x Realtek 8111F chip (10/100/1000 Mbit)

Erweiterungssteckplätze

1 x PCI Express x16 slot, running at x16

 (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)

* PCIE Gen.3 is dependent on CPU and expansion card compatibility.

1 x PCI Express x1 slot

(The PCI Express x1 slot conforms to PCI Express 2.0 standard.)

2 x PCI slots

Storage Interface

Chipset:

4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices

USB

Chipset:

Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Interne I/O Anschlüsse

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

4 x SATA 3Gb/s connectors

1 x CPU fan header

1 x system fan header

1 x front panel header

1 x front panel audio header

2 x USB 2.0/1.1 headers

1 x serial port header

1 x Clear CMOS jumper

Rückseite I/O Panel

1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x parallel port

1 x D-Sub port

1 x DVI-D port

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks (Line In/Line Out/Microphone)

I/O

iTE IT8728 chip

H/W Überwachung

System voltage detection

CPU/System temperature detection

CPU/System fan speed detection

CPU overheating warning

CPU/System fan fail warning

CPU/System fan speed control

* Whether the CPU/System fan speed control function is supported will depend on the CPU/System cooler you install.

BIOS

2 x 32 Mbit flash

Use of licensed AMI EFI BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a

Einzigartige Funktionen

Support for @BIOS, Support for Q-Flash, Support for Xpress Recovery2, Support for ON/OFF Charge,
Support for EasyTune

* Available functions in EasyTune may differ by motherboard model.

Betriebssystem

Support for Microsoft® Windows® 8/7/Vista/XP

Form Factor

Micro ATX Form Factor; 24.4cm x 20cm

Anderes

Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.

Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

Lieferumfang

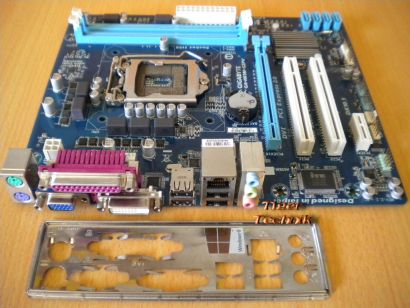

Das Mainboard mit Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
