Gigabyte GA-H67M-D2-B3 Rev1.1 Mainboard Intel H67 Sockel 1155 DDR3 VGA DVI*m1003

Gigabyte GA-H67M-D2-B3 Rev 1.1 Mainboard + Blende Intel H67 Sockel 1155 DDR3 VGA DVI

Technische Daten

Prozessor

Support for Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors / Intel® Pentium® processors / Intel® Celeron® processors in the LGA1155 package

L3 cache varies with CPU

(Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.)

Chipsatz

Intel® H67 Express Chipset

Arbeitsspeicher

2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory

Dual channel memory architecture

Support for DDR3 1333/1066/800 MHz memory modules

Support for non-ECC memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.

Onboard Grafik Anschlüsse

1 x D-Sub port

1 x DVI-D port, supporting a maximum resolution of 1920x1200

* The DVI-D port does not support D-Sub connection by adapter.

Audio

Realtek ALC889 codec

High Definition Audio

2/4/5.1/7.1-channel

* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

LAN

1 x Realtek RTL8111E chip (10/100/1000 Mbit)

Erweiterungssteckplätze

1 x PCI Express x16 slot, running at x16 (PCIEX16)

1 x PCI Express x16 slot, running at x4 (PCIEX4)

2 x PCI Express x1 slots

(All PCI Express slots conform to PCI Express 2.0 standard.)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Multi-Graphics Technology

Support for ATI CrossFireX™ technology

* The PCIEX16 slot operates at up to x4 mode when ATI CrossFireX™ is enabled.

Storage Interface

2 x SATA 6Gb/s connectors (SATA3_0, SATA3_1) supporting up to 2 SATA 6Gb/s devices

4 x SATA 3Gb/s connectors (SATA2_2~SATA2_5) supporting up to 4 SATA 3Gb/s devices

Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10

* When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.

USB

Up to 14 USB 2.0/1.1 ports (8 on the back panel, 6 via the USB brackets connected to the internal USB headers)

Interne I/O Anschlüsse

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

2 x SATA 6Gb/s connectors

4 x SATA 3Gb/s connectors

1 x 4-pin CPU fan header

1 x 4-pin System fan header

1 x Front Panel header

1 x front panel audio header

3 x USB 2.0/1.1 headers

2 x serial port headers

1 x clearing CMOS jumper

Rückseite I/O Panel

1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x D-Sub port

1 x DVI-D port

8 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks (Line In/Line Out/Microphone)

I/O

iTE IT8728 chip

H/W Überwachung

System voltage detection

CPU/System temperature detection

CPU/System fan speed detection

CPU overheating warning

CPU/System fan fail warning

CPU/System fan speed control

*Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.

BIOS

2 x 32 Mbit flash

Use of licensed Award BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Einzigartige Funktionen

Support for @BIOS; Support for Q-Flash; Support for Xpress BIOS Rescue; Support for Download Center; Support for Xpress Install; Support for Xpress Recovery2; Support for EasyTune (* Available functions in EasyTune may differ by motherboard model.); Support for Smart 6™; Support for Auto Green; Support for eXtreme Hard Drive (X.H.D); Support for ON/OFF Charge; Support for Cloud OC; Support for Q-Share

Betriebssystem

Support for Microsoft® Windows® 8/7/Vista/XP

Form Factor

Micro ATX Form Factor; 24.4cm x 21.0cm

Lieferumfang

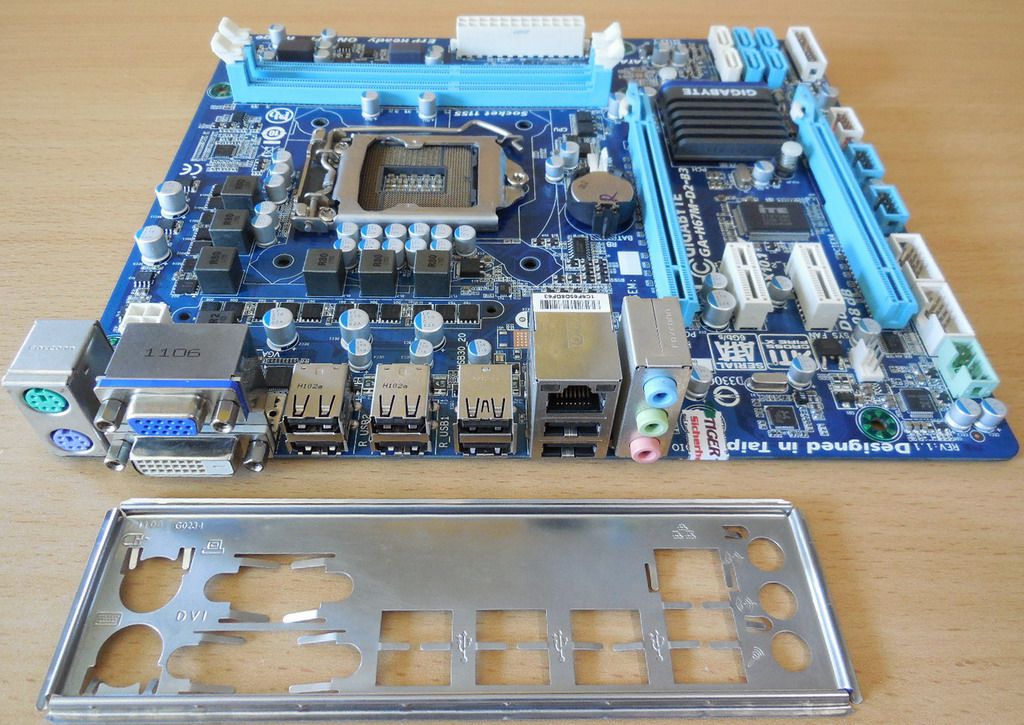

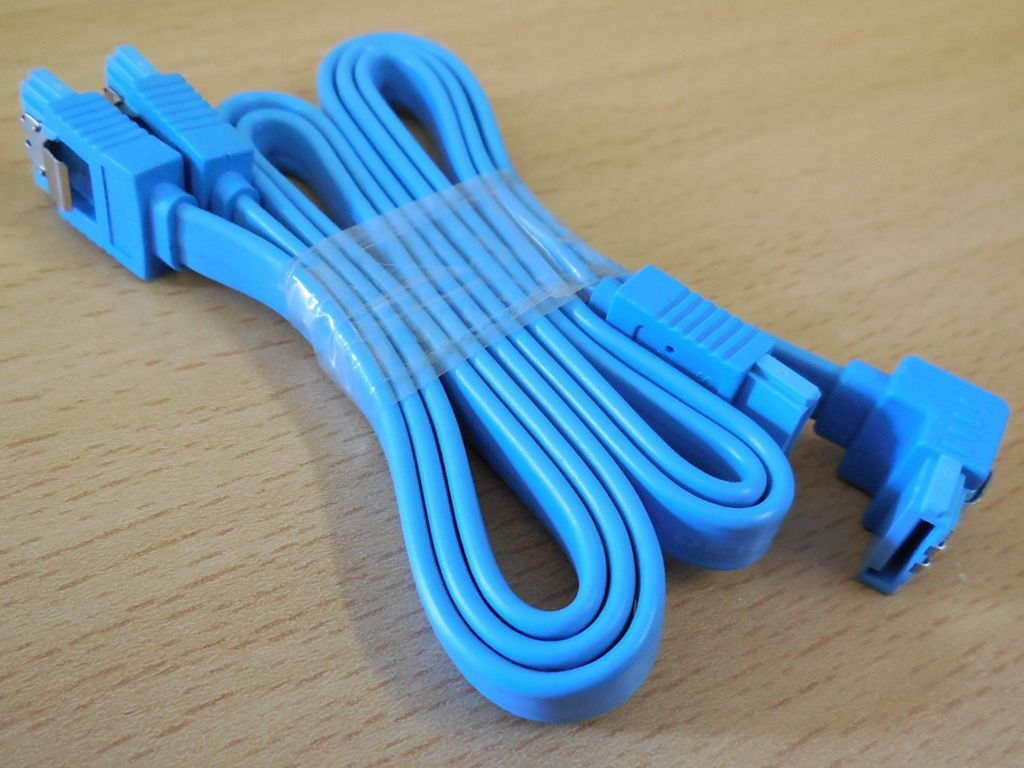

Das Mainboard inkl. Blende und 2x SATA Kabel * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
