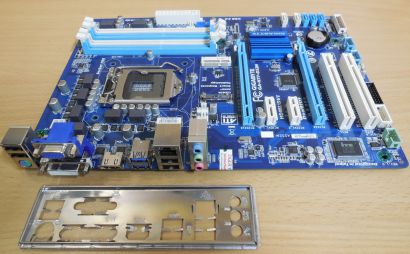

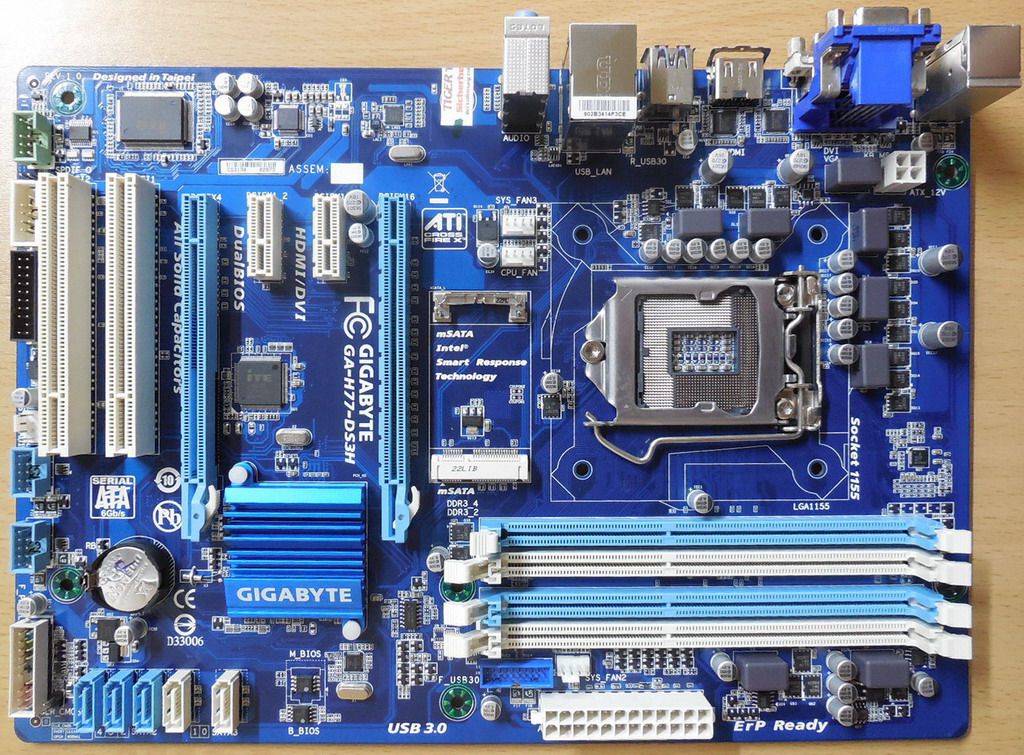

Gigabyte GA-H77-DS3H Rev 1.0 Mainboard + Blende Intel H77 Sockel 1155 DDR3* m798

Gigabyte GA-H77-DS3H Rev 1.0 Mainboard + Blende Intel H77 Sockel 1155 DDR3

Technische Daten

Prozessor

Support for Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors / Intel® Pentium® processors / Intel® Celeron® processors in the LGA1155 package

L3 cache varies with CPU

(Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.)

Chipsatz

Intel® H77 Express Chipset

Arbeitsspeicher

4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory

Dual channel memory architecture

Support for DDR3 2200(OC)/1600/1333/1066 MHz memory modules

Support for non-ECC memory modules

Support for Extreme Memory Profile (XMP) memory modules

* To support XMP memory, you must install an Intel 22nm (Ivy Bridge) CPU.

* To support DDR3 1600 MHz, you must install an Intel 22nm CPU.

(Please refer "Memory Support List" for more information.)

* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.

Onboard Grafik

1 x D-Sub port

1 x DVI-D port, supporting a maximum resolution of 1920x1200

* The DVI-D port does not support D-Sub connection by adapter.

1 x HDMI port, supporting a maximum resolution of 1920x1200

Multi-Graphics Technology

Support for AMD CrossFireX™ technology

Audio

Realtek ALC887 codec

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

LAN

1 x Atheros GbE LAN chip (10/100/1000 Mbit)

Erweiterungssteckplätze

1 x PCI Express x16 slot, running at x16 (PCIEX16 conforms to PCI Express 3.0 standard.)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

* The PCI Express x16 slot supports up to PCI Express 2.0 standard when an Intel 32nm (Sandy Bridge) CPU is installed.

1 x PCI Express x16 slot, running at x4 (PCIEX4 conforms to PCI Express 2.0 standard.)

2 x PCI Express x1 slot (Slots conform to PCI Express 2.0 standard.)

2 x PCI Slots

Storage Interface

2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices

3 x SATA 3Gb/s connectors (SATA2 2/3/4) supporting up to 3 SATA 3Gb/s devices

1 x mSATA connector

Support for RAID 0, RAID 1, RAID 5, and RAID 10

* When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.

USB

Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)

* In Windows XP, the Intel USB 3.0 ports can support up to USB 2.0 transfer speed.

Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Interne I/O Anschlüsse

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

2 x SATA 6Gb/s connectors

3 x SATA 3Gb/s connectors

1 x mSATA connector

1 x CPU fan header

3 x system fan headers

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

2 x USB 2.0/1.1 headers

1 x USB 3.0/2.0 header

1 x clearing CMOS jumper

1 x serial port header

1 x Trusted Platform Module (TPM) header

Rückseite I/O Panel

1 x PS/2 keyboard/mouse port

1 x D-Sub port

1 x DVI-D port

1 x HDMI port

4 x USB 2.0/1.1 ports

2 x USB 3.0/2.0 ports

1 x RJ-45 port

3 x audio jacks (Line In/Line Out/Microphone)

I/O

iTE I/O Controller chip

H/W Überwachung

System voltage detection

CPU/System temperature detection

CPU/System/Power fan speed detection

CPU overheating warning

CPU/System fan fail warning

CPU/System fan speed control

*Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.

BIOS

2 x 64 Mbit flash

Use of licensed AMI EFI BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Einzigartige Funktionen

Support for @BIOS; Support for Q-Flash; Support for Xpress Install; Support for Xpress Recovery2; Support for eXtreme Hard Drive (X.H.D); Support for Auto Green; Support for ON/OFF Charge; Support for Q-Share; Support for LAN Optimizer (Intelligent optimization network management tool)

Betriebssystem

Support for Microsoft® Windows® 8/7/Vista/XP

Form Factor

ATX Form Factor; 30.5cm x 21.5cm

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
