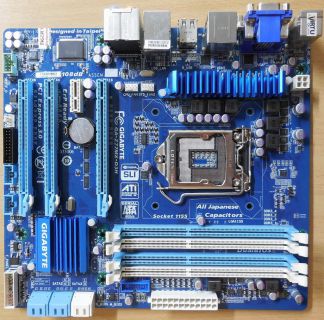

Gigabyte GA-Z77MX-D3H Rev 1.0 Mainboard +Blende Intel Z77 Sockel 1155 DDR3* m876

Gigabyte GA-Z77MX-D3H Rev 1.0 Mainboard + Blende Intel Z77 Sockel 1155 DDR3

Technische Daten

Prozessor

Support for Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors / Intel® Pentium® processors / Intel® Celeron® processors in the LGA1155 package

L3 cache varies with CPU

(Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.)

Chipsatz

Intel® Z77 Express Chipset

Arbeitsspeicher

4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory

Dual channel memory architecture

Support for DDR3 2800(OC)/1600/1333/1066 MHz memory modules

Support for non-ECC memory modules

Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

*Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.

Onboard Grafik

1 x D-Sub port

1 x DVI-D port, supporting a maximum resolution of 1920x1200 (does not support D-Sub connection by adapter)

1 x HDMI port, supporting a maximum resolution of 1920x1200

Audio

VIA VT2021 codec

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

LAN

Atheros GbE LAN chip (10/100/1000 Mbit)

Erweiterungssteckplätze

1 x PCI Express x16 slot, running at x16 (PCIEX16 capable of PCI Express 3.0)

*For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

*The PCI Express x16 slots support up to PCI Express 2.0 standard when an Intel 32nm (Sandy Bridge) CPU is installed.

1 x PCI Express x16 slot, running at x8 (PCIEX8)

*The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode.

1 x PCI Express x16 slot, running at x4 (PCI Express 2.0 standard)

1 x PCI Express x1 slot (PCI Express 2.0 standard)

Multi-Graphics Technology

Support for 2-Way AMD CrossFire™/NVIDIA SLI technology (PCIEX16/PCIEX8)

Storage Interface

2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices

4 x SATA 3Gb/s connectors (SATA2 2/3/4/5) supporting up to 4 SATA 3Gb/s devices

Support for RAID 0, RAID 1, RAID 5, and RAID 10

*When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.

USB

Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers)

*In Windows XP, the Intel USB 3.0 ports can support up to USB 2.0 transfer speed.

Up to 10 USB 2.0/1.1 ports (6 ports on the back panel, 4 ports available through the internal USB headers)

Interne I/O Anschlüsse

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

2 x SATA 6Gb/s connectors

4 x SATA 3Gb/s connectors

1 x CPU fan header

2 x system fan headers

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB 3.0/2.0 header

2 x USB 2.0/1.1 headers

1 x Clear CMOS jumper

1 x Trusted Platform Module (TPM) header

Rückseite I/O Panel

1 x PS/2 keyboard/mouse port

1 x D-Sub port

1 x DVI-D port

1 x HDMI port

2 x USB 3.0/2.0 ports

6 x USB 2.0/1.1 ports

1 x RJ-45 port

1 x optical S/PDIF Out connector

5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)

I/O

iTE I/O Controller Chip

H/W Überwachung

System voltage detection

CPU/System temperature detection

CPU/System fan speed detection

CPU overheating warning

CPU/System fan fail warning

CPU/System fan speed control

*Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.

BIOS

2 x 64 Mbit flash

Use of licensed AMI EFI BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Einzigartige Funktionen

Support for @BIOS; Support for Q-Flash; Support for Xpress Install; Support for Xpress Recovery2; Support for eXtreme Hard Drive (X.H.D); Support for Auto Green; Support for ON/OFF Charge; Support for Q-Share; Support for 3D Power; Support for LAN Optimizer (Intelligent optimization network management tool)

Form Factor

Micro ATX Form Factor; 24.4cm x 24.4cm

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
