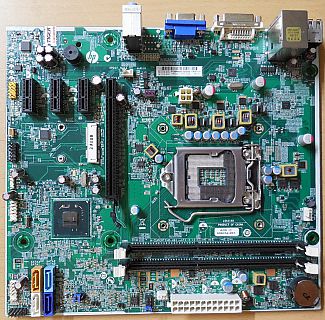

HP Pro 3500 MT Cupertino H61 v3.10 Mainboard 696234 001 Rev0K Sockel 1155* m1013

HP Pro 3500 MT H-Cupertino-H61-µATX:3.10 Mainboard + Blende 696234-001 Rev. 0K Sockel 1155

Technische Daten

Hersteller       Foxconn für HP (Hewlett Packard)

Model       H-Cupertino-H61-uATX Rev 3.10 AS# 696234-001 Rev. 0K SP# 701413-001

Geeignet für       HP Pro 3500 MT oder baugleich

CPU-Unterstützung       Core i3-2xxx/T; Core i3-2xxx; Core i5-2xxx; Core i7-2xxx mit max. 65W TDP

Sockel       Intel 1155

Chipset       Intel H61

FSB       5 GT/s (DMI bus)

RAM       2x 240-pin DDR3 DIMM Sockets (1.5V), Single Channel memory architecture; DDR3 1333(PC3-10600)/1066(PC3-8500) SDRAM, non-ECC unbuffered; max. 8 GB Hauptspeicher

Video       Intel Graphics Media Accelerator HD Integrated graphics; Use of both the DVI and the VGA ports at the same time is supported. Either integrated graphics or the PCI Express x16 slot are usable at one time; they are not usable concurrently.

LAN       Realtek RTL8171E GbE 10/100/1000 Mb/s Netzwerkverbindung

Sound       Realtek ALC656 High Definition 5.1 channel Audio Codec, Audio jack sensing

USB       max. 10x USB2.0 (4 extern, 6 intern)

Erweiterungssteckplätze       1x PCIe Mini Card x1; 3x PCIe x1; 1x PCIe x16

Intern       Echtzeituhr/Kalender mit Batteriepufferung

4 x SATA2 (3GBit/s) Ports

1 x 4-pin CPU FAN Connector

1 x 3-pin System FAN Connector

1 x BIOS Recovery Connector

1 x One touch reset Connector

1 x One touch recovery Connector

1 x Hood Sense Connector

1 x Flash Override Jumper

1 x CMOS Jumper

1 x Password Jumper

1 x Audio Front Panel Connector

3 x USB2.0 Connectoren (F_USB1 + F_USB2 + F_USB3)

1 x Buzzer

1 x mini LED Connector

1 x mini LED Connector

1 x LPC Debug Connector

1 x SPDIF Out Connector

1 x 24-pin ATX Power Connector

1 x 4-pin 12V Processor Power Supply Connector

Externe Anschlüsse       1x VGA Sub-D; 1x DVI-D, 1x LAN RJ-45, 4x USB2.0, 1x Line-In, 1x Line-Out, 1x Microphone

Form Factor       uATX 24.4 cm (9.6 in) x 22.0 cm (8.7 in)

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
