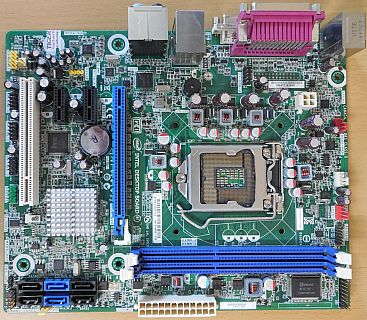

Intel DH61BE Mainboard +Blende H61 Sockel 1155 DDR3 PCIe VGA DVI-D SATA* m1098

Intel DH61BE Mainboard + Blende Intel H61 Sockel 1155 DDR3 PCIe VGA DVI-D SATA

Technische Daten

Hersteller       Intel

Model       DH61BE

Weitere Bezeichnungen       AA G14062-206

CPU

Intel® Core™ i7, Intel® Core™ i5, Intel® Core™ i3 and Intel® Pentium processors in an LGA1155 package

Integrated graphics processing (processors with Intel Technology)

External graphics interface controller

Integrated memory controller

Supports Intel® 64 architecture

Chipsatz       Intel® H61 Express Chipset consisting of the Intel® 82H61 Platform Controller Hub (PCH)

RAM​​​​​​​       2 x 240-pin DIMM Sockets DDR3, max. 16GB, Dual Channel, 1333/1066/800MHz, non-ECC

(For details on recommended RAM, please refer to the Intel website)

VGA       Intel® HD Graphics controller (depends on installed CPU), upgradeable with PCI Express x16 2.0 graphics card

LAN       Intel® 82579V 10/100/1000 MBit/s GbE LAN Controller

Audio       Intel® High Definition Audio - Realtek ALC892 Audio Codec

Erweiterungssteckplätze       1 x PCI-E x16 2.0; 2 x PCI-E x1 2.0; 1 x PCI

Intern       Echtzeituhr/Kalender mit Batteriepufferung

2 x SATA3 Ports bis zu 6GBit/s (blue)

4 x SATA2 Ports bis zu 3GBit/s (black)

1 x 4-pin CPU FAN Connector

1 x 4-pin Rear FAN Connector

1 x 4-pin Front FAN Connector

1 x Front Audio Panel Connector

1 x COM1 Connector

1 x BIOS setup configuration jumper block

4 x USB2.0-Anschluss Connectoren für insgesamt 8 weitere USB2.0 Ports

1 x Front Panel Connector

1 x Front Panel Power LED Header

1 x Intel® ME Reset Header

1 x 24-pin Main Power Connector

1 x 4-pin 12V CPU Power Connector

1 x LPC_Debug Connector

1 x Trusted Platform Module (TPM) Header

1 x Internal mono speaker Header

1 x Chassis intrusion Header

1 x S/PDIF Header

1 x Buzzer

Externe Anschlüsse

1 x DVI-D

1 x VGA

1 x PS/2 Maus/Tastatur

1 x (RJ-45) LAN

2 x USB2.0

2 x USB3.0

1 x Parallel

5 x Audio Anschlüsse

1 x Optical S/PDIF

Hardware Monitoring

Hardware monitoring through the Nuvoton I/O controller; Voltage sense to detect out of range power supply voltages; Thermal sense to detect out of range thermal values; Three fan headers using PWM control; 4-pin headers for processor, front chassis, and rear chassis fans; 4-wire and 3-wire (linear) fan speed control support for front and rear chassis fans; Support for Platform Environmental Control Interface (PECI)

Instantly Available PC Technology

Support for PCI Local Bus Specification, Revision 2.2

Support for PCI Express Base Specification, Revision 2.0

Suspend to RAM support

Wake on Conventional PCI, PCI Express, LAN, front panel, serial, USB ports, and PS/2

BIOS       Intel BIOS resident in the SPI Flash device; Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and SMBIOS

Legacy I/O Control       Nuvoton W83677HG-i I/O controller for hardware management and serial port, parallel port and PS/2 support

Formfaktor       MicroATX 9.60" x 7.80"; ca. 243.84 mm x 198.12 mm

Lieferumfang

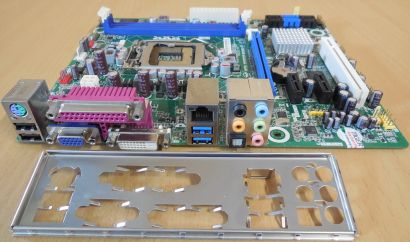

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
