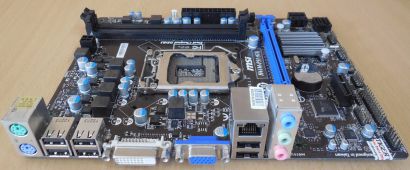

MSI MS-7788 Ver 1.0 H61M-P31 (G3) Mainboard Sockel 1155 PCIe DDR3 LAN VGA DVI

Technische Daten

CPU

3rd Gen Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors for LGA 1155 socket

Please refer to CPU Support for compatible CPU; the above description is for reference only

Chipset

Intel® H61 (B3) Chipset

Main Memory

Supports two unbuffered DIMM of 1.5 Volt DDR3 1066/1333/1600(only supported with Intel® Ivy Bridge processors) DRAM, 16GB Max.

Supports Dual channel mode

Slots

1 x PCI Express gen3 x16 slot (supports up to PCIe 3.0 x16 speed)

1 x PCI Express gen2 x1 slot

On-Board SATA

Supports 4 x SATAII ports (SATA1~4) by H61 (B3) PCH; supports up to 3Gb/s transfer speed

Audio

Chipset integrated by Realtek® ALC887: Flexible 8-channel audio with jack sensing; Compliant with Azalia 1.0 Spec; Meet Microsoft Vista Premium spec

Gigabit LAN

Supports 10/100/1000 Fast Ethernet by Realtek 8111E

Internal I/O Connectors

1 x ATX 24-pin power connector

1 x ATX 4-pin 12V CPU power connector

1 x 4-pin CPU FAN connector

1 x 4-pin System FAN connector

1 x 3-pin System FAN connector

1 x Chassis intrusion switch connector

1 x Front panel audio connector

2 x Front panel connector

1 x Clear CMOS jumper

1 x JUSB_PW1 USB Power jumper

1 x TPM Module connector

1 x Serial port connector

1 x Parallel port connector

1 x JSPI1 connector

2 x USB 2.0 connector support additional 4 ports

4 x Serial ATA II connectors

Back Panel I/O Ports

1 x DVI-D port (can only work with CPUs with GPUs core inside)

1 x PS/2 keyboard

1 x PS/2 mouse

6 x USB 2.0 ports

1 x RJ45 LAN jack

1 x Sub-D VGA port (can only work with CPUs with GPUs core inside)

1 x 3 in 1 audio jack

BIOS

The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically

The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications

Dimension & Mounting

22.6cm(L) x 17.3cm(W); Micro-ATX Form Factor; 6 mounting holes

Lieferumfang

Nur das Mainboard * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
