MSI Z68A-GD65 G3 MS-7681 Ver4.0 Mainboard Intel Z68 Sockel 1155 DDR3 HDMI* m1032

MSI Z68A-GD65 (G3) MS-7681 Ver:4.0 Mainboard + Blende Intel Z68 Sockel 1155 DDR3 HDMI

Technische Daten

CPU

Supports Intel® Sandy Bridge processors in LGA1155 package.

Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset

Intel® Z68 (B3) Chipset

Main Memory

Supports four unbuffered DIMM of 1.5 Volt DDR3 1066/1333/1600*/2133*(OC) DRAM, 32GB Max

Supports 1GB/ 2GB/ 4GB/ 8GB DRAM size

Supports Dual channel mode

Slots

2 x PCI Express gen3 x16 slots

3 x PCIE x1 slots

2 x 32-bit v2.3 master PCI bus slots (Support 3.3v/5v PCI bus interface)

On-Board SATA

SATAII controller integrated in Intel® Z68 (B3) chipset

- Up to 3Gb/s transfer speed

- Supports four SATAII ports (SATA3~6) by Z68 (B3) PCH

SATAIII controller integrated in Intel® Z68 (B3) chipset

- Up to 6Gb/s transfer speed

- Supports two SATAIII ports (SATA1~2) by Z68 (B3) PCH

- SATA1~6 ports support RAID 0/1/5/10 mode by Intel Z68 (B3) PCH

SATAIII controller integrated in Marvell® 88SE9128 chipset

- Supports two SATA 6Gb/s ports

USB 3.0

1 x USB 3.0 internal connector by NEC® D720200

2 x USB 3.0 rear I/O ports by NEC® D720200

Audio

Chipset integrated by Realtek® ALC892

- Flexible 8-channel audio with jack sensing

- Compliant with Azalia 1.0 Spec

- Meet Microsoft Vista Premium spec

LAN

Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Realtek 8111E.

Internal I/O Connectors

1 x ATX 24-Pin power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin CPU FAN connector

1 x 4-pin System FAN connector

3 x 3-pin System FAN connectors

1 x COM1 connector

1 x Front panel audio connector

1 x JFP1 Front panel connector

1 x JFP2 Front panel connector

1 x JSPI1 Front panel connector

1 x Chassis intrusion connector

3 x USB 2.0 connectors

1 x USB 3.0 connector

4 x Serial ATAII connectors

4 x Serial ATAIII connectors

1 x Clear CMOS jumper

1 x SPDIF-out connector

1 x TPM module connector

1 x DLED3 connector

1 x Voltage Check Point FV1

1 x Power button

1 x Reset button

1 x OC Genie button

Back Panel I/O Ports

1 x PS/2 Mouse/Keyboard port

1 x Coaxial SPDIF port

1 x Optical SPDIF port

1 x Clear CMOS button

1 x RJ45 LAN Jack

4 x USB 2.0 ports

2 x USB 3.0 ports

1 x Graphics Card port

1 x DVI-D port

1 x HDMI port

1 x 6 in 1 audio jack

MSI Reminds You...

HDMI, DVI-D & Graphics Card ports can only work with CPUs with GPUs core inside.

BIOS

The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.

The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.

Dimension & Mounting

30.5cm(L) x 24.5cm(W) ATX Form Factor; 9 mounting holes

Lieferumfang

Das Mainboard inkl. Blende und Handbuch * ohne weiteres Zubehör * gebraucht *

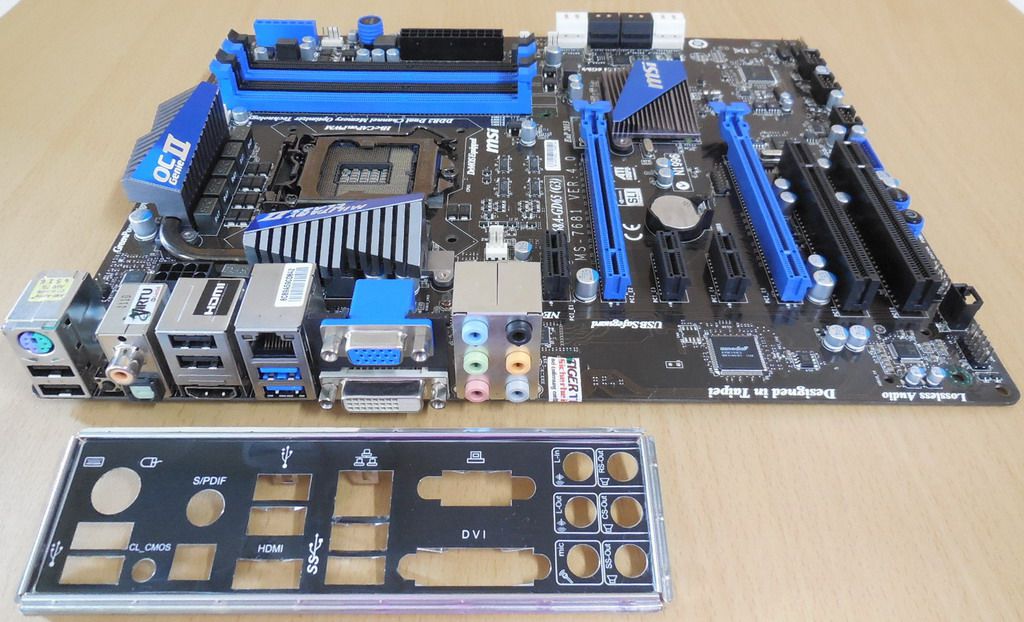

Abbildung ähnlich
