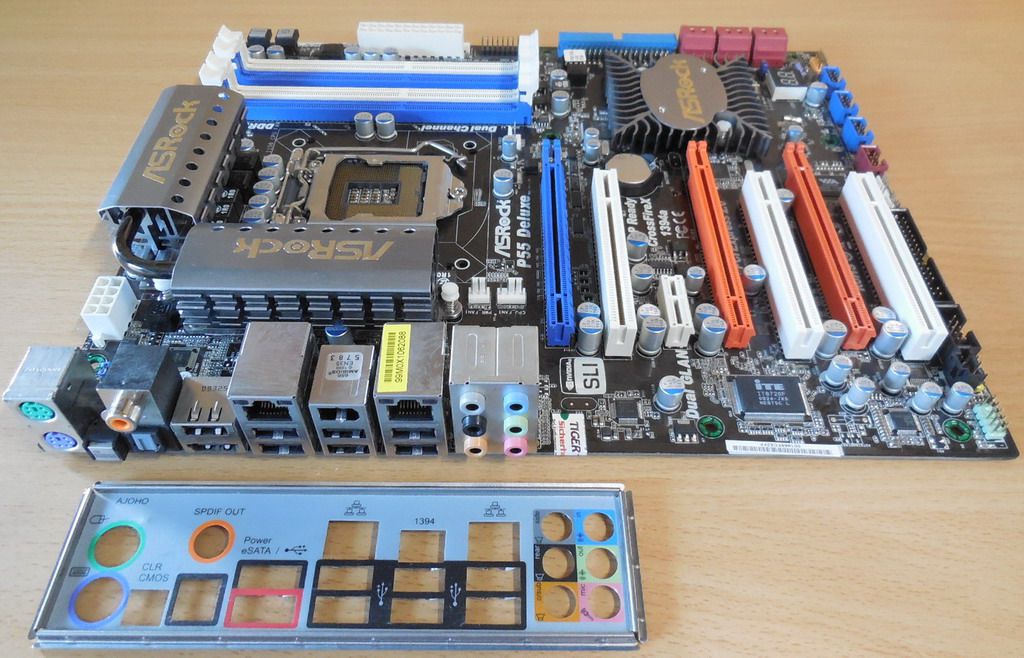

ASRock P55 Deluxe Rev1.06 Mainboard +Blende Sockel 1156 DDR3 CrossFire SLI* m936

ASRock P55 Deluxe Rev 1.06 Mainboard + Blende Sockel 1156 DDR3 CrossFire SLI

Technische Daten

CPU

Supports Intel® Core™ i7 / i5 / i3 and Pentium® G6950 Processors in LGA1156 Package

Advanced V16 + 2 Power Phase Design

Supports Intel® Turbo Boost Technology, Hyper-Threading Technology, Untied Overclocking Technology, EM64T CPU

(Go to ASRock's website for the latest CPU support list)

Chipset

Intel® P55 Chipset

Memory

4 x DDR3 DIMM slots

Supports DDR3 2600+(OC) / 2133(OC) / 1866(OC) / 1600 / 1333 / 1066 non-ECC, un-buffered memory

Max. capacity of system memory: 16GB*

Dual Channel DDR3 memory technology

Supports Intel® Extreme Memory Profile (XMP)

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

Go to ASRock's website for the latest memory support list.

Audio

7.1 CH HD Audio with Content Protection

DAC with 110dB dynamic range (ALC890 Audio Codec)

DTS (Digital Theater Systems) support

Premium Blu-ray audio support

LAN

Realtek RTL8111DL PCIe x1 Gigabit LAN 10/100/1000 Mb/s

Supports Wake-On-LAN; Dual LAN with Teaming function; PXE

Expansion Slots

2 x PCI Express 2.0 x16 slots (Single at x16 or Dual at x8/x8 mode)

1 x PCI Express 2.0 x16 slot (at x4 mode, 2.5GT/s)

1 x PCI Express 2.0 x1 slot (2.5GT/s)

3 x PCI slots

Multi-Graphics Technology

Supports ATI™ CrossFireX™, 3-Way CrossFireX™ and Quad CrossFireX™

Supports NVIDIA® SLI™ and Quad SLI™

Connector

6 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10, RAID 5 and Intel® Matrix Storage), NCQ, AHCI and Hot Plug functions

1 x ATA133 IDE connector (supports 2 x IDE devices)

1 x Floppy connector

1 x IR header

1 x COM port header

1 x HDMI_SPDIF1 header

1 x IEEE 1394 header

1 x TPM header

1 x CPU FAN connector (4-pin)

2 x Chassis FAN connectors (1 x 4-pin; 1 x 3-pin)

1 x Power FAN connector

1 x CD in header

1 x Internal Speaker header

1 x Front Audio Panel connector (HD_Audio1)

3 x USB 2.0 headers (support 6 USB 2.0 ports)

1 x 24 pin ATX power connector

1 x 8 pin 12V power connector

Back Panel Connectors

1 x PS/2 keyboard

1 x PS/2 mouse port

1 x coaxial S/PDIF Out connector

1 x optical S/PDIF Out connector

1 x Clear CMOS Switch with LED

1 x IEEE 1394 port

7 x USB 2.0 ports

1 x Powered eSATA2/USB Connector

2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)

HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Smart Switch

1 x Power Switch with LED

1 x Reset Switch with LED

1 x Clear CMOS Switch with LED

H/W Monitoring

CPU Temperature Sensing, Chassis Temperature Sensing, CPU, Chassis, Power Fan Tachometer, CPU Quiet Fan, CPU, Chassis Fan multi-speed control, Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

BIOS

16Mb AMI BIOS

AMI Legal BIOS

Supports "Plug and Play", jumperfree, I. O. T. (Intelligent Overclocking Technology), Smart BIOS

ACPI 1.1 Compliance Wake Up Events

SMBIOS 2.3.1 Support

CPU, VCCM, SB, VTT Voltage Multi-adjustment

Unique Features

ASRock OC Tuner, Intelligent Energy Saver, Instant Boot, ASRock Instant Flash, ASRock OC DNA, Combo Cooler Option (C.C.O.), Good Night LED

Hybrid Booster: CPU Frequency Stepless Control, ASRock U-COP, Boot Failure Guard (B.F.G.)

Operating System

Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant

Form Factor

ATX Form Factor; 12.0-in x 9.6-in (30.5 cm x 24.4 cm)

All Solid Capacitor design (100% Japan made high quality conductive polymer capacitors)

Certifications

FCC, CE

EuP 2.0 Ready (EuP ready power supply is required)

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
