Asus P7H55-M Rev 1.02G Mainboard +Blende Sockel 1156 DDR3 PCIe GLAN 7.1 Aud*m654

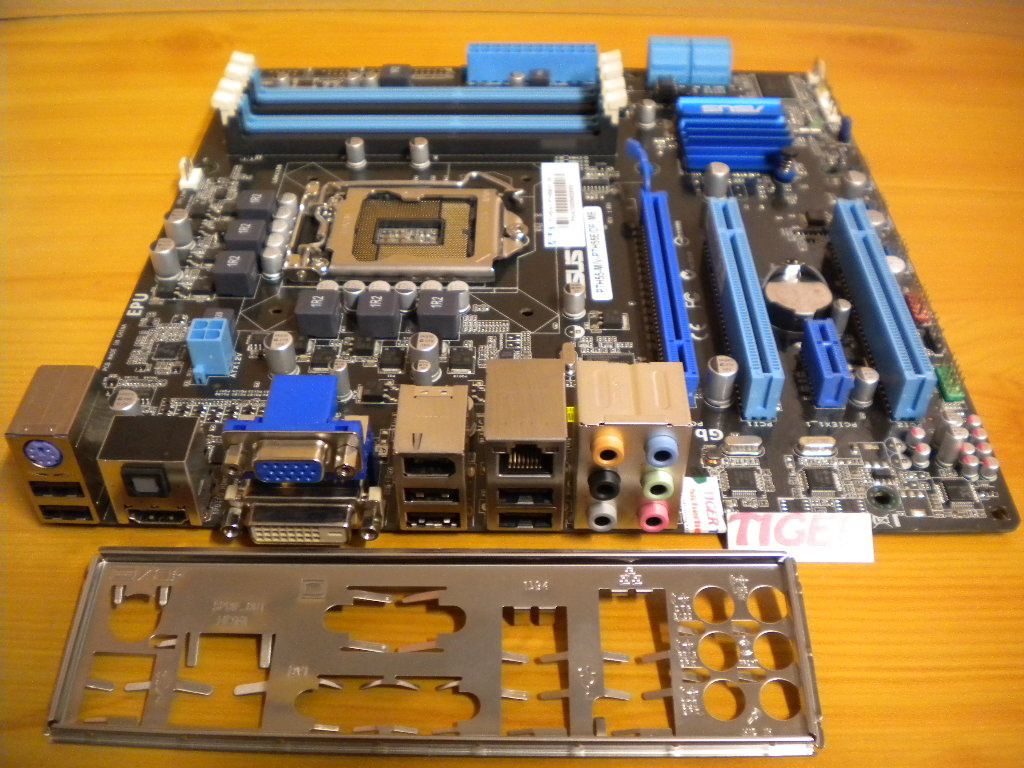

Asus P7H55-M Rev 1.02G Mainboard + Blende

Sockel 1156 DDR3 PCIe GLAN 7.1 Audio

Technische Daten

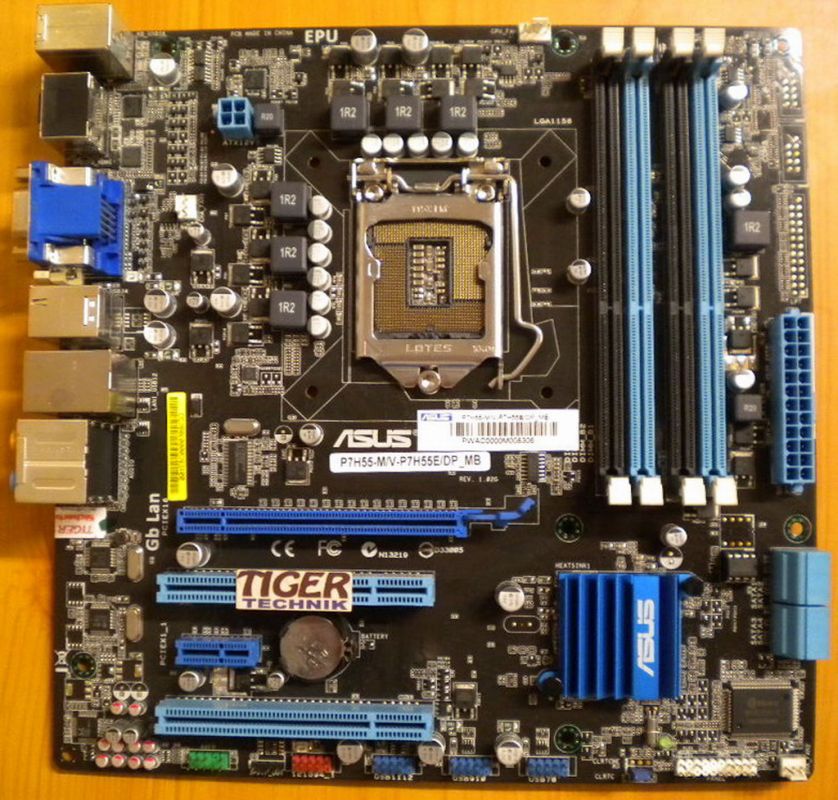

P7H55-M/V-P7H55E/DP_MB

CPU

Intel Socket 1156 Pentium® Processors Core™ i7 Processor/Core™ i5 Processor/Core™ i3 Processor

Supports Intel® Turbo Boost Technology*

* The Intel Turbo Boost Technology support depends on the CPU types.

** Refer to the Asus Website for Intel CPU support list

Chipsatz

Intel H55 Express Chipset

Memory

4 x DIMM, 16 GB, DDR3 1600/2200(O.C.)*/1800/1866/2133/1333/1066 Non-ECC,Un-buffered Memory

Dual Channel memory architecture

Supports Intel® Extreme Memory Profile (XMP)

*Hyper DIMM support is subject to the physical characteristics of individual CPUs. Some hyper DIMMs only support one DIMM per channel. Please refer to Memory QVL for details.

** To reach DDR3 2200 MHz, you are required to use with Intel Core i7/Core i5 CPU without iGPU and install a discrete graphics card. When using Intel Core i5/Core i3/ Pentium CPU with iGPU, the maximum memory speed supported is 1600+ MHz

***Refer to the Asus website or the manual for the Memory QVL(Qualified Vendors Lists).

Expansion Slots

1x PCIe 2.0 x16

1x PCIe x1

2x PCI

VGA

Multi-VGA output support: HDMI and RGB ports

Supports HDMI with max. resolution 1920x 1200 @ 60Hz

Supports RGB with max. resolution 2048x 1536 @ 75 Hz

Maximum shared memory of 1748 MB

Storage

Intel® H55 Express Chipset built-in 4 x SATA 3.0 Gb/s ports

LAN

Realtek® Gigabit LAN controller featuring AI NET 2

Audio

Realtek® ALC887 8-Channel High Definition Audio CODEC

- Support Jack-dectection, Multi-streaming,Front Panel Jack-Retasking (Only in Mic in port)

- Optical S/PDIF out ports at board & back I/O

IEEE 1394

Controller supports 1x external port + 1x internal port

USB

12 USB 2.0 ports (6 ports at mid-board, 6 ports at back panel)

ASUS AI Lifestyle Features

ASUS Exclusive Overclocking Features

- GPU Boost

- TurboV

- Turbo Key

ASUS Power Solutions

- ASUS EPU

ASUS Express Gate

ASUS Quiet Thermal Solution

- ASUS Fanless Design: Heat-sink solution

ASUS EZ DIY

- ASUS O.C. Profile

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 2

- ASUS MyLogo 2

Overclocking Features

Precision Tweaker

- vCore: Adjustable CPU voltage at 0.0125V increment 0.00625V - vIMC: Adjustable IMC voltage at 0.00625V increment

- vDRAM Bus: Adjustable DRAM voltage at 0.015V increment

- vPCH: Adjustable PCH voltage at 0.00625V increment

- vCPU_PLL: Adjustable CPU_PLL voltage at 0.05V increment

- iGPU: Adjustable iGPU voltage at 0.00625V increment

SFS (Stepless Frequency Selection)

- Internal Base Clock tuning from 80MHz up to 500MHz at 1MHz increment

- PCI Express frequency tuning from 100MHz up to 200MHz at 1MHz increment (only for Lynnfield CPU)

Overclocking Protection:

- ASUS C.P.R.(CPU Parameter Recall)

Special Features

100% All High-quality Conductive Polymer Capacitors

Back Panel I/O Ports

1 x PS/2 Keyboard/Mouse Combo port

1 x IEEE 1394a

1 x RJ45 port

6 x USB 2.0/1.1

1 x HDMI port + 1x DVI port + 1x D-SUB port

8 Channel Audio I/O + SPDIF Optical

Internal I/O Connectors

3 x USB connectors support additional 6 USB ports

1 x Front panel connector

1 x Front audio connector

1 x S/PDIF Out header

1 x IEEE1394 Firewire header

1 x 24-pin ATX Power connector

1 x 8-pin ATX 12V Power connector

1 x System Panel connector

4 x SATA connectors

1 x CPU Fan connector 4-pin

2 x Chassis Fan connector 3-pin

1 x CMOS Jumper

BIOS

64 Mb Flash ROM , SPI, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.6, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

Manageability

WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,WOR by PME

Form Factor

uATX Form Factor

9.6 inch x 8.8 inch 24.4 cm x 22.4 cm )

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
