Asus P7P55-M Rev 1.01G Mainboard Sockel 1156 DDR3 PCI-E GbLAN 7.1 Audio* m455

Asus P7P55-M Rev 1.01G Mainboard

Technische Daten

CPU

Intel Socket 1156 Core™ i7 Processor/Core™ i5 Processor Supports Intel® Turbo Boost Technology

Chipsatz

Intel P55 Express Chipset

Memory

4 x DIMM, 16 GB, DDR3 1600/2200(O.C.)*/1333/1066 Non-ECC,Un-buffered Memory

Dual Channel memory architecture

Supports Intel® Extreme Memory Profile (XMP)

*Refer to www.asus.com or this user manual for the Memory QVL (Qualified Vendors Lists).

Expansion Slots

1x PCIe 2.0 x16

2x PCIe x1

1x PCI

Storage

VIA VT6415 PATA controller

1 x UltraDMA 133/100/66 Intel® P55 Express Chipset built-in

6 x SATA 3.0 Gb/s ports

0,1,0+1,5,10 Intel Matrix Storage Technology Support RAID

LAN

Realtek® 8112L Gigabit LAN controller featuring AI NET 2

Audio

VIA® VT1708S 8-Channel High Definition Audio CODEC

- Supports Jack-Detection, Multi-streaming, Front Panel Jack-Retasking

IEEE 1394

1 JMB381 controller supports x 1394a ports

USB

14 USB 2.0 ports (6 ports at mid-board, 8 ports at back panel)

ASUS AI Lifestyle Features

ASUS Turbo Key,  ASUS TurboV, ASUS EPU, ASUS Express Gate, ASUS CrashFree BIOS 3,  ASUS EZ Flash 2,  ASUS MyLogo 2

Overclocking Features

SFS (Stepless Frequency Selection)

- Internal Base Clock tuning from 133MHz up to 500MHz at 1MHz increment

- PCI Express frequency tuning from 100MHz 160MHz at 1MHz

Overclocking Protection

- ASUS C.P.R.(CPU Parameter Recall)

Back Panel I/O Ports

1 x PS/2 Keyboard/Mouse Combo port

1 x IEEE 1394a

1 x RJ45 port

8 x USB 2.0/1.1

1 x COM port

8 Channel Audio I/O

Internal I/O Connectors

3 x USB connectors support additional 6 USB ports

1 x LPT connector

1 x Front panel audio connector

1 x S/PDIF Out header

1 x 24-pin ATX Power connector

1 x 4-pin ATX 12V Power connector

1 x System Panel connector

1 x IDE connector

6 x SATA connectors

1 x CPU Fan connector

1 x Chassis Fan connector

BIOS

16 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a

Form Factor

uATX Form Factor

9.6 inch x 8.6 inch 24.4 cm x 21.8 cm)

Lieferumfang

Das Mainboard ohne weiteres Zubehör * gebraucht *

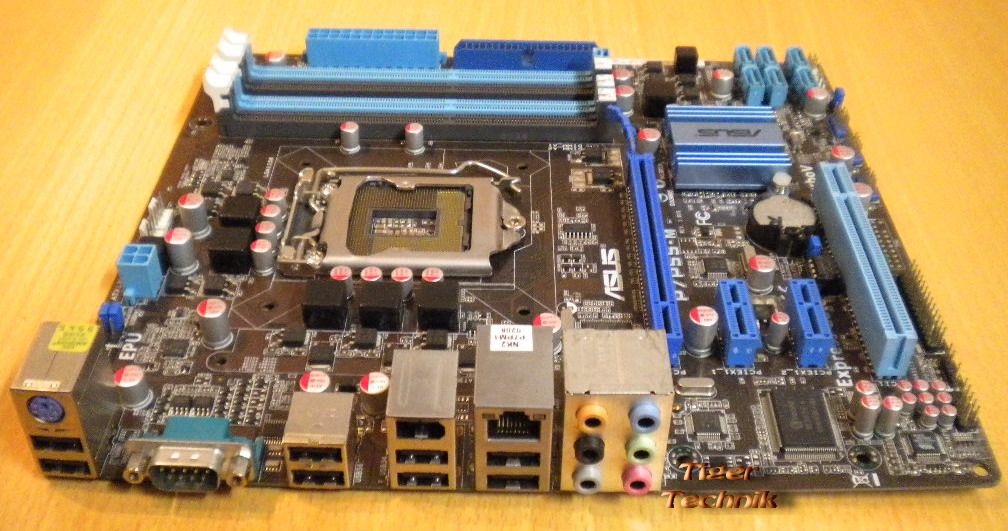

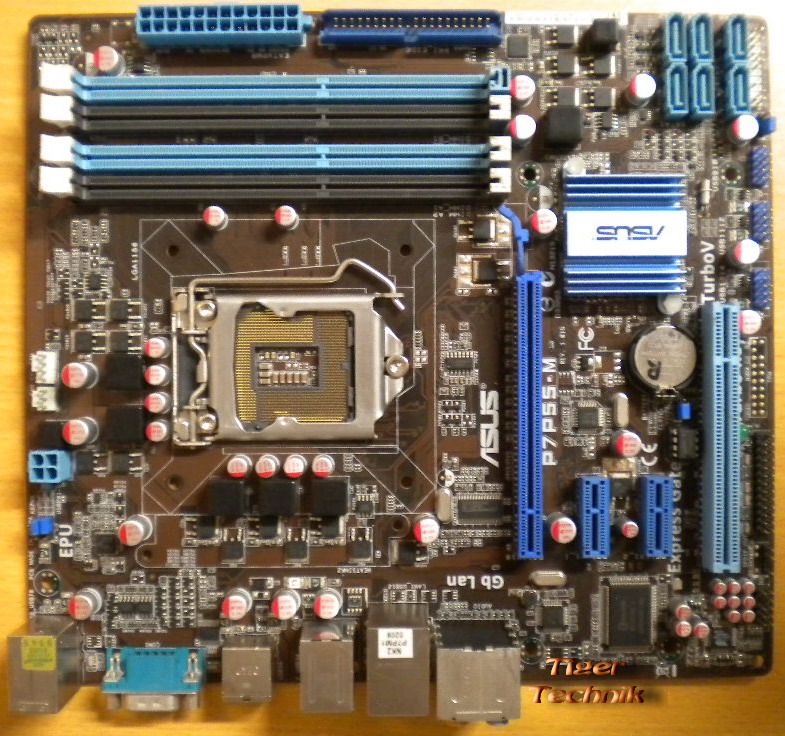

Abbildung ähnlich
