Asus P7P55D LE Rev1.01G Mainboard +Blende Intel P55 Sockel 1156 DDR3 GBLAN* m891

Asus P7P55D LE Rev 1.01G Mainboard + Blende Intel P55 Sockel 1156 DDR3 GBLAN

Technische Daten

CPU

Intel Socket 1156 Core™ i7 Processor / Core™ i5 Processor

Supports Intel® Turbo Boost Technology

Chipsatz

Intel P55 Express Chipset

Memory

4 x DIMM, 16 GB, DDR3 1600/2133(O.C.)*/1333/1066 Non-ECC,Un-buffered Memory

Dual Channel memory architecture

Supports Intel® Extreme Memory Profile (XMP)

*Hyper DIMM support is subject to the physical characteristics of individual CPUs. Some hyper DIMMs only support one DIMM per channel. Please refer to Memory QVL for details. Refer to the Asus Website or the user manual for the Memory QVL(Qualified Vendors Lists).

Expansion Slots

1 x PCIe 2.0 x16 (single at x16)

1 x PCI Express 2.0 x16 slots (@x4 mode, 2.5GT/s)

2 x PCI Express 2.0 x1 (2.5GT/s)

3 x PCI

Multi-GPU Support

Supports ATI® Quad-GPU CrossFireX™ Technology

Storage

by Intel® P55 Express Chipset built-in

6 x SATA 3.0 Gb/s ports

0,1,5,10 Intel Matrix Storage Technology Support RAID

by JMicron® JMB361 PATA and SATA controller

UltraDMA 133/100/66 for up to 2 PATA devices

1 x External SATA 3Gb/s port (SATA on-the-go)

LAN

Realtek® 8112L Gigabit LAN controller featuring AI NET2

Audio

VIA® VT1828S 8-Channel High Definition Audio CODEC

- Absolute Pitch BD192/24

- DTS Surround Sensation UltraPC

- BD audio layer Content Protection

- Supports Jack-Detection, Multi-streaming, Front Panel Jack-Retasking

- Optical S/PDIF out ports at back I/O

USB

14 x USB 2.0 ports (6 ports at mid-board, 8 ports at back panel)

ASUS AI Lifestyle Features

ASUS Exclusive Overclocking Features:       ASUS TurboV; ASUS Turbo Key

ASUS 8+2 Phase Power Design

ASUS Xtreme Design

ASUS Exclusive Features:       MemOK!; ASUS EPU; Express Gate

ASUS Quiet Thermal Solution:       ASUS Fanless Design: Stylish Heat-sink solution; ASUS Fanless Design: Stack Cool 3; ASUS Fan Xpert

ASUS Crystal Sound:       ASUS Noise Filter

ASUS EZ DIY:       ASUS Q-DIMM; ASUS Q-Shield; ASUS Q-Connector; ASUS O.C. Profile; ASUS CrashFree BIOS 3; ASUS EZ Flash 2; ASUS MyLogo 2; Multi-language BIOS

Overclocking Features

Precision Tweaker - vCore:       Adjustable CPU voltage at 0.0125V increment 0.00625V - vIMC: Adjustable IMC voltage at 0.05V increment; vDRAM Bus: 8-step DRAM voltage control; vPCH: 2-step chipset voltage control; vCPU_PLL: 4-step reference voltage control

SFS (Stepless Frequency Selection):      Internal Base Clock tuning from 80MHz up to 500MHz at 1MHz increment; PCI Express frequency tuning from 100MHz 200MHz at 1MHz

Overclocking Protection:       ASUS C.P.R.(CPU Parameter Recall)

Back Panel I/O Ports

1 x PS/2 Keyboard (Purple)

1 x PS/2 mouse port (Green)

1 x Optical S/PDIF Output

1 x External SATA

1 x RJ45 port

8 x USB 2.0/1.1

8-channel Audio I/O

Internal I/O Connectors

3 x USB connectors support additional 6 USB ports

1 x CPU Fan connector

1 x Power Fan connector

2 x Chassis Fan connector (1x4-pin, 1x3-pin)

1 x Front panel audio connector (AAFP)

1 x S/PDIF Out Header

1 x CD audio in

1 x 24-pin ATX Power connector

1 x 8-pin ATX 12V Power connector

1 x System Panel(Q-Connector)

1 x MemOK! button

1 x COM port connector

1 x IDE connector

6 x SATA connectors

BIOS

16 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

Manageability

WOL by PME, WOR by PME, WOR by PME

Form Factor

ATX Form Factor; 12 inch x 8.6 inch ( 30.5 cm x 21.8 cm )

Lieferumfang

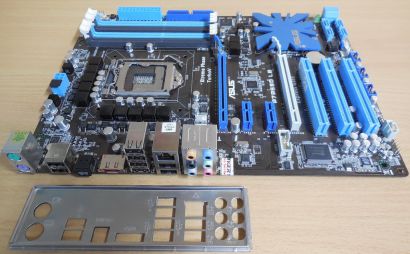

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
