Foxconn H57M01P8-1.1-8EKS3H P55M01 Rev1.1 MB.U5209.001 Acer Aspire M5811* m664

Foxconn H57M01P8-1.1-8EKS3H P55M01 Rev 1.1

MB.U5209.001 Acer Aspire M5811 Sockel 1156

Technische Daten

CPU

Socket H2 - LGA 1156 pin Socket

- bis zu Intel® Core™ i7-870 Prozessor

- bis zu Intel® Core™ i5-750 Prozessor

- bis zu Intel® Core™ i3-540 Prozessor

Chipset

Intel® P55 / H57 Express

Front Side Bus

1333 MHz

2.5GT/s DMI

Memory

bis zu 8GB Dual-Channel DDR3 1066/1333MHz x4 DIMMs

Storage

6x SATAII w/RAID 0,1,5,0+1; Intel® Matrix storage technology

Expansion Slots

1x PCI Express® x16 Slot, 1x PCI Express® x4 Slot, 2x PCI Express 2.0 x1

Audio

7.1 channel HDA by VIA® VT1828S

LAN

10/100/1000 Mbps Gigabit Lan by Broadcom® BCM57780; Wake on LAN ready

VGA

Abhängig von der verwendeten CPU!

kein eigener Grafikchipsatz

Anschlüsse: 1x VGA Sub-D, 1x HDMI

IEEE1394 Firewire

1x Firewire hinten + 1x Header für weiteren Firewire Anschluss z.B. Front oder extern

Back Panel I/O Ports

1 x PS/2 keyboard port + 1 x PS/2 mouse port

1 x VGA SUB-D port + 1 x HDMI port

2 x e-SATA ports

1 x IEEE1394 Firewire port

1 x S/PDIF out Optical port

1 x RJ45 LAN port

1 x Audio jack supports 5 jacks

4 x USB 2.0 ports

Internal I/O Connectors

1 x ATX 24-Pin power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin CPU FAN connectors

2 x 3-pin system fan connectors + 1 x 3-pin Rear fan connector

1 x Front Panel header

1 x Front Audio Header

1 x Intruder Alarm header

4 x USB 2.0 headers support additional 8 ports

6 x Serial ATAII connectors

1 x S/PDIF Out header

1 x AUX connector

1 x Speaker header

1 x IEEE 1394 FireWire

BIOS Features

16Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI

Standards/Manageability

PCI 2.3, USB2.0, DMI 2.5

Form Factor

micro ATX; 244mm x 244mm

Lieferumfang

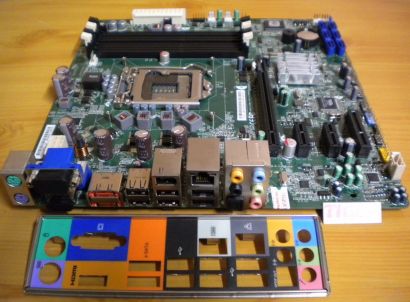

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

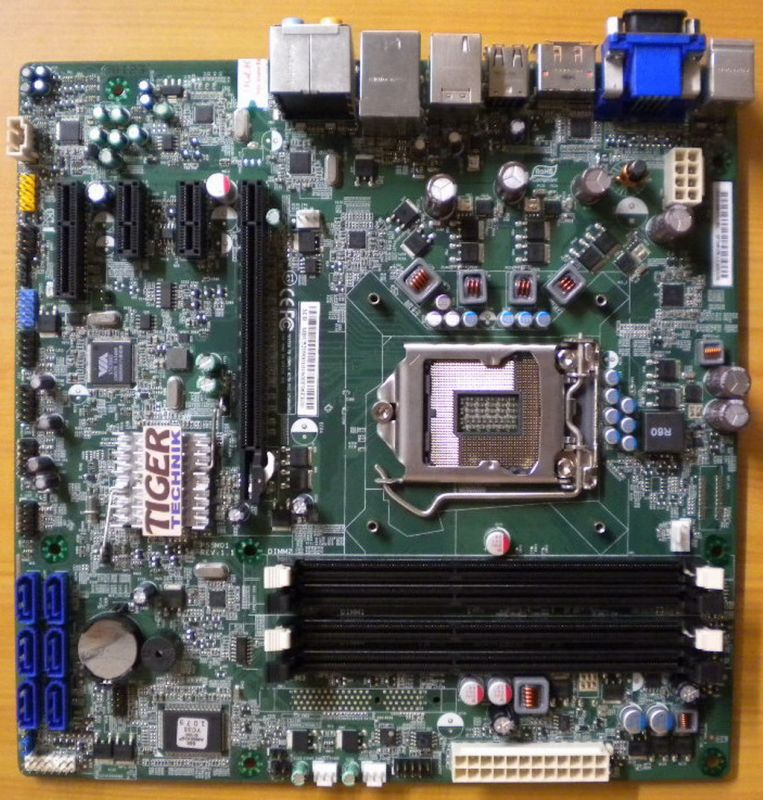

Abbildung ähnlich
