Gigabyte GA-H55M-UD2H Rev1.3 Mainboard +Blende Sockel 1156 HDMI DisplayPort*m862

Gigabyte GA-H55M-UD2H Rev 1.3 Mainboard + Blende Sockel 1156 HDMI DisplayPort

Technische Daten

Prozessor

Support for an Intel® Core™ i7 series processor / Intel® Core™ i5 series processor / Intel® Core™ i3 series processor in the LGA1156 package

L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

Chipsatz

Intel® H55 Express Chipset

Arbeitsspeicher

4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1)

Dual channel memory architecture

Support for DDR3 2200+/1800/1600/1333/1066/800 MHz memory modules

Support for non-ECC memory modules

Support for Extreme Memory Profile (XMP) memory modules

* To reach DDR3 2200 MHz and above, you are required to use with Intel Core i7 / Core i5 CPU without HD Graphics and install a discrete graphics card.
When using Intel Core i5 / Core i3 / Pentium CPU with HD Graphics, the maximum memory speed supported is 1666 MHz
* Please refer "Memory Support List" for more information.

Onboard Grafik

Integrated in the Chipset:

1 x D-Sub port (Note 2)

1 x DVI-D port (Note 2) (Note 3) (Note 4)

1 x HDMI port(Note 2) (Note 4)

1 x DisplayPort (Note 2) (Note 4)

Audio

Realtek ALC889 codec

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF In/Out

Support for CD In

LAN

1 x RTL8111E chip (10/100/1000 Mbit)

Erweiterungssteckplätze

*1 x PCI Express x16 slot, running at x16 (PCIEX16) (Note 5)
(The PCIEX16 slot conforms to PCI Express 2.0 standard.)

*1 x PCI Express x16 slot, running at x4 (PCIEX4) (Note 6)

2 x PCI slots

Storage Interface

Chipset:

5 x SATA 3Gb/s connectors supporting up to 5 SATA 3Gb/s devices

1 x eSATA 3Gb/s connector on the back panel supporting up to 1 SATA 3Gb/s device

JMicron JMB368 chip:

1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices

iTE IT8720 chip:

1 x floppy disk drive connector supporting up to 1 floppy disk drive

Multi-Graphics Technology

Support for ATI CrossFireX™ technology(Note 6)

USB

Up to 12 USB 2.0/1.1 ports (6 on the back panel, 6 via the USB brackets connected to the internal USB headers)

T.I. TSB43AB23 IEEE1394 chip

Up to 2 IEEE 1394a ports (1 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)

Interne I/O Anschlüsse

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

1 x floppy disk drive connector

1 x IDE connector

5 x SATA 3Gb/s connectors

1 x CPU fan header

1 x system fan header

1 x front panel header

1 x front panel audio header

1 x CD In connector

1 x S/PDIF In header

1 x S/PDIF Out header

3 x USB 2.0/1.1 headers

1 x IEEE 1394a header

1 x serial port header

1 x clearing CMOS jumper

Rückseite I/O Panel

1 x PS/2 keyboard or PS/2 mouse port

1 x D-Sub port (Note 2)

1 x DVI-D port (Note 2) (Note 3) (Note 4)

1 x HDMI port (Note 2) (Note 4)

1 x DisplayPort(Note 2)(Note 4)

1 x IEEE 1394a port

1 x optical S/PDIF Out connector

6 x USB 2.0/1.1 ports

1 x eSATA 3Gb/s connector

1 x RJ-45 port

6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/ Side Speaker Out/Line In/Line Out/Microphone)

I/O

iTE IT8720 chip

H/W Überwachung

System voltage detection

CPU/System temperature detection

CPU/System/Power fan speed detection

CPU overheating warning

CPU/System/Power fan fail warning

CPU/System fan speed control (Note 7)

BIOS

2 x 64 Mbit flash

Use of licensed AWARD BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Einzigartige Funktionen

Support for @BIOS, Q-Flash, Xpress BIOS Rescue, Download Center, Xpress Install, Xpress Recovery2, EasyTune, Dynamic Energy Saver™ 2, Smart 6™, Auto Green, Q-Share

Betriebssystem

Support for Microsoft® Windows 7 / Vista / XP

Form Factor

MicroATX Form Factor; 24.4cm x 23cm

Hinweis

(Note 1) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
(Note 2) To use the onboard D-Sub, DVI-D, HDMI, and DisplayPort ports, you must install an Intel CPU with integrated graphics.
(Note 3) The DVI-D port does not support D-Sub connection by adapter.
(Note 4) You can use only one of the onboard digital graphics ports (e.g. DisplayPort, HDMI, and DVI-D) for output when in the BIOS Setup program or when during the POST screens.
(Note 5) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(Note 6) The PCIEX16 slot operates at up to x4 mode when ATI CrossFireX™ is enabled.
(Note 7) Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
(Note 8) Available functions in EasyTune may differ by motherboard model.

Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.

Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

Lieferumfang

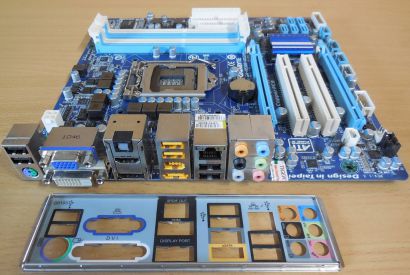

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

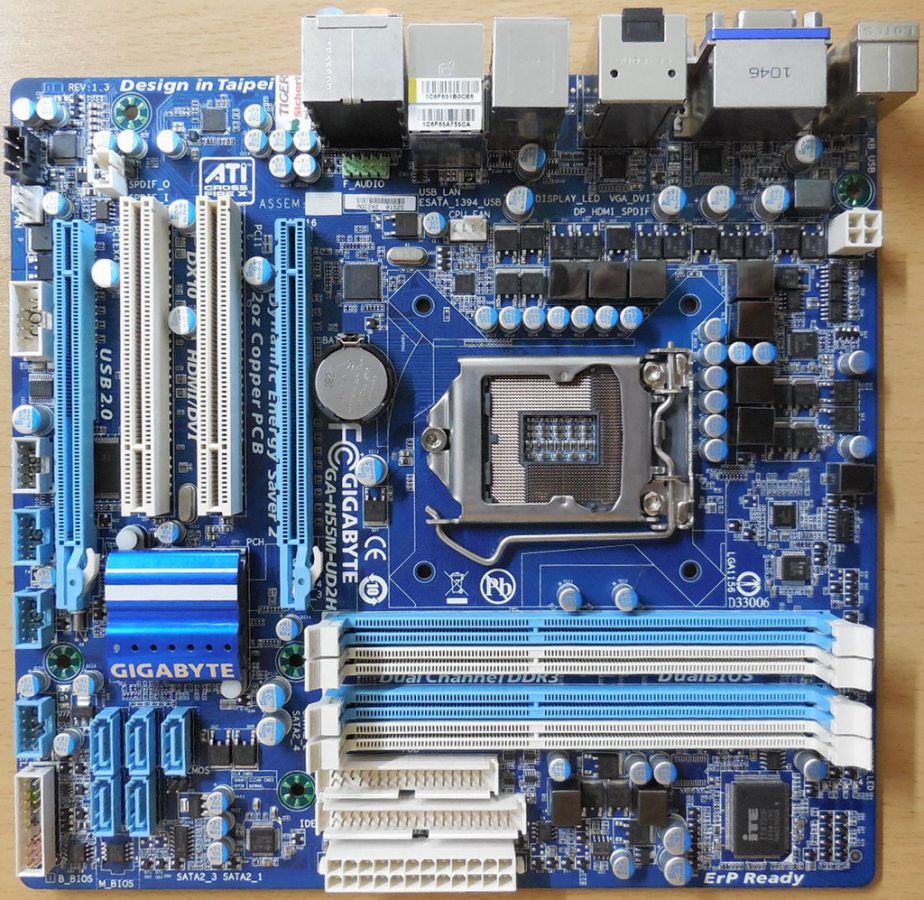

Abbildung ähnlich
