Gigabyte GA-P55A-UD3(rev.2.0)S 1156 DDR3 2200,1600

Produktbeschreibung

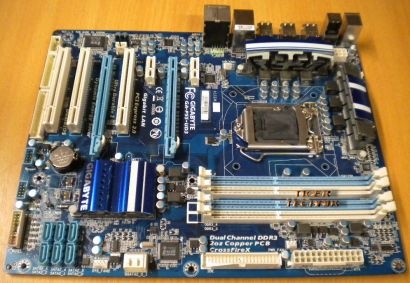

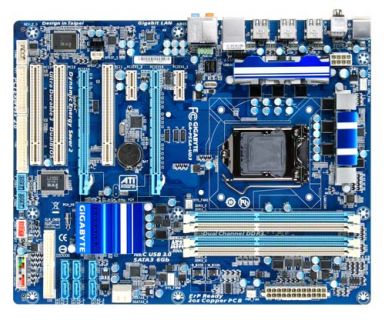

Gigabyte Mainboard GA-P55A-UD3 (rev.2.0)

Sockel 1156 DDR3 2200/1600/1333/1066/800MHz

Spezifikation

Prozessor

Support for an Intel® Core™ i7 series processor/Intel® Core™ i5 series processor /Intel® Core™ i3 series

processor in the LGA1156 package (Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Chipsatz Intel® P55 Express Chipset

Arbeitsspeicher

4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory

Dual channel memory architecture

Support for DDR3 2200/1600/1333/1066/800 MHz memory modules

Support for non-ECC memory modules

Support for Extreme Memory Profile (XMP) memory modules

Audio

Realtek ALC892 codec

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF In/Out

Support for CD In

LAN 1 x RTL8111E chip (10/100/1000 Mbit)

Erweiterungssteckplätze

*1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCIEX16 slot conforms to PCI Express 2.0 standard.)

*1 x PCI Express x16 slot, running at x4 (PCIEX4)

2 x PCI Express x1 slots

3 x PCI slots

Multi-Graphics Technology Support for ATI CrossFireX™ technology

Storage Interface Chipset:

6 x SATA 3Gb/s connectors (SATA2_0, SATA2_1, SATA2_2, SATA2_3, SATA2_4, SATA2_5) supporting up to 6 SATA 3Gb/s devices

Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10

Marvell 9128 chip:

2 x SATA 6Gb/s connectors (GSATA3_6, GSATA3_7) supporting up to 2 SATA 6Gb/s devices

Support for SATA RAID 0 and RAID 1

SATA3 RAID 0 4x and SATA3 2x performance are maximum theoretical values. Actual performance may vary by system configuration.

SATA3 SSDs are not recommended for use in RAID 0 mode on Marvell SE9128 ports.

iTE IT8213 chip: 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices

iTE IT8720 chip: 1 x floppy disk drive connector supporting up to 1 floppy disk drive

USB Chipset: Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets connected to the internal USB headers)

NEC chip:

Up to 2 USB 3.0/2.0 ports on the back panel

USB 3.0 10x performance is a maximum theoretical value. Actual performance may vary by system configuration.

Interne I/O Anschlüsse

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x floppy disk drive connector

1 x IDE connector

6 x SATA 3Gb/s connectors

2 x SATA 6Gb/s connectors

1 x CPU fan header

2 x system fan headers

1 x power fan header

1 x front panel header

1 x front panel audio header

1 x CD In connector

1 x S/PDIF In header

1 x S/PDIF Out header

2 x USB 2.0/1.1 headers

1 x serial port header

1 x parallel port header

1 x clearing CMOS jumper

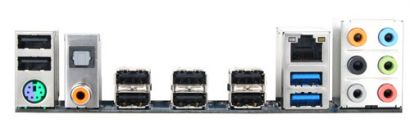

Rückseite I/O Panel

1 x PS/2 keyboard or PS/2 mouse port

1 x coaxial S/PDIF Out connector

1 x optical S/PDIF Out connector

8 x USB 2.0/1.1 ports

2 x USB 3.0 ports

1 x RJ-45 port

6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/ Side Speaker Out/Line In/Line Out/Microphone)

I/O iTE IT8720 chip

H/W Überwachung

System voltage detection

CPU/System temperature detection

CPU/System/Power fan speed detection

CPU overheating warning

CPU/System/Power fan fail warning

CPU/System fan speed controll

BIOS

2 x 16 Mbit flash

Use of licensed AWARD BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Einzigartige Funktionen

Support for @BIOS

Support for Q-Flash

Support for Xpress BIOS Rescue

Support for Download Center

Support for Xpress Install

Support for Xpress Recovery2

Support for EasyTune

Support for Dynamic Energy Saver™ 2

Support for Smart 6™

Support for Auto Green

Support for eXtreme Hard Drive

Support for Q-Share

Betriebssystem Support for Microsoft® Windows 7/Vista/XP

Form Factor ATX Form Factor; 30.5cm x 24.4cm

Hinweis When SATA3 / USB 3.0 (Marvell 9128 /NEC USB 3.0 Controllers) work at turbo mode, 1st PCIE x16 will work at x8 speed.

On/Off Charge Technology

GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger...more
*Due to certain mobile phone limitations, users may need to connect the mobile phone to their PC before the PC enters S4/S5 mode to enable a quick charge from non On/Off Charge USB ports. Charging results may vary by model.
*Whether to support 3X USB power design, it may vary by models.

On/Off Charge USB port

Charges iPad, iPhone and iPod Touch while PC Hibernates or even when shut down (off).

GIGABYTE P55A-UD3 Obtains USB 3.0 Motherboard Certification Officially

GIGABYTE P55A-UD7 Obtains USB 3.0 Motherboard Certification Officially

The GIGABYTE P55A-series motherboards support the latest generation SuperSpeed USB 3.0 technology made possible through an onboard NEC uPD720200 host controller. With superfast transfer rates of up to 5 Gbps, users are able to experience an almost a 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices. The onboard NEC SuperSpeed USB 3.0 technology also provides new power management features that include increased maximum bus power and device current draw to better accommodate power-hungry devices.

* USB 3.0 10x performance is a maximum theoretical value. Actual performance may vary by system configuration.

SATA 6 Gbps Support

Yet another onboard feature of GIGABYTE motherboards are Marvell's SE9128 chips for high-speed SATA Revision 3.0 compatibility, delivering superfast 6Gbps link speeds for twice the data transfer rates of SATA Revision 2.0 (3 Gbps). When used in RAID 0 (Stripe) mode, GIGABYTE motherboards offer even faster data transfer rates of up to 4x the speed of current SATA interfaces.

* SATA3 RAID 0 4x and SATA3 2x performance are maximum theoretical values. Actual performance may vary by system configuration.
* SATA3 SSDs are not recommended for use in RAID 0 mode on Marvell SE9128 ports.

3x USB Power Boost

GIGABYTE motherboards feature a 3x USB power boost, delivering greater compatibility and extra power for USB devices. GIGABYTE’s unique USB power design is also able to efficiently regulate output over the full voltage range, which greatly enhances USB device compatibility. In addition, dedicated lower resistance fuses ensure lower voltage drops, and provide more stable and plentiful power delivery.

Ultra Durable 3

GIGABYTE Ultra Durable 3 design, featuring 2 ounces of copper for both the Power and Ground layers which dramatically lowers system temperature by delivering a more efficient spreading of heat from critical areas of the motherboard such as the CPU power zone throughout the entire PCB. GIGABYTE's Ultra Durable 3 also lowers the PCB impedance by 50%, which helps to reduce electrical waste and further lowers component temperatures. A 2oz Copper layer design also provides improved signal quality and lower EMI (Electromagnetic Interference), providing better system stability and allowing for greater margins for overclocking...more

Benefits of 2 oz Copper PCB

• Cooler than traditional motherboards
• Enhanced durability
• Improved energy efficiency
• Greater margins for overclocking... more

Smart 6- A Smarter way for PC system Management

GIGABYTE Smart 6™ is designed with user-friendliness in mind, and offers a combination of 6 innovative software utilities that provide easier and smarter PC system management. Smart 6™ allows you to speed up system performance, reduce boot-up time, manage a secure platform and recover previous system settings easily with a click of the mouse button.

	Smart QuickBoot No more waiting for PC Boot up		Smart DualBIOS Smart personal reminder
	Smart QuickBoost One-click Overclocking		Smart Recorder Your PC's Watch Dog
	Smart Recovery Reverse time for you		Smart TimeLock Time Controller for PC

Dynamic Energy Saver™ 2

GIGABYTE Dynamic Energy Saver™ 2 incorporates a host of intelligent features that, at the click of a button, utilize a proprietary hardware and software design to considerably enhance PC system energy efficiency, reduce power consumption and deliver optimized auto-phase-switching for the CPU, Memory, Chipset, VGA, HDD, and fans.

Cloud OC

GIGABYTE Cloud OC is a free overclocking application that facilitates PC overclocking through any web browsing capable device such as a smart phone, iPad, iPhone, Netbooks or notebook PC. Being browser based, it connects via wireless Internet, Bluetooth or through an Ethernet cable, and its many functions are categorized into three tabs: Tuner, System Info and Control...more

Hotkey OC

GIGABYTE Hotkey OC allows users to create and save various profiles that can be adopted for different benchmarks. Hotkey OC then allows users to jump between these profiles on the fly so that the best profile for each segment within the benchmark can be used to optimize scores and boost overall performance. For example, when running 3DMark 06, the 1st profile might be optimized for graphics, and can be used for the first two graphics tests, then, the next two tests can utilize the 2nd profile which might be optimized for CPU tests, and one could jump back to the 1st profile again for the final two graphics (shader) tests...more

Intel^® Core i7/ Core i5 LGA 1156 Processors

The Intel brand new computing architecture based on the innovation of micro-architecture transforms 3-chip solutions to a 2-chip platform. The next generation Intel^® Core™ i7/ Core™ i5 processors with LGA1156 package integrate graphics and memory controller to support dual channel DDR3 memory. Supporting Intel Turbo Boost technology and Hyper-Threading Technology, Intel^® Core™ i7/ Core™ i5 processors provide the overwhelming performance with optimized power efficiency.

DDR3 2200+ Support

Support Intel Core™ i7/ Core™ i5 processors delivering native support for DDR3 memory up to 2200+MHz by the enhanced design of GIGABYTE, Intel Core™ i7/ Core™ i5 processors feature the memory controller integrated directly into the processor die, rather than as part of the Northbridge as in previous generations, allowing for faster memory performance.
* Please refer "Memory Support List" for memory support information

XHD (eXtreme HardDrive)-Accelerating hard drive performance with ease

Accelerating system performance is made easy with the user friendly GIGABYTE eXtreme Hard Drive (X.H.D). GIGABYTE eXtreme Hard Drive (X.H.D) provides a quick and easy way to boost your hard drive performance simply by adding another hard drive.

AutoGreen- Greening your PC via Bluetooth cellphone

AutoGreen technology can automatically save power by simply putting your PC in a state of sleep when your Bluetooth^® cell phone is out of range of your computer.
Note: GIGABYTE motherboards do not include a Bluetooth^® receiver; the addition of a 3rd party Bluetooth receiver is required.

Multi-display support with ATI CrossFireX™
