Produktbeschreibung

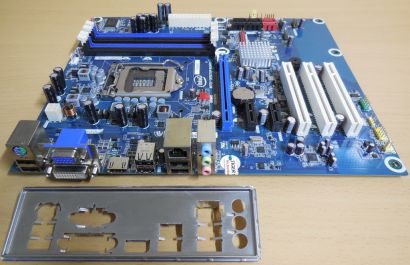

Intel DH55HC Rev E70933-505 Mainboard + Blende Sockel 1156 DDR3 DVI HDMI VGA
Technische Daten
CPU
Intel® Core™ i7, Intel® Core™ i5, Intel® Core™ i3 and Intel® Pentium® processors in an LGA1156 socket:
Integrated graphics processing (processors with Intel® Graphics Technology)
External graphics interface controller
Integrated memory controller
Chipset
Intel® H55 Express Chipset consisting of the Intel H55 Platform Controller Hub (PCH)
Memory
4 x 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets arranged in two channels
Support for DDR3 1333 MHz and DDR3 1066 MHz DIMMs
Support for non-ECC memory
Support for up to 16 GB of system memory with four DIMMs using 2 Gb memory technology
Expansion Capabilities
1 x PCI Express 2.0 x16 add-in card connector
2 x PCI Express 2.0 x1 add-in card connector
3 x PCI bus connectors
Graphics
Integrated graphics support for processors with Intel Graphics Technology VGA; HDMI; DVI-D
Discrete graphics support for PCI Express 2.0 x16 add-in graphics card
Storage
6 x Serial ATA (SATA) 3.0 Gb/s ports (Two ports compatible with eSATA dongles)
LAN Support
Intel 82578DC Gigabit (10/100/1000 Mb/s) Ethernet LAN controller including an RJ-45 back panel connector
Audio
Intel® High Definition Audio via the Realtek ALC888S audio codec and the HDMI interface
USB
12 x USB 2.0 ports (6 ports at mid-board, 8 ports at back panel)
Back Panel I/O Ports
1 x PS/2 Keyboard/Mouse Combo port
1 x HDMI
1 x DVI-D
1 x VGA Sub-D
1 x LAN RJ45 port
6 x USB 2.0/1.1
8-channel (7.1) Audio I/O
Internal I/O Connectors
1 x 24-pin ATX Power connector
1 x 4-pin ATX 12V Power connector
1 x 4-pin CPU FAN connector
1 x COM connector
2 x 4-pin Chassis FAN connectors (Rear FAN + Front FAN)
1 x Front Audio Panel header
1 x Front Panel connector
1 x Internal mono speaker header
3 x USB2.0 connectors support additional 6 USB2.0 ports
1 x SPDIF header
6 x SATA connectors
1 x Intel® Remote PC Assist header
1 x Chassis Intrusion header
1 x Power LED connector
1 x Buzzer
1 x Parallel port header
1 x BIOS Config Jumper
BIOS
Intel® BIOS resident in the SPI Flash device
Support for Advanced Configuration and Power Interface (ACPI), Plug and Play and SMBIOS
Instantly Available PC Technology
Support for PCI Local Bus Specification Revision 2.3
Support for PCI Express
Suspend to RAM support
Wake on PCI, PCI Express, LAN, front panel, PS/2, serial and USB ports
Hardware Management Subsystem
Intel® Quiet System Technology (Intel® QST) implemented through Intel® Management Engine (Intel® ME) in the Intel H55 PCH
Voltage sense to detect out of range power supply voltages
Thermal sense to detect out of range thermal values
Three fan headers using PWM control
4-pin headers for processor, front, and rear fans
4-wire and 3-wire (linear) fan speed control support for front and rear fans
Support for Platform Environmental Control Interface (PECI)
Form Factor
ATX; ca. 243.84mm x 294.64mm (9.60" x 11.60")
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
