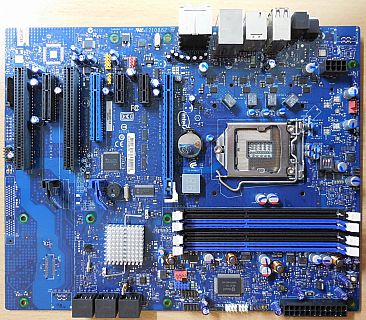

Intel DP55WG Rev E57269 404 Mainboard + Blende Sockel 1156 DDR3 IEEE1394* m1002

Intel DP55WG Rev E57269-404 Mainboard + Blende Sockel 1156 DDR3 IEEE1394

Technische Daten

CPU

Support for an Intel® processor in the LGA1156 package

Chipset

Intel® P55 Express Chipset consisting of the Intel P55 Express Chipset Platform Controller Hub (PCH)

Memory

4 x 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets arranged in two channels

Support for DDR3 1600+ MHz, DDR3 1333 MHz, and DDR3 1066 MHz DIMMs

Support for non-ECC memory

Support for up to 16 GB of system memory

Expansion Capabilities

1 x PCI Express 2.0 x16 port

1 x PCI Express 2.0 x8 port

1 x PCI Express 2.0 x4 port

2 x PCI Express 2.0 x1 ports

2 x PCI bus connectors

Storage

6 x Serial ATA (SATA) channels (3.0 Gb/s) via the PCH

RAID

Intel® Matrix Storage Technology for Serial ATA

LAN Support

Support Intel 82578DM Gigabit (10/100/1000 Mb/s) Ethernet LAN controller including an RJ-45 back panel connector with integrated status LEDs

Audio

Independent multi-streaming 8-channel (7.1) audio and 2-channel audio subsystem, featuring:

Intel® High Definition (Intel® HD) Audio interface Realtek ALC889 codec

HD Audio front panel header

Onboard 4-pin S/PDIF out connector

Back panel S/PDIF out and in optical connectors

USB

14 x USB 2.0 ports (6 ports at mid-board, 8 ports at back panel)

IEEE1394 Firewire

2 x IEEE1394 ports (1 port at mid-board, 1 port at back panel)

Legacy I/O Control

Legacy I/O Controller that provides Consumer Infrared (CIR) support

Back Panel I/O Ports

1 x Back to BIOS Button

1 x Optical SPDIF Out

1 x Optical SPDIF In

1 x IEEE1394 Firewire

1 x VGA Sub-D

1 x LAN RJ45 port

8 x USB 2.0/1.1

8-channel (7.1) Audio I/O

Internal I/O Connectors

1 x 24-pin ATX Power connector

1 x 4-pin ATX 12V Power connector

1 x 4-pin CPU Fan connector

1 x J1VR connector

2 x 4-pin Chassis Fan connectors

1 x Front Audio Panel connector

1 x Front Panel connector

1 x IEEE1394 Firewire connector

3 x USB connectors support additional 6 USB ports

1 x SPDIF header

6 x SATA connectors

1 x Back panel CIR transmitter (output) header

1 x Front panel CIR receiver (input) header

1 x Chassis Intrusion connector

1 x Alternate front panel power LED connector

1 x Speaker

1 x POST code LED display

1 x Auxiliary PCI Express graphics power connector (SATA-style)

BIOS

Intel® Platform Innovation Framework for extensible firmware interface

16 Mb symmetrical flash memory device

Support for SMBIOS

Intel® Express BIOS Update

Power Management

Support for Advanced Configuration and Power Interface (ACPI)

Suspend to RAM (STR)

Wake on USB, PCI, PCI Express, LAN, CIR, and front panel

ENERGY STAR* capable

Hardware Management

Hardware monitor with: Four fan sensing inputs used to monitor fan activity; Intel® Precision Cooling Technology fan speed control; Voltage sensing to detect out of range values

Form Factor

ATX; ca. 304.80mm x 243.84 mm (12.00" x 9.60")

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
