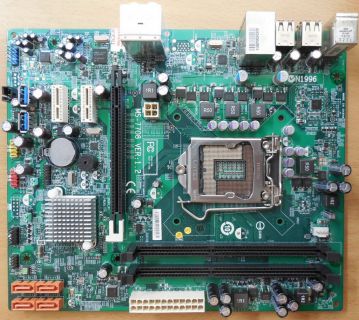

MSI MS-7708 Ver1.2 Medion Akoya P4375 D MD8880 Mainboard+Blende Sockel 1156*m813

MSI MS-7708 Ver 1.2 Medion Akoya P4375 D MD8880 Mainboard + Blende Sockel 1156

Technische Daten

CPU

Intel Sockel 1156 Processor Support

(Clarkdale) Core i5, i3

Chipset

Intel P55

Main Memory

2 * 240-pin DDR3 DIMM slots

Supports Dual Channel DDR3 1333/1066 MHz non-ECC, un-buffered memory (Max. 8GB - 4GB per slot)

Slots

1 x PCI Express x16 (2.0)

2 x PCI Express x1

On-Board SATA

Serial ATA/ATA II controller integrated

SATA I Up to 1.5Gb/sec transfer rate; SATA II Up to 3Gb/sec transfer rate.

Can connect up to 4 Serial ATA drives.

Audio

Realtek ALC887 – 8 Kanal 7.1 High Definition Audio Codec

LAN

Realtek Gigabit Netzwerkkarte – 10/100/1000Mb/s

USB

max. 10 x USB2.0 ports

2 x USB3.0 ports OnBoard

Internal I/O Connectors

ATX 24-Pin power connector

4-pin ATX 12V power connector

CPU fan connector

Clear CMOS jumper

2 x USB 2.0 headers for additional 4 USB 2.0 ports

2 x USB 3.0 ports onboard

JSPD1 SPDIF connector

JSPI1 connector

JLPC1 connector

Front panel audio connector

Front panel connectors

4 x Serial ATA device connectors

Back Panel I/O Ports

- 1 x PS/2 Mouse

- 1 x PS/2 Keyboard

- 1 x Audio I/O ( Front Line Out; Back Surround Line Out; Center/Subwoofer Line Out; Side Surround Line Out; Line In; SPDIF Out opt. )

- 6 x USB 2.0

- 1 x RJ45 LAN jack

Formfaktor

microATX ca. 24,4 x 20,3 cm

Lieferumfang

Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
