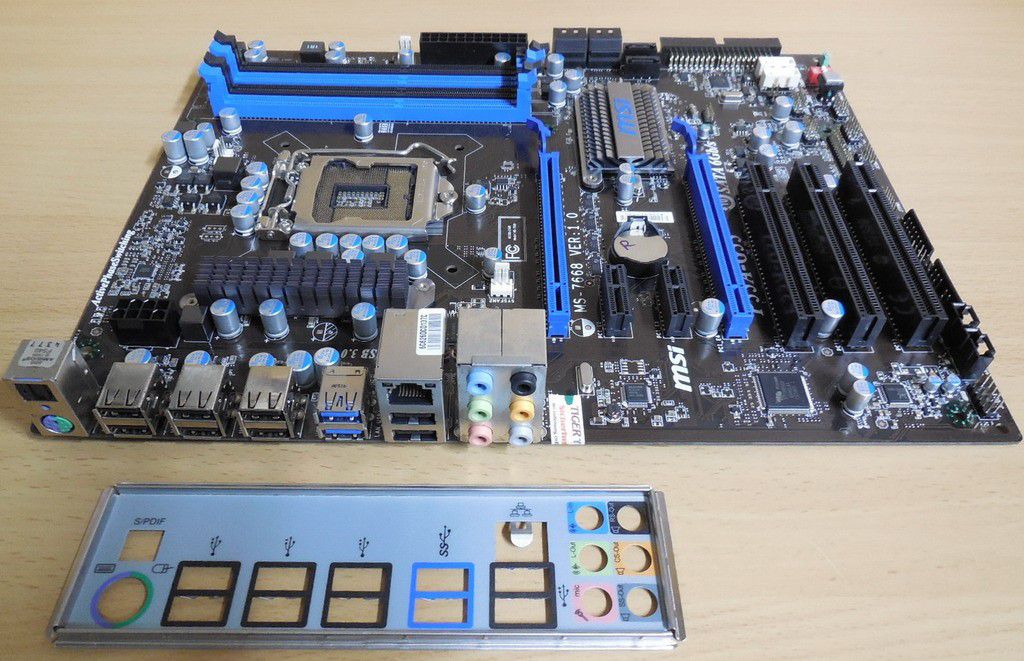

MSI P55A-G55 MS-7668 Ver 1.0 Mainboard +Blende Intel P55 Sockel 1156 DDR3* m783

MSI P55A-G55 MS-7668 Ver 1.0 Mainboard + Blende Intel P55 Sockel 1156 DDR3 PCIe uvm.

Technische Daten

CPU

Supports Intel® i3 / i5 / i7 based processors in LGA1156 package

Please refer to CPU Support for compatible CPU; the above description is for reference only

Chipset

Intel® P55 Chipset

- Supports QPI up to 6.4GT/s

- Hi-Speed USB (USB2.0) controller, 480Mb/sec

- 6 x SATAII ports with transfer rate up to 3Gb/s

- PCI Master v2.3, I/O APIC

- ACPI 2.0 compliant

- Serial ATA RAID 0/1/5/10

- Integrated AHCI controller

Main Memory

Supports four unbuffered DIMM of 1.5 Volt DDR3 1066/1333/1600*/1800*/2000*/2133* (OC) DRAM, 16GB Max

Supports 1GB / 2GB / 4GB DRAM size

Supports Dual channel mode

Slots

2 x PCI Express gen2 x16 slots

(If two graphics cards are installed at PCI_E1 & PCI_E4 slots, these two PCIE x16 lanes will auto arrange from x16/ x0 to x8/ x8)

Supports ATI® Crossfire™

2 x PCI Express gen2 x1 slots

3 x PCI slots, support 3.3V/ 5V PCI bus Interface

On-Board IDE/SATA

One Ultra DMA 66/100/133 IDE controller integrated in Marvell® 88SE9128B1 (Supports PIO, Bus Master operation modes. Can connect up to two Ultra ATA drives.)

SATAII / SATAIII controller integrated in Intel P55/Marvell® 88SE9128B1 chipsets

Supports six SATAII ports by P55

Supports two SATAIII ports by Marvell 88SE9128B1, up to 6Gb/s, support SATA RAID 0/1

Supports AHCI controller with AHCI / SATA RAID 0/1/5/10 by P55

Realtek® ALC892 Audio

Flexible 8-channel audio with jack sensing

Compliant with Azalia 1.0 Spec

Meet Microsoft Vista Premium spec

LAN

Supports One LAN PCI-E Gb LAN controller by Realtek 8111DL

Internal I/O Connectors

1 x ATX 24-Pin power connector

1 x 8-pin ATX 12V power connector

1 x 4-Pin CPU FAN connector

2 x 3-Pin System FAN connectors

1 x CD-in connector

1 x Front panel audio connector

1 x Front panel connector

1 x chasis intrusion connector

2 x USB 2.0 connectors

6 x Serial ATAII connectors

2 x Serial ATAIII connectors

1 x ATA133 connector

1 x Power Button

1 x Clear CMOS jumper

1 x SPDIF-out connector

1 x TPM module connector

1 x Serial port connector

1 x Parallel port connector

1 x Easy OC Switch

Back Panel I/O Ports

1 x Optical SPDIF-out

1 x PS/2 Keyboard/Mouse port

8 x USB 2.0 ports

2 x USB 3.0 ports

1 x RJ45 LAN Jack

1 x 6 in 1 audio jack

BIOS

The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.

The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.

Dimension

30.5cm(L) x 23.0cm(W) ATX Form Factor

Mounting

6 mounting holes

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
