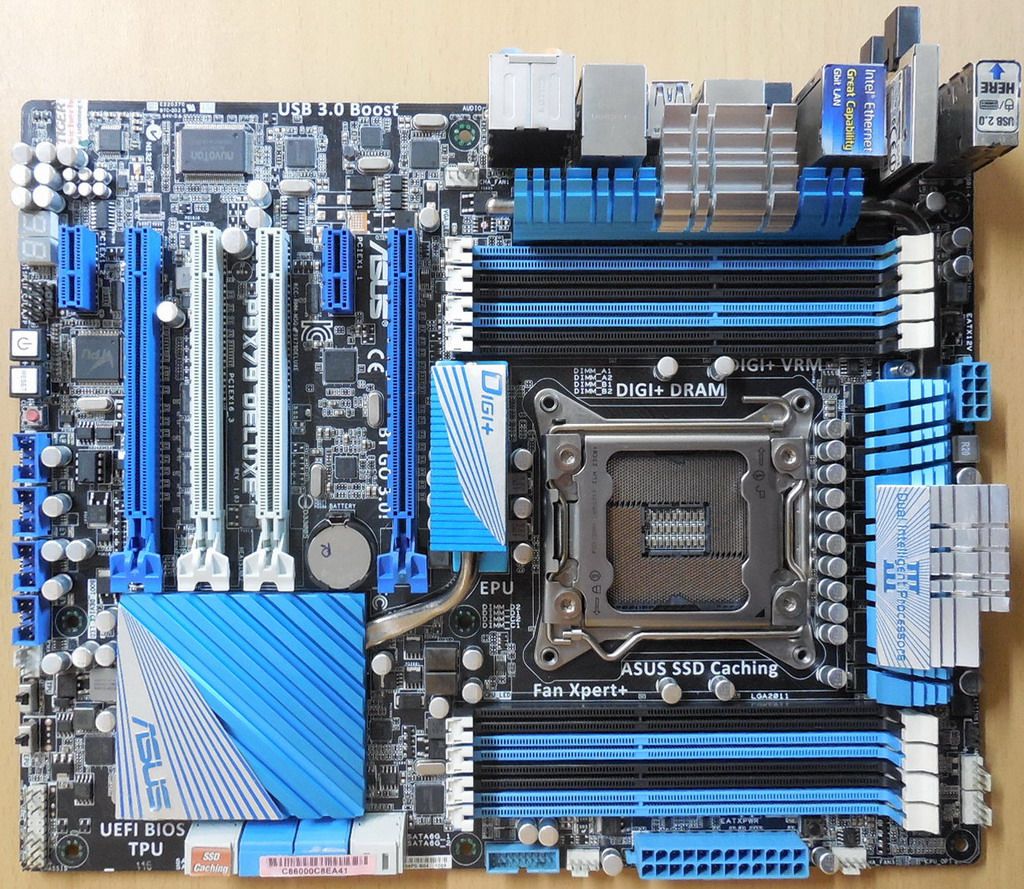

Asus P9X79 Deluxe Rev 1.03 Mainboard + Blende Intel X79 Sockel 2011 Wi-Fi* m1113

Asus P9X79 Deluxe Rev 1.03 Mainboard + Blende Intel X79 Sockel 2011 Wi-Fi Bluetooth

Technische Daten

Prozessor

2nd Generation Intel® Core ™ i7 processor family for the LGA 2011 Socket

Supports Intel® Turbo Boost Technology 2.0 (depends on CPU)

Refer to the Asus Website for Intel CPU support list

Chipsatz

Intel® X79 Express Chipset

Arbeitsspeicher

8 x DIMM, max. 64GB, DDR3 2400(O.C.) / 2133(O.C.) / 1866 / 1600 / 1333 / 1066 MHz, non-ECC, un-buffered memory

Quad channel memory architecture

Supports Intel® Extreme Memory Profile (XMP)

*Due to CPU behavior, DDR3 2200/2000/1800 MHz memory module will run at DDR3 2133/1866/1600 MHz frequency as default.

**Hyper DIMM support is subject to the physical characteristics of individual CPUs. Some hyper DIMMs only support one DIMM per channel.

Refer to the Asus Website or the user manual for the Memory QVL (Qualified Vendors Lists).

Audio

Realtek® ALC898 8-channel High Definition Audio CODEC

Absolute Pitch 192khz / 24bit True BD Lossless Sound

BD Audio Layer Content Protection

DTS UltraPC II

DTS Connect

Supports Jack-Detection, Multi-Streaming and Front Panel Jack-Retasking

Optical S/PDIF Out port at back I/O

Bluetooth & Wireless Data Network

BT GO 3.0!

Bluetooth v3.0 + HS (Bluetooth v2.1+EDR & Wi-Fi 802.11 b/g/n)

ASUS BT GO ! Utility

LAN

Dual Gigabit LAN controllers — 802.3az Energy Efficient Ethernet (EEE) appliance

Intel® 82579V Gigabit LAN — Dual interconnect between the Integrated LAN controller and Physical Layer (PHY)

Realtek® 8111E Gigabit LAN controller

Erweiterungssteckplätze

3 x PCI Express 3.0 x16 slots (Dual at x16/ x16 mode; Triple at x16/ x8/ x8 mode)

1 x PCI Express 3.0 x16 @ x8 slot

2 x PCI Express 2.0 x1 slots

Multi-Graphics Technology

Supports NVIDIA® 3-Way SLI™ Technology

Supports AMD® Quad-GPU CrossFireX™ Technology

Storage Interface

by Intel® X79 Express Chipset      2 x SATA 6 Gb/s ports with RAID 0, 1, 5, 10 support; 4 x SATA 3 Gb/s ports with RAID 0, 1, 5, 10 support

by Marvell® 9128 controller      2 x SATA 6Gb/s ports

ASMedia® 1061 SATA controller      2 x Power eSATA 6Gb/s ports

USB

8 x USB 3.0/2.0 ports (6 ports at back panel, 2 ports at mid-board for front panel support) with 1 additional VIA SuperSpeed USB hub controller

12 x USB 2.0/1.1 ports (4 ports at back panel, 8 ports at midboard)

Interne I/O Anschlüsse

1 x 24-pin EATX main power connector

1 x 8-pin EATX 12V power connector

4 x SATAIII 6Gb/s connectors (gray)

4 x SATAII 3Gb/s connectors (blue)

1 x 4-Pin CPU fan connector

1 x 4-Pin optional CPU fan connector (CPU_OPT)

4 x 4-Pin Chassis fan connectors

1 x System Panel (Q-Connector)

1 x front panel audio header

1 x S/PDIF Out header

1 x USB 3.0/2.0 connector supports additional 2 USB ports (19-pin)

4 x USB 2.0/1.1 connectors support additional 8 USB ports

1 x Clear CMOS switch

1 x VRM Test Switch

1 x MemOK! button

1 x EPU switch

1 x TPU switch

1 x Power-on switch

1 x Reset switch

1 x Bluetooth v3.0 + HS header

Rückseite I/O Panel

2 x Power eSATA 6Gb/s ports (green)

1 x Optical S/PDIF Out port

1 x Bluetooth v3.0 + HS module (Bluetooth v2.1 module & Wi-Fi antenna port)

1 x USB BIOS Flashback button

6 x USB 3.0/2.0 ports (blue)

4 x USB 2.0/1.1 ports (white port can be switched to USB BIOS Flashback)

2 x LAN RJ-45 ports

8-channel Audio I/O

BIOS

64 Mb Flash ROM, UEFI BIOS, PnP, DMI 2.0, WfM 2.0, SM BIOS 2.6, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

Manageability

WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE

Einzigartige Funktionen

ASUS Dual Intelligent Processors 3 with New DIGI+ Power Control

CPU Power       Industry leading Digital 16+4 Phase Power Design; ASUS CPU Power Utility

DRAM Power       Industry leading Digital 2+2 Phase Power Design; - ASUS DRAM Power Utility

ASUS TPU       Auto Tuning, TurboV, TPU switch

ASUS EPU       EPU, EPU switch

ASUS BT GO!       Folder Sync, BT Transfer, Shot & Send, BT to Net, Music Player, Personal Manager, BT Turbo Remote

ASUS Exclusive Features       ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface, ASUS SSD Caching, BT GO 3.0!, USB 3.0 Boost, Front Panel USB 3.0 Support, MemOK!, AI Suite II, Ai Charger

ASUS Quiet Thermal Solution       ASUS Fanless Design: Heat-pipe solution, ASUS Fan Xpert+

ASUS EZ DIY       USB BIOS Flashback, ASUS O.C. Profile, ASUS MyLogo 2, Percision Tweaker 2, ASUS CrashFree BIOS 3, ASUS EZ Flash 2, Multi-language BIOS

ASUS Q-Design       ASUS Q-Code, ASUS Q-Shield, ASUS Q-Slot, ASUS Q-DIMM, ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED), ASUS Q-Connector

Einzigartige Overclock-Funktionen

Precision Tweaker 2       vCore: Adjustable CPU voltage at 0.005V increment, vTTCPU: Adjustable I/O voltage at 0.00625V increment, vCCSA: 255-step system agent voltage control, vDRAM Bus: 160-step Memory voltage control, vPCH: 96-step Chipset voltage control, vCPU_PLL: 48-step CPU & PCH PLL voltage control

SFS (Stepless Frequency Selection)       BCLK/PEG frequency tuning from 80MHz up to 300MHz at 0.1MHz increment

Overclocking Protection       ASUS C.P.R.(CPU Parameter Recall)

Form Factor

ATX form factor; 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Lieferumfang

Das Mainboard inkl. Blende * Ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
