Produktbeschreibung

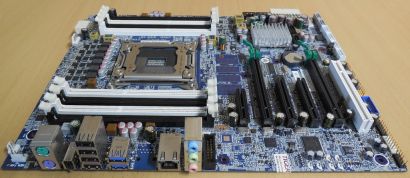

HP Z420 Workstation Mainboard 708615-001 708615-601 618263-003 Rev 0W Sockel LGA 2011
Dieses Mainboard kann nur ins passende Gehäuse vom HP Z420 oder baugeich eingebaut und mit dem entsprechenden Netzteil in Betrieb genommen werden!
Technische Daten
Hersteller HP (Hewlett Packard)
Model PCB FAB Rev. 1.2
P/N SP# 708615-001 / 708615-601 AS# 618263-003 Rev. 0W
Weitere Bezeichnungen FMB-1101
Geeignet für HP Z420 Workstation oder baugleich
CPU-Unterstützung
Intel® Xeon® Processor E5-1680 v2 3.0GHz 25MB 1866 MT/s 8 Cores Hyper-Threading Intel® vPro Technology (Intel® Turbo Boost Technology 4,9)
Intel® Xeon® Processor E5-2650 v2 2.6 20MB 1866 MT/s Hyper-Threading Intel® vPro Technology (Intel® Turbo Boost Technology 4,8)
Intel® Xeon® Processor E5-1660 v2 3.7 15MB 1866 MT/s 6 Cores Hyper-Threading Intel® vPro Technology (Intel® Turbo Boost Technology 2,3)
Intel® Xeon® Processor E5-1650 v2 3.5 12MB 1866 MT/s 6 Cores Hyper-Threading Intel® vPro Technology (Intel® Turbo Boost Technology 1,4)
Intel® Xeon® Processor E5-1620 v2 3.7 10MB 1866 MT/s 4 Cores Hyper-Threading Intel® vPro Technology (Intel® Turbo Boost Technology 0,2)
Intel® Xeon® Processor E5-1607 v2 3.0 10MB 1600 MT/s 4 Cores Intel® vPro Technology
Intel® Xeon® Processor E5-1620 3.6 10MB 1600 MT/s 4 Cores Hyper-Threading Intel® vPro Technology (Intel® Turbo Boost Technology 2,3)
Intel® Xeon® Processor E5-1603 2.8 10MB 1066 MT/s 4 Cores Intel® vPro Technology
Sockel Intel Single LGA 2011
CPU bus speed QPI: Up to 8.0 GT/s
Super I/O controller Nuvoton NPCD379H (SIO-12)
RAM 8 x DIMM slots; Up to 64 GB (8x8GB) ECC unbuffered DDR3-1866 (Transfer rates up to 1866 MT/s) (600W PSU chassis); Up to 32 GB (8x4GB) ECC unbuffered DDR3 1866 MT/s (400W PSU chassis); 4 channels per CPU
Each processor supports up to 4 channels of DDR3 memory. To realize full performance at least 1 x DIMM must be inserted into each channel.
LAN Integrierte Intel® GbE 10/100/1000 Mb/s Netzwerkverbindung
Sound Integriertes HD-Audio mit Realtek ALC262 Codec
USB3.0 max. 4 x USB3.0 (2 extern, 2 intern)
USB2.0 max. 12x USB2.0 (4 extern, 8 intern)
Erweiterungssteckplätze 2 x PCI Express Gen3 x16 mechanical/electrical; 1 x PCI Express Gen3 x8 mechanical/electrical; 1 x PCI Express Gen2 x8 mechanical/x4 electrical; 1 x PCI Express Gen2 x4 mechanical/x1 electrical; 1 x Legacy PCI
Intern Echtzeituhr/Kalender mit Batteriepufferung
2 x SATA III 6Gb/s Ports
4 x SATA II 3Gb/s Ports AHCI
4 x SATA II 3Gb/s Ports SCU
1 x 4-pin Memory FAN Connector
1 x 3-pin Chassis Intrusion Sensor Connector
1 x 5-pin CPU0 FAN Connector
1 x 4-pin Front FAN Connector
1 x 4-pin Rear FAN Connector
1 x Audio Front Panel Connector
4 x USB2.0 Connectoren für weitere USB2.0 Ports
1 x Front USB3.0 Connector
1 x Front IEEE1394a Connector
1 x Internal Speaker Connector
1 x Serial port Connector
1 x Front Panel PB/LED Connector
1 x HDD LED Connector
1 x HP Speziell 18-pin Main Power Connector
1 x 8-pin CPU/MEM Power Connector
1 x Chassis Solenoid Lock Connector
1 x Clear CMOS Switch
1 x Password Jumper
1 x ME/AMT Flash Override Jumper
Externe Anschlüsse 1 x PS/2 keyboard, 1 x PS/2 mouse, 1 x IEEE1394a Firewire, 1 x LAN, 4 x USB2.0, 2 x USB3.0, 1 x Line-In, 1 x Line-Out, 1 x Mikrofon, 1 x Rear Power Button/LED
Formfaktor
Convertible Minitower; ATX ca. 24.384 x 30.48 cm (9.6 x 12 in)
Lieferumfang
Nur das HP Workstation Z420 Mainboard * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
