Abit BP6 V1.0 Dual Sockel PGA 370 Mainboard +Blende 2x ISA IDE-RAID AGP PCI*m657

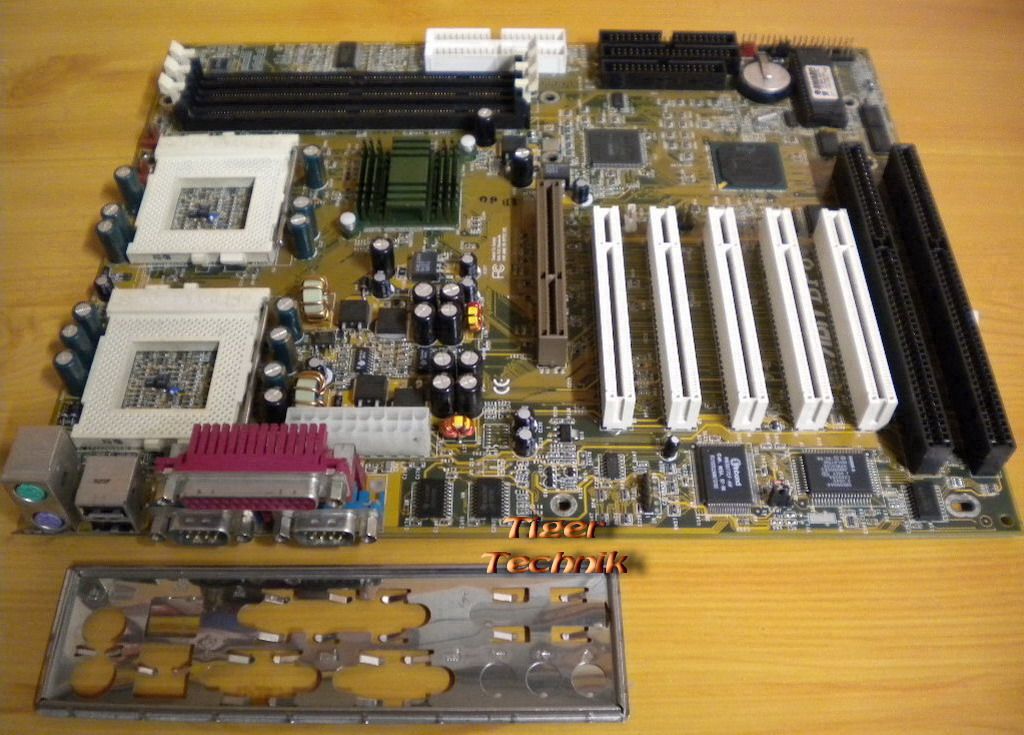

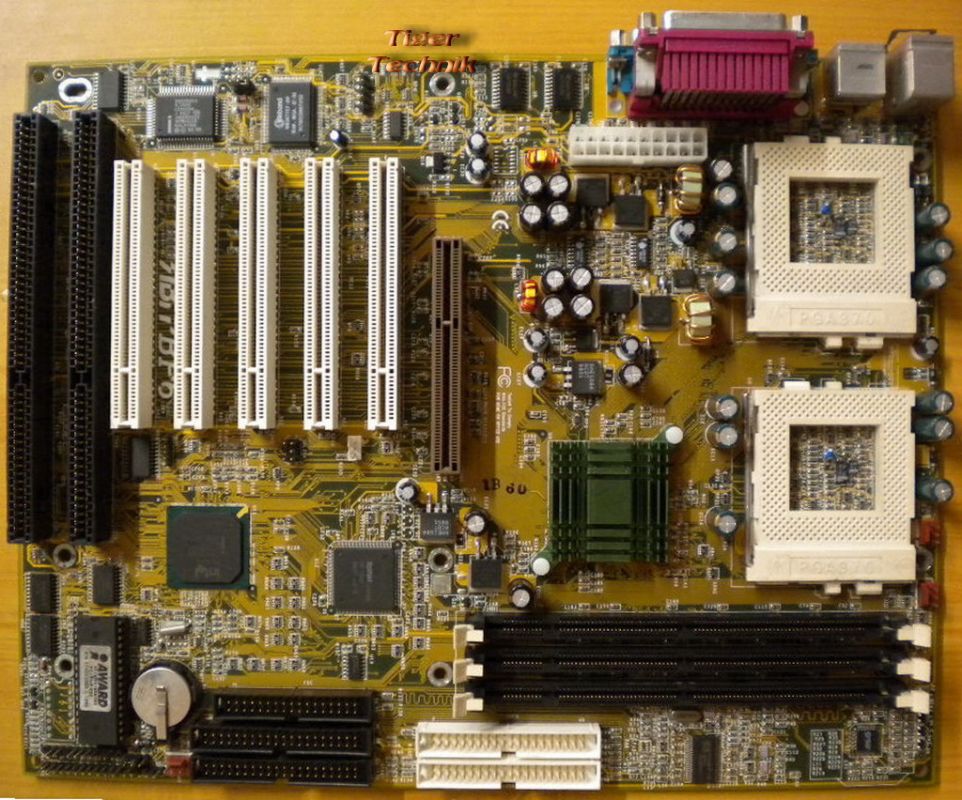

Abit BP6 V1.0 Dual Sockel PGA 370 Mainboard + Blende

2x ISA IDE-RAID AGP PCI

Technische Daten

CPU

Zwei Sockel 370 CPU´s werden unterstützt, allerdings nur:

Intel Celeron 300A-533MHz (66MHz FSB, PPGA Models z.B. Mendocino)

Chipset

Intel 440BX (Seattle, FW82443BX) / PIIX4E (FW82371EB)

NB/SB interconnection via PCI with 133 MB/s

Supports FSB 66/100 (66/100 MHz SDR)

Supports Advanced Configuration and Power Interface (ACPI), Symmetric Multi-Processing (SMP), Universal Serial Bus (USB 1.1), up to AGP 2x (AGP 1.0, 3.3V), PCI v2.1, ISA, IDE/PATA with up to UDMA33

PATA UDMA66 RAID

Supports 2 channels IDE UDMA66

Connected via PCI

Memory

3x 168-Pin DIMM sockets supporting SDRAM

Supports up to 3 DIMMs PC 66/100

Supports up to 256 MB per DIMM and max. 768 MB RAM Total

Supports ECC, Parity

ABIT Engineered

ABIT SoftMenu™ II Technology

Internal I/O Connectors

1 x AGP, 5 x PCI Slots and 2 x ISA Slots

1 x Floppy Port supports up to 2.88MB

2 x Ultra DMA 33 Connectors

2 x Ultra DMA 33 / 66 Connectors (HPT366)

1 x WOL header + 1x  WOR header

1 x SMB header

1 x Creative SB-Link header

1 x IrDA TX/RX header

Back Panel I/O

1 x PS/2 Keyboard, 1 x PS/2 mouse

2 x Serial, 1 x Parallel

2 x USB 1.1

BIOS

Award Modular BIOS v4.51PG

Supports Plug-and-Play (PNP), Advanced Power Management (APM), MultiProcessor Specification (MPS 1.1/1.4), Advanced Configuration and Power Interface (ACPI), Desktop Management Interface (DMI)

Miscellaneous

ATX form factor

20 pin ATX power connector

Winbond W83782D hardware monitoring chip

Winbond W83977EF-AW Super I/O chip

Intel S82093AA APIC chip

ICS 9248AF-90 clock generator (PLL)

2x Cherry Semiconductor CS51313 CPU Buck Controller

3x 3-pin FAN headers

9x mounting holes

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
