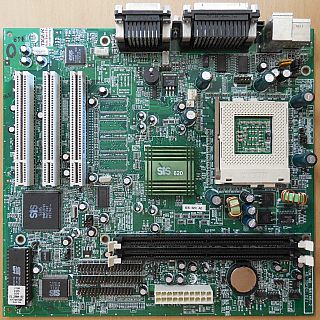

Acer Power SE V76M Mainboard +Blende Sockel 370 PCI Retro Serial USB SDRAM*m1037

Acer Power SE V76M Mainboard + Blende Sockel 370 PCI Retro Serial USB SDRAM

Technische Daten

CPU

Socket 370 for Intel® CeleronTM processor

Supports up to 533MHz Celeron Mendocino with 128KB second-level Cache (Möglicherweise Bios Update nötig!)

Chipset

SIS 620 A2 Northbridge + SIS 5595 Southbridge

Front Side Bus

66MHz clock is supported

Memory

Supports two 168-pin unbuffered SDRAM DIMMs

Supports a maximum memory size of 256MB

Expansion Slots

3 x PCI slots

On-Board IDE

An IDE controller on the SIS Chipset provides IDE HDD/CDROM with PIO, Bus Master and Ultra DMA/66 operation modes. Can connect up to four IDE devices.

Video

3-D Super AGP video accelerator with 8MB shared-frame buffer, embedded in the Northbridge controller

Audio

ESS Solo-1 ES1938S Integrated Audio Codec

USB

2 x USB1.X ports

Back Panel I/O Ports

1 x Parallel (SPP/EPP/ECP)

1 x Serial (COM)

1 x VGA

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x Game/Midi

2 x USB

1 x Audio I/O (Line-Out, Line-In, Microphone)

Internal I/O Connectors

1 x USB_EXT connector

1 x COM 1 connector

1 x CPU temperature sensor connector

1 x JP1 CPU Type Selector Jumper

1 x JP2 CPU/DRAM Frequency Selector Jumper

1 x JP6 Password Check Jumper

1 x 20-pin ATX Power connector

1 x 3-pin CPU Fan connector

1 x 2-pin CPU Fan connector

2 x IDE connectors

1 x Floppy Disk connector

1 x Buzzer

1 x Modem ring-in connector

1 x Internal Speaker connector

1 x CD-In connector

1 x Voice Modem connector

1 x Power Switch connector

1 x Power LED connector

1 x Turbo LED connector

1 x Reset button connector

1 x HDD LED connector

1 x Wake-Up on LAN connector

1 x Intrusion alarm detector connector

BIOS

The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically

The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications

ACPI (Advanced Configuration and Power Interface) feature

Other Features

Software Shutdown support for Windows 98

Power Management

USB support

Hardware Monitoring

Dimension

MicroATX Form Factor; 24.4cm (L) x 22.5cm (W)

Lieferumfang

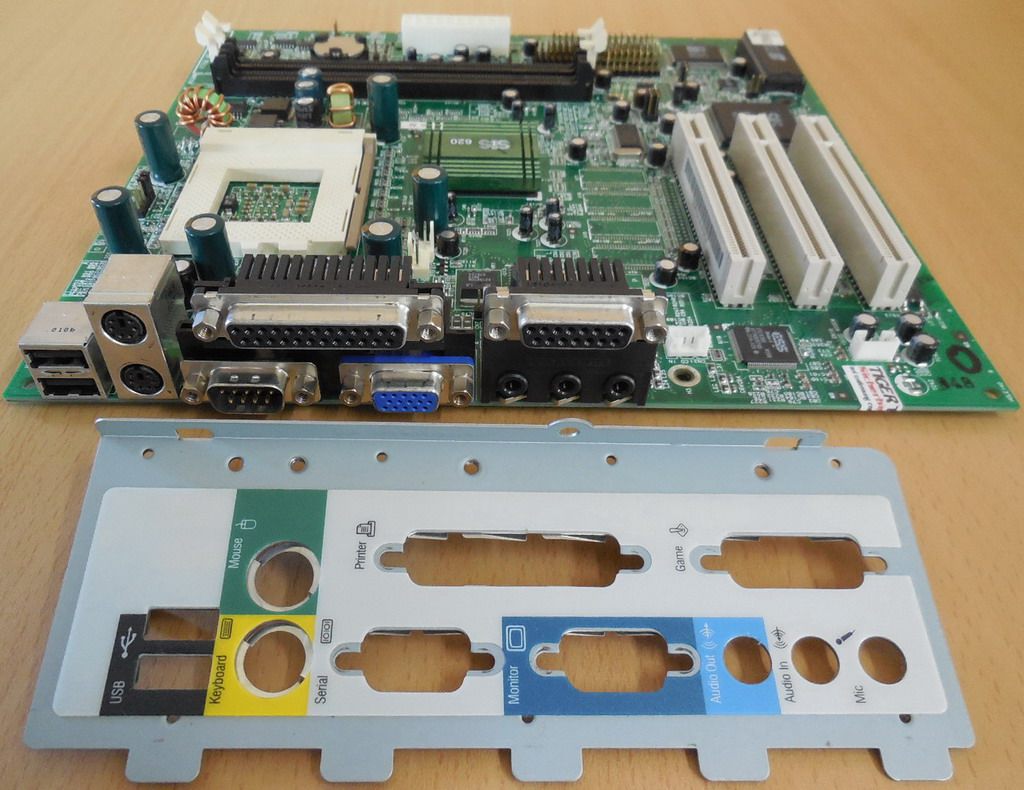

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
