Gigabyte GA-6VX7-4X Rev 1.2 Mainboard +Blende Sockel 370 AGP PCI Audio USB* m694

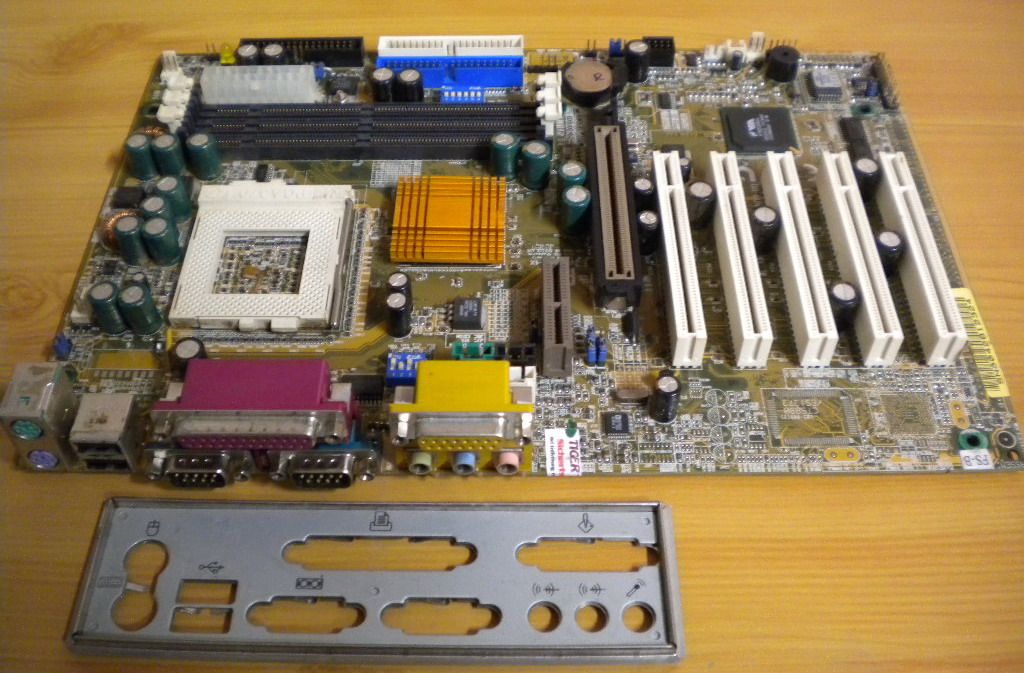

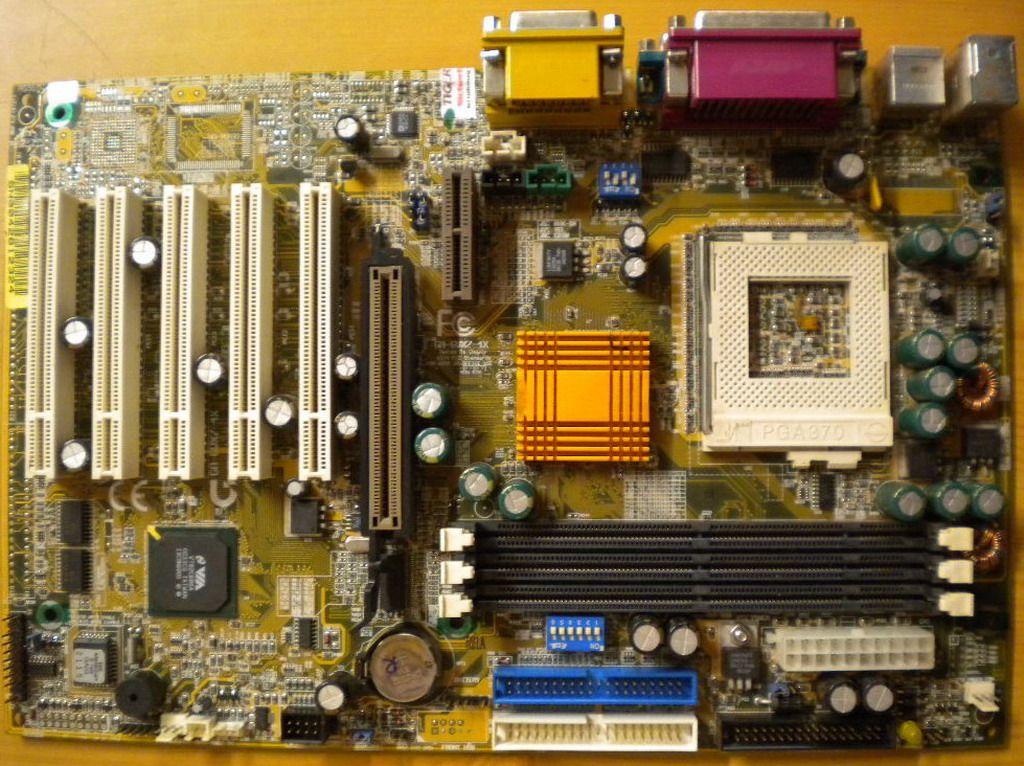

Gigabyte GA-6VX7-4X Rev 1.2 Mainboard + Blende

Sockel 370 AGP PCI Audio USB

Technische Daten

Prozessor

Socket 370 for Intel® and other compatible processors

Supports CPU multiplier 3.0~8.0 for future processors

Auto/66/75*/83*/100/112*/124*/133/140*/150* MHz FSB

AUTO Detect CPU Voltage

Chipsatz

VIA Apollo Pro Family AGPset; AC97 codec

Arbeitsspeicher

8MB to 1.5GB SDRAM size

3 x 3.3V DIMM sockets

Supports 8/16/32/64/128/256/512 MB SDRAM DIMM module

Supports ECC type DIMM module (72bits)

Erweiterungssteckplätze

1 x AMR (Audio Modem Riser) slot

1 x AGP slot supports 2X / 4X mode

5 x PCI slots support 33MHz & PCI 2.2 compliant

I/O

2 x Ultra DMA 33/66 Bus Master IDE ports on board

1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board

1 x Joystick, 1 x Line-in, 1 x Line-out, 1 x MIC on board

2 x USB ports on board

2 x USB ports by cable (optional accessary)

IrDA TX / RX Header ready

H/W Überwachung

Auto speed down and alarm when CPU overheat or fan failure (OS independent & driverless)

3 fan power & speed detection connectors

System health status detect & report by BIOS

H/W detect +5V, +12V, CPU voltage & CMOS battery status

BIOS

2Mbit flash RAM

AMI BIOS with enhanced ACPI feature for PC98/Win98 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions

IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable

Form Factor

ATX , 4 layer PCB (30.5*20.3 cm)

Andere Funktionen

Suspend-To-RAM (STR)

Includes Wake-On-LAN header (WOL); Includes Wake-On-Ring (WOR)

Supports Internal / External modem wake on

Poly fuse for keyboard, USB & game overcurrent protection

Stromversorgung

ATX power connector

Power-on by LAN, RTC, Modem & Switch

Power-off by Windows 98 shut down & Switch

Wake-up by USB device

Suspend / Wake-on by ACPI & APM device

AC recovery ON/OFF control; 3 level ACPI LED support

Lieferumfang

Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
