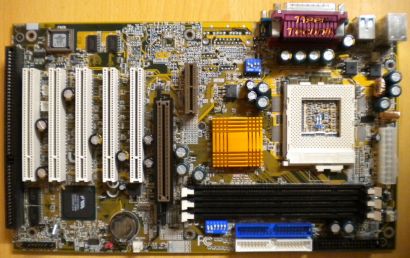

Gigabyte GA-6VXC7-4X Rev 3.0 Mainboard +Blende Sockel 370 PIII AGP PCI ISA* m321

Gigabyte GA-6VXC7-4X Rev 3.0 Mainboard + Blende

Sockel 370 Intel Pentium III AMR AGP PCI ISA

Technische Daten

Hersteller: Gigabyte

Model: GA-6VXC7-4X Rev. 3.0

Sockel: Intel 370

Form Factor 30.5 cm x 18.0 cm ATX size form factor, 4 layers PCB.

CPU:

Socket 370 processor

Intel Pentium 3 100/133MHz FSB, FC-PGA

Intel CeleronTM 66MHz FSB, FC-PGA

VIA Cyrix III 100/133MHz FSB,

2nd cache in CPU (Depend on CPU)

Chipset: VT82C694X (VIA Apollo Pro 133A) + VT82C686A

Clock Generator

ICS 9248DF-39

66/100/133 MHz system bus speeds (PCI 33MHz)

75/83/112/124/140/150 MHz system bus speeds (PCI 44MHz) (reserved)

Memory

3x 168-pin DIMM sockets.

Supports PC-100 / PC-133 SDRAM and VCM SDRAM

Supports up to 1.5GB DRAM

Supports only 3.3V SDRAM DIMM

Supports 72bit ECC type DRAM integrity mode.

I/O Control:  VT82C686A

Slots

1x AGP slot supports 4X mode & AGP 2.0 compliant

5x PCI slot supports 33MHz & PCI 2.2 compliant

1x AMR(Audio Modem Riser) slot

1x 16-bit ISA Bus slots

On-Board IDE

2 IDE bus master (DMA 33/ ATA 66 )IDE ports for up to 4 ATAPI devices

Supports PIO mode 3, 4 (UDMA 33/ATA 66) IDE & ATAPI CD-ROM

On-Board Peripherals

1 floppy port supports 2 FDD with 360K, 720K,1.2M,       1.44M and 2.88M bytes

1 parallel ports supports SPP/EPP/ECP mode

2 serial ports (COM A & COM B)

2 USB ports

1 IrDA connector for Fast IrDA

Hardware Monitor

CPU / System fan revolution detect

CPU / System temperature detect

System voltage detect (Vcore,Vcc3,Vcc,+12V)

CPU overheat shutdown detect

ACPI Shutdown Temperature

PS/2 Connector:  PS/2 Keyboard interface and PS/2 Mouse interface

BIOS: Licensed AMI BIOS, 2M bit flash ROM

Additional Features

Support Wake-On-LAN (WOL)

Support Internal / External Modem Ring On.

Includes 3 fan power connectors.

Poly fuse for keyboard over-current protection

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
