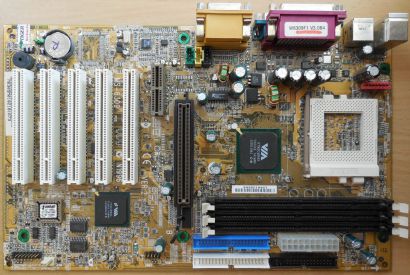

MSI MS-6309 Ver 2 Mainboard +Blende Sockel 370 SD RAM AGP PCI Audio IDE USB*m250

MSI MS-6309 Ver 2 Mainboard + Blende Sockel 370 SD-RAM AGP PCI Audio IDE USB

Technische Daten

CPU

Support Socket 370 for Intel® Pentium® III (FC-PGA)/Celeron™ (FC-PGA) processor

Support 500MHZ, 553MHz, 600MHz,...1.1GHz

Chipset

VIA® 694X chipset. (510 BGA)

- Support 66/100/133MHz FSB

- AGP 4x/2x and PCI plus Advanced ECC Memory Controller

- Support PC100/133 SDRAM, VCM technology

VIA® VT82C686B chipset. (352 BGA)

- Advanced Power Management Features

- Integrated Super I/O (FDC, LPT, COM 1/2, and IR)

- DirectSound AC97 Audio

- Dual bus Master IDE Ultra DMA33/66/100

- ACPI

Clock Generator

66.6MHz, 100MHz and 133MHz clocks are supported

Main Memory

Support six memory banks using three 168-pin unbuffered DIMM

Support a maximum memory size of 1.5GB (32M x 8)

Support ECC (1-bit Error Code Correct) function

Support 3.3v SDRAM DIMM

Slots

One AGP (Accelerated Graphics Port) slot

- AGP specification compliant

- AGP 66MHz 3.3v/1.5v for 2x/4x device support

One AMR (Audio Modem Riser) slot

Five 32-bit Master PCI Bus slots and one 16-bit ISA bus slots

Supports 3.3v/5v PCI bus Interface

On-Board IDE

An IDE controller on the VIA® VT82C686B Chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 33/66/100 operation modes. Can connect up to four IDE devices.

AC’97 Compliant Audio Chip Integrated (Software Audio)

VIA VT1611A Audio codec

AC’97 audio support for SoundBlaster Pro

FM synthesis legacy audio

Interne Anschlüsse

Echtzeituhr/Kalender mit Batteriepufferung

2 x IDE Connectors for up to 4 devices

1 x Floppy/FDD Connector

1 x CPU FAN Connector (3-pin)

1 x System FAN Connector (3-pin)

1 x CPU FSB Switch

1 x Wake-on-LAN Connector

1 x Wake-on-Ring Connector

1 x CD-IN Connector

1 x AUX-IN Connector

1 x MODEM-IN Connector

1 x CMOS Jumper

1 x Front USB Connector for 2 additional ports

1 x Front Panel Connector

Buzzer

20-pin ATX Power Connector

Externe Anschlüsse

1 x PS/2 Maus

1 x PS/2 Tastatur

2 x Seriell (COM A/B)

1 x Parallel (SPP/EPP/ECP)

2 x USB

3 x Audio Klinke Anschlüsse

1 x Gameport

BIOS

The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.

The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.

Dimension

ATX Form Factor 30.5cm (L) x 19.2cm (W) x 4 layers PCB

Mounting

6 mounting holes

Lieferumfang

Das Mainboard inkl. Blende * Ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
