Produktbeschreibung

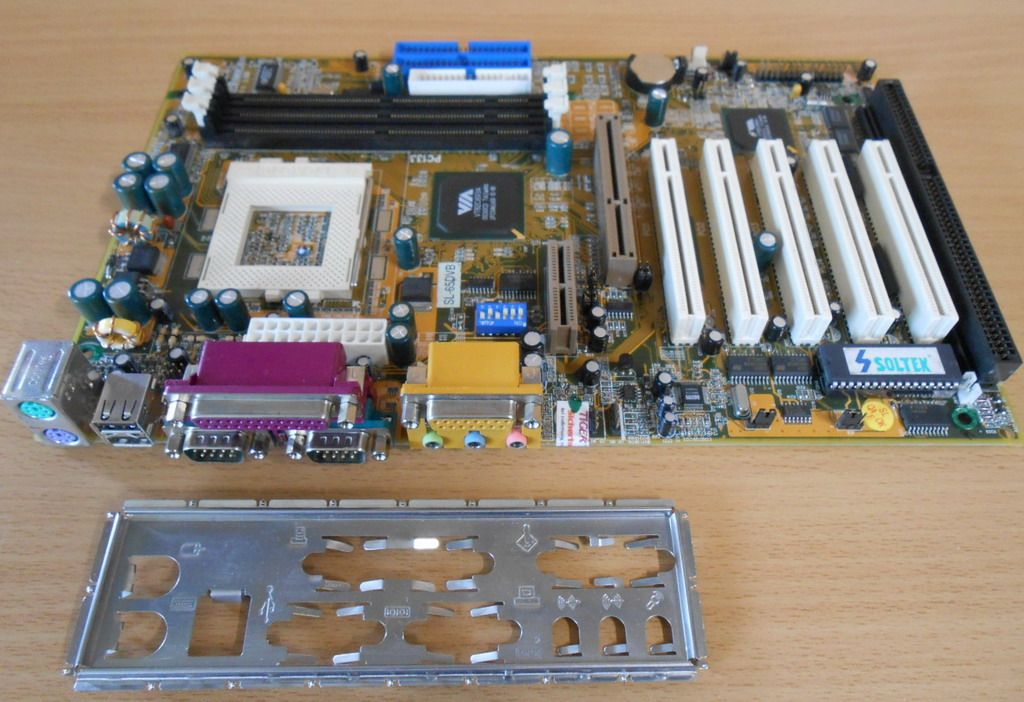

Soltek SL-65DVB Mainboard + Blende
Sockel 370 VIA Apollo ISA AGP PCI Audio
Technische Daten
CPU
Supports Intel® FC-PGA Pentium 3 TM up to 1GHz or above.
Supports Intel® FC-PGA 370 Celeron & PGA 370 Celeron up to 766MHz or above.
Supports VIA Cyrix !!! up to 600MHz.
Supports CPU voltage Auto-Detect circuit.
CHIPSET
North Bridge - VIA VT82C693A APOLLO PRO-PLUS.
South Bridge - VIA VT82C686A
ADVANCED HIGH-PERFORMANCE DRAM CONTROLLER
Supports FP, SDRAM, VCM memory types up to 3 DIMMS.
64-bit data width and 3.3V DRAM interface.
Supports up to 768MB memory space.
Different DRAM types may be used in mixed combinations.
PCI-2.2 compliant, 32 bit 3.3V PCI interface with 5V tolerant inputs .
DRAM interface synchronous with host CPU (66/100/133 MHz) or AGP (66MHz) for most flexible configuration.
DRAM interface may be faster than CPU by 33MHz to allow use of PC100 memory modules with 66MHz Celeron or use of PC133 with 100MHz Pentium III.
DRAM interface may be slower than CPU by 33 MHz to allow use of older memory modules with newer CPUs (e.g., PC66 memory modules with 100 MHz Pentium III).
FULL FEATURED ACCELERATED GRAPHICS PORT (AGP) CONTROLLER
AGP v2.0 compliant
Supports Sideband Addressing (SBA) mode (non-multiplexed address/data)
Supports 133MHz 2x mode for AD and SBA signaling
Pipelined split-transaction long-burst transfers up to 533 MB/sec
MULTI-I/O FUNCTION
Two Ultra DMA-33 / 66 Master Mode PCI EIDE ports (for 65DVB only).
Two UART’s for Complete Serial Ports.
One dedicated IR connector:
Third serial port dedicated to IR function either through the two complete serial ports or the third dedicated port Infrared-IrDA (HPSIR) and ASK (Amplitude Shift Keyed) IR.
Multi-mode parallel connector: Standard mode, ECP and EPP support.
Floppy Disk connector: Two FDDs with drive swap support .
Universal Serial Bus connector:
USB v1.1 and Intel Universal HCI v1.1 compatible.
Provides 2 build-in USB ports (another 2 internal USB ports for extensible purpose require an optional USB connect cable).
PS/2 Keyboard connector.
PS/2 Mouse connector.
EXTENSION SLOTS
Five PCI bus Mater slots.
One ISA slot.
One AMR slot.
One AGP 4x mode slot.
Three DIMM slots.
BIOS
Award BIOS Version 6.0.
Supports Plug & Play V1.0.
FLASH MEMORY for easy upgrade.
Supports BIOS writing protection.
Year 2000 compliant.
SOUND CONTROLLER
Sound Blaster Pro Hardware and Direct Sound Ready AC’97 Digital Audio Controller with Codec onboard.
POWER MANAGEMENT
ACPI 1.0 compliant (Advanced Configuration and Power Interface).
APM V1.2 compliant (Legacy power management).
System event monitoring with two event classes.
Supports PS/2 Keyboard & Mouse power on.
Supports Wake On LAN (WOL) & Wake On Modem.
Supports real time clock (RTC) with date alarm, month alarm, and century field.
FORM FACTOR
ATX from factor, 4 layers PCB.
Motherboard size 19.0cm X 30.5cm.
HARDWARE MONITORING
Programmable control, status, monitor and alarm for flexible desktop management
Five-positive voltage.
Two-temperature monitoring.
Three Fan-speed monitoring.
Lieferumfang
Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
Herstellerangabe / Produktsicherheit
Alle unsere hier angebotenen Produkte sind erstmalig vor dem 13.12.2024 in der EU in Verkehr gebracht worden und entsprechen den aktuellen Sicherheitsstandards.
Sie unterliegen nicht den neuen Anforderungen der GPSR.
