Chipset Intel 850/ICH2 CPU Socket Socket 423 CPU Supported Intel Pentium 4 processor (Supports 400MHz system data bus) Memory 4 x RIMM sockets max. 2GB Support PC600 or PC800 RDRAM and ECC PCI IDE PIO mode 4 EIDE channels up to 4 IDE devices UltraDMA/100 transfer rate up to 100MB/sec Super I/O 2 x NS16C550A compatible UARTs 1 x SPP/ECP/EPP parallel port External Connectors 2 x USB, 2 x DB-9, 1 x DB-25, 1 x PS/2 keyboard, 1 x PS/2 mouse, 1 x game/MIDI, 3 x Audio jacks Internal Connectors 1 x connector for 2 additional external USB, 1x IrDA, 2 x IDE, 1x Floppy, 3 x ATX power, 2 x fan, 1 x WOL,1 x WOR, 1 x opened chassis alarm, 3 x internal audio connectors Power Management ACPI and OS direct power management Wake-on event: RTC/USB Keyboard/Modem/LAN/Keyboard/Mouse Hardware Monitor System, processor temperature, voltage and fan speed Expansion Slots 1 AGP slot (Supports 1.5V AGP 4x) 5 PCI slots 1 CNR slot Audio On Board AC`97 Audio codec Other features ATX 12V power design on board to supports future CPU speed beyond 1.5GHz BIOS Award / 4Mbit Form Factors ATX, 6 layers 30.5 cm x 24.4 cm 12.05 inch. x 9.6 inch.
Lieferumfang

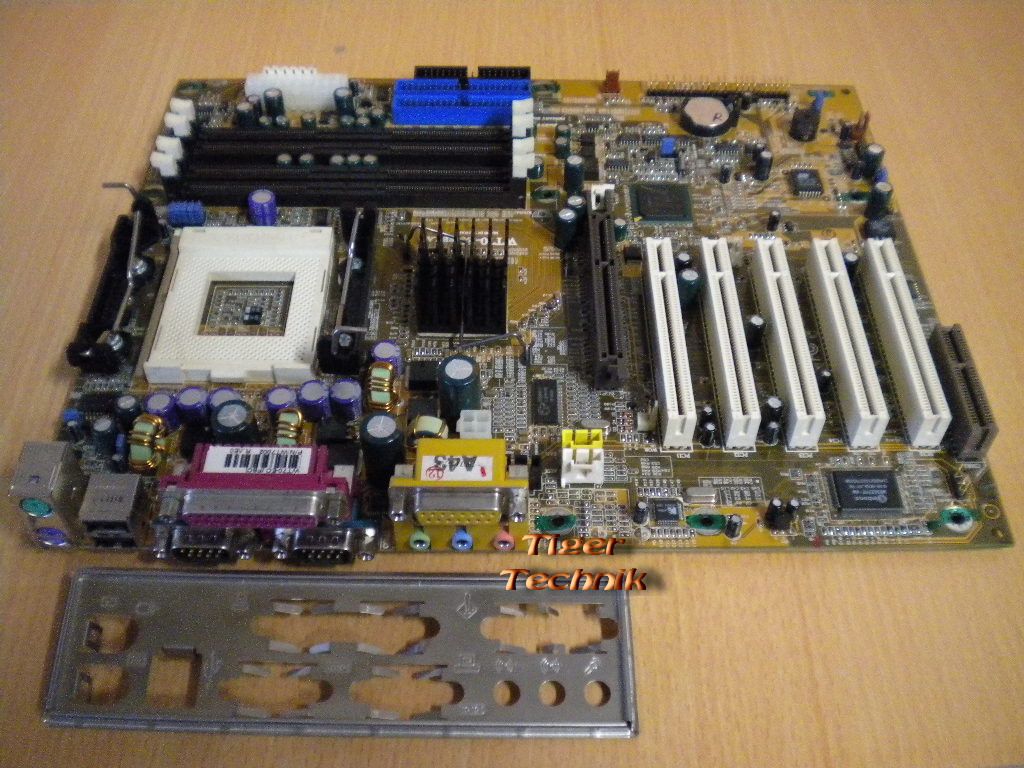

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
