ASRock P4VM8 Rev1.01 Mainboard +Blende Sockel 478 AGP 8X SATA VGA LAN Audio*m340

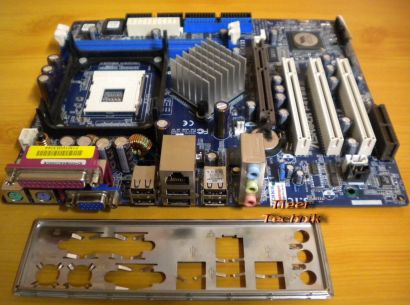

ASRock P4VM8 Rev1.01 Mainboard + Blende

Sockel 478 AGP 8X SATA VGA LAN Audio

Technische Daten

CPU

- Socket 478 for Intel® Pentium® 4/Celeron® processor

- FSB 800/533/400 MHz

- Supports Hyper-Threading Technology

- Prescott support

Chipset

- Northbridge: VIA® PM800

- Southbridge: VIA® 8237

Memory

- Supports DDR400/333 non-ECC, un-buffered memory

- DIMM slots: 2

- Max. capacity of system memory: 2GB

BIOS

- 4Mb AMI BIOS with ACPI, SM BIOS 3.0, PnP

Graphics

- Integrated UniChrome Pro 3D Graphics in VIA® PM800 chipset

- Shared Memory Max. 64MB (with the pre-condition of at least 256MB system memory)

Audio

- CMedia CMI9761 6 channel AC'97 audio codec

LAN

- VIA® 6103 10/100 Ethernet LAN PHY

- 802.3u, WOL supported

- Supports PXE

Slots

- 1 x AGP8X/4X slot, 1.5V

- 3 x PCI slots( PCI 2.2 compliance)

- 1 x AMR slot

Connector

- 2 x SeialATA 1.5Gb/s connectors supports RAID,0,1,JBOD, SATA HDD_Hotplug

- 2 x ATA 133/100/66 IDE connectors ( supports 4 x IDE devices)

- 1 x Floppy connector

- CPU/Chassis FAN connectors

- 20 pin ATX power connector

- 4 pin 12V power connector

- IDE LED connector

- CD/AUX audio in header

- Front panel audio connector

- 1 x USB 2.0 port pin header

- 1 x COM port pin header

Rear Panel I/O

ASRock I/O Plus

- 6 x USB2.0 ports

- 1 x RJ45 LAN port

- 1 x VGA port

- 1 x PS2 Keyboard connector

- 1 x PS2 Mouse connectors

- 1 x Parallel port (LPT1)

- 1 x Audio ports ( Line In/Out, Mic In)

Unique Feature

Hybrid Booster:

- CPU Frequency Stepless control

- ASRock U-COP

- Boot Failure Guard (B.F.G)

Form Factor

- Micro ATX, 244mm x 203mm

OS

- Microsoft® Windows® 98SE/ME/2000/XP compliant

Certifications

- FCC, CE

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
