Sockel 478 AGP DDR VGA Audio LAN
Technische Daten
CPU
- Socket 478, Intel® Pentium® 4(Northwood/Prescott)/Celeron
- FSB 533/400 MHz
Chipset
- Intel® 845GV, Supports Hyper-Threading Technology
Memory
- 2 x DDR slots, DDR333/266 non-ECC, un-buffered memory
- Max. capacity of system memory: 2GB
BIOS
- 2Mb AMI BIOS with ACPI, SM BIOS 3.0, PnP
Graphics
- Int. Intel® Extreme Graphics
- Memory Max. 64MB
Audio
- Chip AC97 CODEC
- Channel 5.1 CH
LAN
- 802.3u, 10/100 Ethernet PCI LAN, WOL supported
- Supports PXE
Slots
- ASRock A.G.I. 8X - VGA upgrade slot, (AGP8X/4X compatible)
- 3 PCI slots, PCI 2.2
- AMR 1 slots
Connector
- IDE 2 x ATA 100/66/33
- Floppy 1 connector
- SIR/CIR 1/0
- CPU/Chassis FAN connectors
- 20 pin ATX power connector
- IDE LED connector
- CD/AUX/ audio in
- Front panel audio connector
- 1 x USB 2.0 connector supports additional 2 USB 2.0 ports
Rear Panel I/O
ASROCK I/O
- PS2 Keyboard x1
- PS2 Mouse x1
- USB2.0 4 ports default on rear panel + 2 ports upgrade VIA® header
- Parallel x1
- Game/MIDI x1
- LAN port RJ45 x1
- Audio I/O Line In/Line Out/Mic.
- VGA x1
Unique Feature
Hybrid Booster:
- CPU Frequency Stepless control
- ASRock U-COP
- Boot Failure Guard (B.F.G)
- AGP/PCI frequency control
Form Factor
- Micro ATX
OS
- Microsoft® Windows® 98SE/ME/2000/XP compliant
Lieferumfang

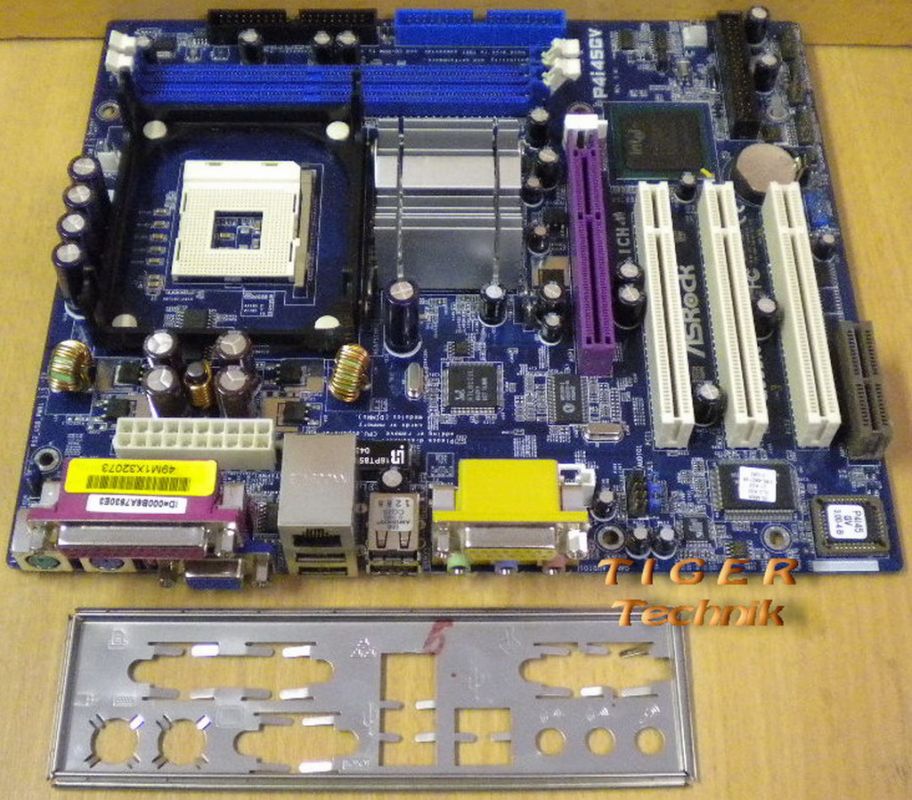

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
