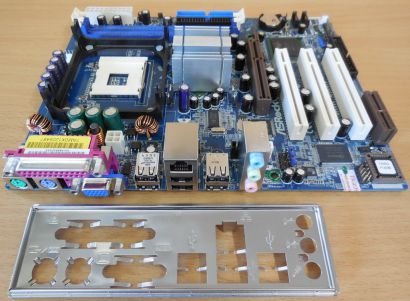

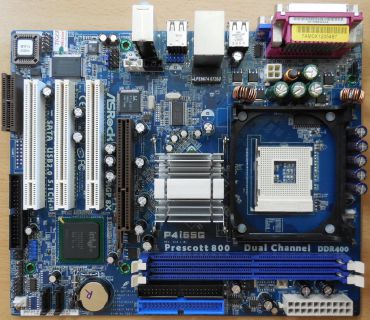

ASRock P4i65G Rev 1.01 Mainboard NEU OVP Sockel 478 AGP DDR VGA Sound LAN* m600

ASRock P4i65G Rev 1.01 Mainboard NEU OVP Sockel 478 AGP DDR VGA Sound LAN

Technische Daten

CPU

Socket 478 for Intel® Pentium® 4 / Celeron® D (Prescott, Northwood, Willamette) processors

FSB 800/533/400MHz

Supports Hyper-Threading Technology; Untied Overclocking Technology

Chipset

Northbridge: Intel® 865G

Southbridge: Intel® ICH5

Memory

Dual Channel DDR memory technology

2 x DDR DIMM slots

Supports DDR400/333/266 non-ECC, un-buffered memory

Max. capacity of system memory: 2GB

BIOS

4Mb AMI BIOS

AMI Legal BIOS

Supports "Plug and Play"; Jumperfree

ACPI 1.1 Compliance Wake Up Events

SMBIOS 2.3.1 Support

Graphics

Integrated Intel® Extreme Graphics 2

DirectX 8.0

Max. shared memory 96MB

Audio

Cmedia 9761A 5.1 channel audio CODEC

LAN

Realtek PCI LAN 8101L

Speed: 10/100 Ethernet

Supports Wake-On-LAN, PXE

Slots

3 x PCI slots

1 x AGP 8X slot

1 x AMR slot

Connector

2 x SATA 1.5 Gb/s connectors (No Support for "RAID" and Hot Plug functions)

2 x ATA100 IDE connectors (support 4 x IDE devices)

1 x Floppy connector

1 x IR header

1 x COM header

CPU/Chassis FAN connectors

20 pin ATX power connector

4 pin 12V power connector

CD in header

AUX in header

Front panel audio connector

2 x USB 2.0 headers (support 4 USB 2.0 ports; 2 of them are shared with USB4_5)

Rear Panel I/O

1 x PS/2 Mouse Port

1 x PS/2 Keyboard Port

1 x VGA Port

1 x Parallel Port (ECP/EPP support)

6 x Ready-to-Use USB 2.0 Ports

1 x RJ-45 LAN Port

Audio Jack: Line in / Front Speaker / Microphone

Unique Feature

Hybrid Booster: CPU Frequency Stepless Control; ASRock U-COP; Boot Failure Guard (B.F.G.)

Support CD

Drivers, Utilities, AntiVirus Software (Trial Version)

Accessories

Quick Installation Guide, I/O Shield; 1 x Floppy Cable; 1 x ATA 100 Cable; 1 x SATA Data Cable; 1 x SATA 1 to 1 Power Cable; 1 x COM Port Bracket

Hardware Monitor

CPU Temperature Sensing

Chassis Temperature Sensing

CPU Overheat Shutdown to Protect CPU Life

CPU Fan Tachometer

Chassis Fan Tachometer

Voltage Monitoring: +12V, +5V, +3.3V, Vcore

Form Factor

Micro ATX Form Factor: 9.6-in x 7.8-in, 24.4 cm x 19.8 cm

OS

Microsoft® Windows® 98SE / ME / 2000 / XP compliant

Certifications

FCC, CE

Lieferumfang

Mainboard mit Zubehör laut Handbuch * NEU & OVP *

Abbildung ähnlich
