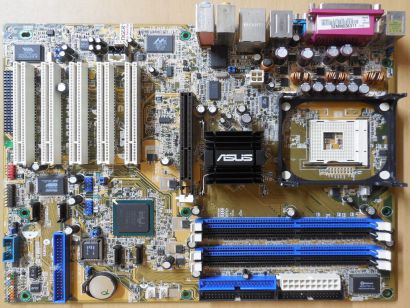

ASUS P4P800-E Deluxe Rev1.02 Mainboard +Blende Sockel 478 SATA AGP IDE RAID*m608

ASUS P4P800-E Deluxe Rev 1.02 Mainboard + Blende Sockel 478 AGP 8X DDR SATA IDE-RAID

Technische Daten

CPU

Socket 478 for Intel® Pentium® 4 / Celeron processors with speeds up to 3.2 GHz+

Supports Intel® Hyper-threading Technology

Supports Intel® Prescott CPU

Chipset

Intel® 865PE + Intel® ICH5R

Front Side Bus (FSB)

800/533/400 MHz

Memory

Dual-channel memory architecture

4 x 184-pin DDR DIMM sockets for up to 4GB unbuffered non-ECC DDR400/333/266 SDRAM memory

ASUS Hyper-Path Technology

Expansion slots

1 x AGP 8X (0.8V, 1.5V only)

5 x PCI

1 x ASUS WiFi slot for optional wireless LAN upgrade (nicht im Lieferumfang)

Storage

ICH5R SouthBridge supports

2 x UltraDMA 100/66/33

2 x Serial ATA with RAID 0, RAID 1 function

Promise® 20378 RAID controller supports

1 x UltraDMA 133  support for two drives

2 x Serial ATA

RAID 0, RAID 1, RAID 0+1 and Multi-RAID function

max. 10 Laufwerke möglich!

AI Audio

Realtek® ALC850 8-channel CODEC

Audio Sensing and Enumeration Technology

S/PDIF out interface support

AI Net

Marvell® 88E8001 Gigabit Ethernet controller

Virtual Cable Tester (VCT) Technology support

AI BIOS

ASUS CrashFree BIOS2

ASUS Q-Fan Technology

ASUS Post Reporter™

AI Overclocking

Intelligent CPU frequency tuner

ASUS JumperFree

CPU, Memory and AGP voltage adjustable

SFS (Stepless Frequency Selection) from 100MHz up to 400MHz at 1MHz increment

Adjustable FSB/DDR ratio. Fixed AGP/PCI frequencies

ASUS C.P.R. (CPU Parameter Recall)

Special features

Power Loss Restart

S/PDIF out interface support

IEEE 1394

VIA VT6307 IEEE1394 controller supports two IEEE 1394 connectors

USB

Maximum of 8 USB 2.0 ports

Rear panel I/O

1 x Parallel port

1 x Serial port

1 x Optical S/PDIF output port

1 x Coaxial S/PDIF output port

1 x PS/2 Keyboard port

1 x PS/2 Mouse port

1 x RJ45 port

4 x USB 2.0/1.1 ports

1 x IEEE 1394 port

8-channel audio I/O ports

Internal I/O

2 x USB 2.0 supports additional 4 USB 2.0 ports

CPU/Chassis/Power fan connectors

20-pin/4-pin ATX 12V power connectors

Chassis intrusion

IEEE 1394 connector

GAME/MIDI connector

CD/AUX/Modem audio connectors

Front panel audio connector

Serial port 2 connector

BIOS features

4Mb Flash ROM, AMI BIOS,  PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ASUS EZ Flash, ASUS Instant Music, ASUS MyLogo2, ASUS C.P.R., ASUS Multi-Language BIOS

Industry standard

PCI 2.2, PCI 2.3, USB 2.0

Manageability

WfM2.0, DMI 2.0, WOL, WOR, chassis intrusion

Form Factor

ATX form factor; 12 in x 9.6 in (30.5 cm x 24.5 cm)

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
