Acer S88M Mainboard mit Blende Veriton 7500G Origi

Produktbeschreibung

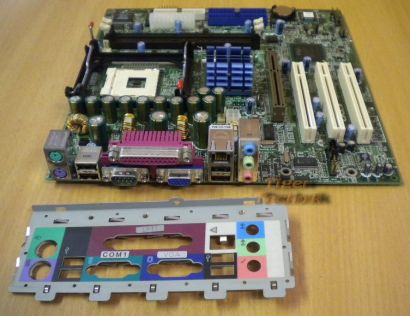

Acer S88M Mainboard mit Blende

Original Acer Veriton 7500G Ersatz !!!

Nur in Verwendung mit einem Acer Kühler sinnvoll.

Technische Daten:

The Veriton 3500, 5500, 7500 supports Intel ® Pentium IV (Willamette 478/Northwood) Flip Chip-Pin Grid Array 2 processor (FC-PGA2) based Micro ATX, IBM PC/AT compatible system with PCI bus.

The Veriton 3500G, 5500G, 7500G supports Intel ® Pentium IV (Willamette 478/Northwood) Flip Chip-Pin Grid Array 2 processor (FC-PGA2) based Micro ATX, IBM PC/AT compatible system with PCI/ AGPbus.

- Intel Pentium® IV processor with Intel NetBurst™ micro-architecture and integrated 256KB/ 512KB embedded L2 cache memory in Flip Chip 2 (FC)-mPGA 478 socket form factor, with supporting CPU clock up to 2.4GHz+.

- System Front Side bus speed:400/533 MHz for Brookdale G and 400MHz for Brookdale GL.

- Supports 2 DIMM sockets up to 2GB using DDR (Double Data Rate) SDRAM DIMM modules.

- Integrated LAN Controller (ICH4+PLC82562ET).

- 3.5-inch and 5.25-inch floppy disk drives.

- CD-ROM, DVD-ROM or CD-RW drive

- 1.5 V AGP interface with 4X SBA/ Data Transfer and 2X/ 4X Fast Write capability ( no AGP slot for Veriton 3500, 5500 and 7500).

- High capacity, Enhanced-IDE hard disk

- Power management features

- CPU SMM (System Management Mode), STOP clock control

- On-board PCI master enhanced local bus IDE (Embedded in 82801DB chipset).

- PIO mode 4

- Multiword DMA Mode 2

- Ultra DMA/33, Ultra DMA/66 & Ultra DMA/100 modes

- Plug-and-Play (PnP) feature

- ACPI 1.0 b Compliant Power management and Configuration Support

- Software shutdown for Windows 95/98SE/ME/2000/XP

- Hardware monitor function

- On-board DC-to-DC converter (VRM 9.0 spec)

- Supports USB 2.0 high-performance peripherals

- 128-bit graphics accelerator installed in the AGP Pro card slot (AGP slot: not available for Veriton 3500, 5500 and 7500)

- Cathode-ray tube (CRT) support

- Liquid crystal display (LCD) support (optional)

- An additional AGP card 1.5V slot, supports 1X, 2X and 4X

- 3-D quality audio system via onboard audio controller

- Audio-in/Line-in, Audio-out/Line-out, Headphone-out, Microphone-in, and Game/MIDI interface

NOTE:

The system has two microphone-in jacks (front and rear). However, you can not use both of them at the same time. By default, your system enables the microphone-in jack in front and disables the one at the back.

- One AGP and three PCI slots (AGP slot for Veriton 3500G, 5500G and 7500G only)

- USB and PS/2 compatible mouse and keyboard interfaces

- Two high-speed NS 16C550-compatible serial ports

- One multi-mode parallel port

- Six USB ports ( 2 available on front panel and 4 on rear panel) with Plug and Play function

- High-speed 56K V9.0 fax/data/voice PCI modem (optional)

- One RJ45 connector supports IEEE 802.3./802.3u 10Base-T/100Base-TX-compatible network with remote wake-up function (WfM 2.0 Complaint)

- 3 PCI slots + 2 DIMM slots+ 1 AGP slot (no AGP slot for Veriton 3500, 5500 and 7500)

- Upgradeable memory and hard disk

Human-centric design and ergonomics

- Mini-tower form factor

- Separate computer stand and rubber stands for quick and easy positioning
