Produktbeschreibung

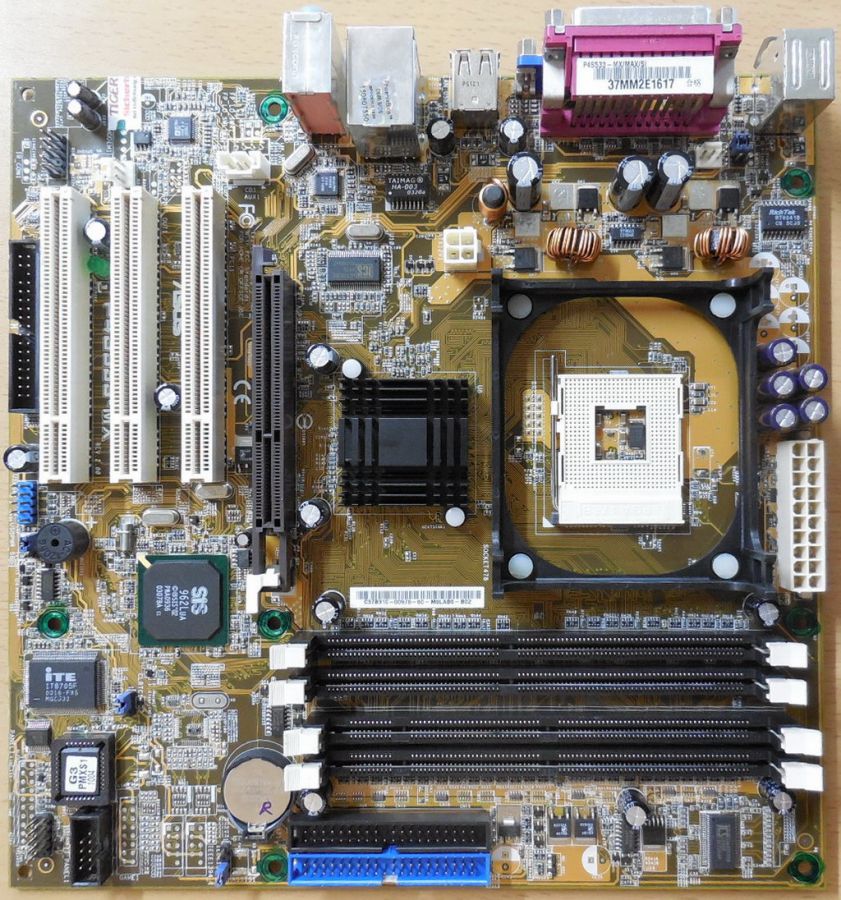

Asus P4S533-MX Rev2.00 Maxdata OEM Mainboard + Blende Sockel 478 AGP VGA Audio SD-Ram oder DDR
Technische Daten
CPU
Socket 478 for Intel® Pentium® 4/Celeron
On-die 512KB/256KB L2 cache with full speed
Supports Intel® Hyper-Threading Technology (since PCB R2.00 or later versions)
Chipset
SiS® 651
SiS® 962L
Front Side Bus (FSB)
533/400 MHz
Memory
2 x 184-pin DIMM sockets support for PC2700/2100/PC1600 non-ECC DDR DIMMs for up to 2GB memory
2 x 168-pin DIMM sockets support for PC133/PC100 non-ECC SDRAM DIMM for up to 2GB memory
Wahlweise nur DDR-RAM oder SD-RAM seperat nutzbar!
Expansion slots
1 x AGP 4X (1.5V only)
3 x PCI
VGA
Integrated 3D graphics controller in SiS 651 chipset
IDE
2 x UltraDMA 133/100/66/33 connectors
Audio
ADI AD1980 6-channel CODEC
LAN
SiS® 962L integrated 10/100 Mbps Fast Ethernet with Realtek external PHY
Special features
Power Loss Restart
Digital audio via an S/PDIF Out inteface
ASUS EZ Flash
CrashFree BIOS
Rear panel I/O
1 x Parallel port
1 x Video Sub-D port
1 x PS/2 keyboard port
1 x PS/2 mouse port
4 x USB 2.0/USB 1.1 ports
1 x RJ-45 port
1 x S/PDIF coaxial out
Line In/Line Out/Microphone ports
Internal I/O
1 x USB 2.0/1.1 connector for 2 additional USB 2.0 ports
CPU/Chassis fan connectors
20-pin/4-pin ATX 12V power connectors
Front Panel connector
Front Audio Panel connector
COM1 connector
BIOS features
2Mb Flash ROM, Award BIOS, TCAV, PnP, DMI2.0, WfM2.0, SM BIOS2.3, CrashFree BIOS, ASUS EZ Flash; Maxdata
Industry standard
PCI 2.2, USB 2.0
Manageability
WfM 2.0. DMI 2.0, WOL/WOR by PME
Form Factor
Micro-ATX form factor: 9.6 in x 9.6 in (24.5 cm x 24.5 cm)
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
Herstellerangabe / Produktsicherheit
Alle unsere hier angebotenen Produkte sind erstmalig vor dem 13.12.2024 in der EU in Verkehr gebracht worden und entsprechen den aktuellen Sicherheitsstandards.
Sie unterliegen nicht den neuen Anforderungen der GPSR.
