Produktbeschreibung

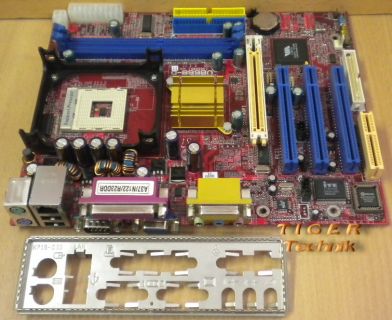

Biostar U8668-D Ver. 7.7 Mainboard
Sockel 478 AGP PCI CNR VGA + Blende
Technische Daten:
• Processor:
Intel Pentium 4 / Celeron processor
Support Intel Hyper-Threading Technology
533MHz / 400MHz system interface speed
• Chipset:
VIA P4M266A / VT8235
• Memory:
2 x 184-pin DDR SDRAM DIMM
PC2100 DDR SDRAM
Maximum 2GB
• Slots:
1 x AGP
3 x PCI
1 x CNR
• IDE:
4 x EIDE devices
Support Ultra DMA 66/100/133 Bus Master Mode
• I/O:
1 x PS/2 mouse, 1 x PS/2 keyboard
4 x Rear USB 2.0 and 2 x front USB 2.0 (PCB 5.0)
2 x Rear USB 2.0 and 4 x front USB 2.0 (PCB 7.1)
1 x VGA
1 x RJ45 port
1 x Parallel ,1 x Serial
1 x Game/Midi (PCB 7.1)
1 x Lin-out/Lin-in/Mic
1 x IrDA header
1 x Front audio header
1 x CD In header
1 x S/PDIF Out header
1 x Floppy
1 x Chassis intrusion header
1 x WOL header
• Video:
S3 ProSavage 8 up to 32MB shared video memory
• Audio:
C-Media CMI9739A 6-channel audio CODEC (PCB 5.0)
VIA VT1612A 2-channel audio CODEC (PCB 7.1)
C-Media CMI9761A 6-channel audio CODEC (PCB 7.7)
• LAN:
VIA VT6103
• Hardware Monitor:
CPU/System Fan Speed
CPU Temperatu
System Voltage
Vcore,+3.3V,+5V,+12V
• Size:
Micro ATX form factor
22.5cm x 19.0cm ( W x L )
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
