Dell 0R8060 Rev A01 Mainboard +Blende Dimension 3000 Ersatz Sockel 478* m142

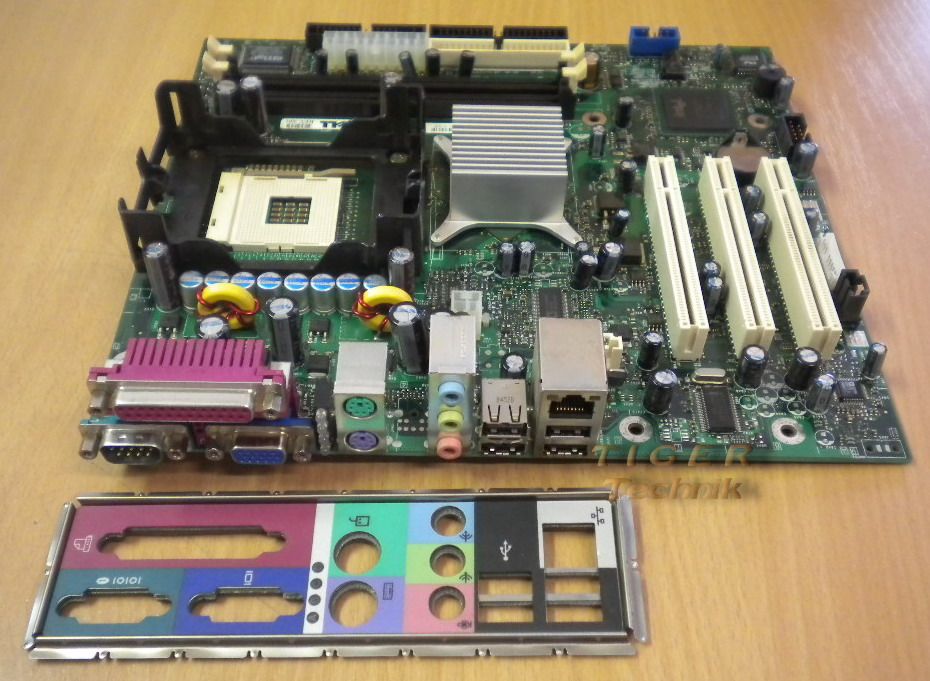

Dell 0R8060 Rev A01 Mainboard + Blende

Original Dimension 3000 Ersatzteil !!!

Technische Daten

CPU

Processor type: Intel® Pentium® 4 with HT Technology and Intel Celeron®

NOTE: Not all Pentium 4 processors support Hyper-Threading technology.

Level 1 (L1) cache: 8 KB

Level 2 (L2) cache: 128-KB or 512-KB (depending on your computer configuration); pipelined-burst, eight-way set associative, write-back SRAM

Front Side Bus: Intel Pentium 4: 800 MHz --- Intel Celeron: 533 MHz

Chipset: Intel 865 GV

Memory: 2x 333- and 400-MHz DDR SDRAM DIMMs; 128MB, 256MB, 512MB or 1GB non-ECC

NOTE: DDR333 and DDR400 memory runs at 266MHz when configured with Celeron 400MHz FSB processors; DDR333 memory runs at 320MHz when configured with Pentium 4 800MHz FSB processors

Minimum memory: 128 MB Maximum memory: 2GB

NOTE: Between 1 and 64 MB of system memory may be allocated to support graphics, depending on system memory size and other factors.

LAN: integrated network interface capable of 10/100 communication.

Video: Integrated Intel Extreme Graphics 2

Audio: AC97, Sound Blaster Emulation, ADI 1980 audio controller with 2.1 implementation

Expansion Bus: 3x PCI, 33MHz Bus speed

External connectors:

1x Serial 9-pin connector; 16550C-compatible

1x Parallel 25-hole connector (bidirectional)

1x Video 15-hole connector

1x Network adapter RJ45 connector

2x PS/2 (keyboard and mouse) 6-pin mini-DIN

6x USB2.0 (2x front-panel and 4x back-panel USB 2.0–compliant Connectors)

3x Audio connectors for line-in, line-out, and microphone

1x front-panel connector for headphones

System board connectors:

1x Primary IDE drive 40-pin connector on PCI local bus

1x Secondary IDE drive 40-pin connector on PCI local bus

1x Floppy drive 34-pin connector

1x CD Audio 4-pin connector

1x Fan 3-pin connector

BIOS address: F0000h

DMA channels: 7

Interrupt levels: 24

BIOS chip (NVRAM): 4 Mb

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
