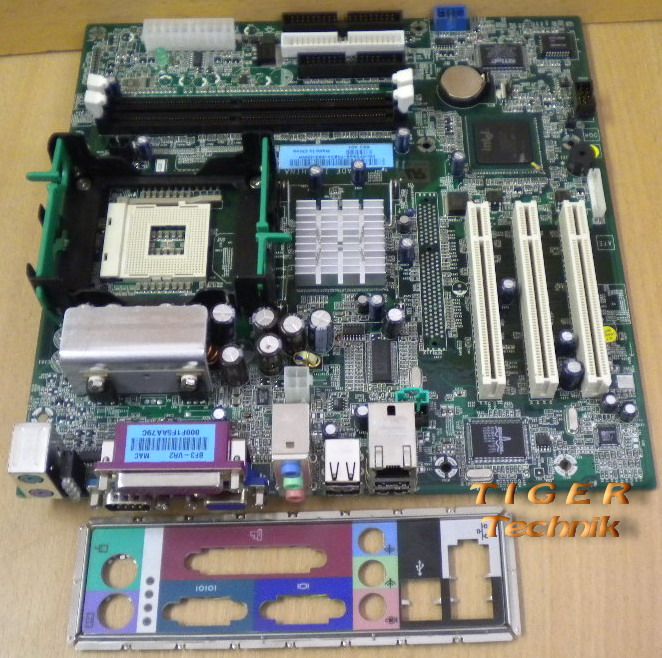

Dell CN-0F5949 Rev. A02 Dimension 2400 Mainboard Sockel 478 + Blende* m238

Dell CN-0F5949 Rev. A01 Dimension 2400

Mainboard Sockel 478 + Blende

Technische Daten:

System Information:

System chip set Intel 845GV

DMA channels eight

Interrupt levels 24 APIC mode

System BIOS chip 4 MB (512 KB)

System clock 400- or 533-MHz data rate

Expansion Bus:

Bus types PCI

Bus speed PCI: 33 MHz

PCI connectors three

PCI connector size 120 pins

PCI connector data width (maximum) 32 bits

Memory:

Architecture DDR SDRAM

Memory connectors two

Memory capacities 128-, 256-, or 512-MB

Minimum memory 128 MB shared DDR SDRAM

NOTE: Between 32 and 64 MB of system memory may be allocated to support graphics, depending on system memory size and other factors.

Maximum memory 2 GB

Memory type PC2100 (266-MHz) or PC2700 (333-MHz) DDR SDRAM (non-ECC)

Externally accessible:

Serial 9-pin connector; 16550C-compatible

Parallel 25-hole connector (bidirectional)

Video 15-hole connector

Keyboard 6-pin mini-DIN connector

Mouse 6-pin mini-DIN connector

USB two front-panel and four back-panel USB 2.0 compliant connectors

Network RJ-45 connector

Audio three back miniature connectors for line-in, line-out, and microphone

Headphone one front miniature connector for line-out

Internally accessible:

Primary IDE channel 40-pin connector on PCI local bus

Secondary IDE channel 40-pin connector on PCI local bus

Floppy drive (optional) 34-pin connector

Video:

Video controller integrated Intel 3D Extreme Graphics

Package Includes:

Motherboard

I/O Plate

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

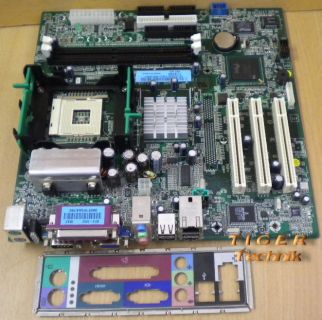

Abbildung ähnlich
