Elitegroup P4S5A/DX+ mit Blende

Technische Daten

CPU

º Socket 478 for latest Intel Pentium 4 / Celeron processor

º FSB 533/400 MHz

CHIPSET

º SiS® 645DX & 962L

º North Bridge: SiS® 645DX

º South Bridge: SiS® 962L

MEMORY

º 2 x 184-pin DDR DIMM socket support DDR333/266 DDR SDRAM

º 2 x 168-pin SDRAM DIMM socket support PC133/100 3.3V SDRAM

º Maximum: 2GB

Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS.

For Windows® 64-bit OS with 64-bit CPU, there is no such limitation

EXPANSION SLOT

          º 1 x AGP 4X slot

º 5 x PCI slots

º 1 x AMR slot

STORAGE

º Support by SiS® 962L

              • 2 x Ultra DMA133/100/66 devices

AUDIO

º C-Media CMI9738 4-channel audio CODEC

º Compliant with AC'97 2.2 specification

REAR PANEL I/O

º 1 x PS/2 keyboard & PS/2 mouse connectors

º 2 x USB ports

º 1 x Parallel port (LPT)

º 2 x Serial ports (COM1 & COM2)

º 1 x Game port

º 1 x Audio port (Line-in, Line-out, Mic-in)

INTERNAL I/O CONNECTORS & HEADERS

º 1 x 20-pin ATX Power Supply Connector

º 1 x FDD connector supports one 360K~2.88MB FDD

º 2 x IDE connectors

º 1 x IrDA for SIR header

º 1 x Speaker header

º 1 x USB 2.0 header support additional 2 USB ports

º 1 x Front panel switch/LED header

º 1 x Front panel audio header

º CD in1/CD in2/AUX in header

º CPUFAN/CASFAN connectors

º WOL connector

SYSTEM BIOS

º Award BIOS with 2Mb Flash ROM

º Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI

º Supports ACPI revision 1.0 specification

FORM FACTOR

º ATX Size, 305mm*244mm

Lieferumfang

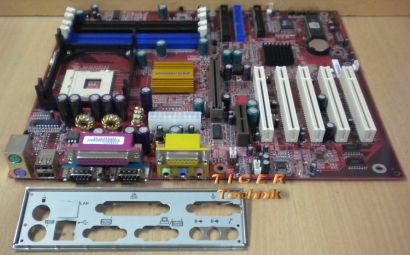

Das Mainboard + Blende - ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
