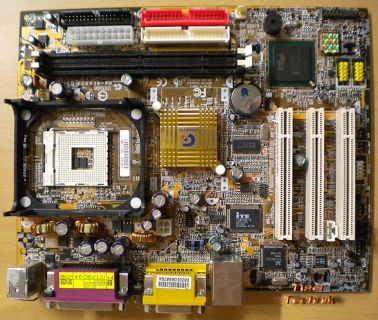

Gigabyte GA-8LS533 Rev1.0 Mainboard +Blende Sockel 478 VGA LAN Audio USB2.0*m553

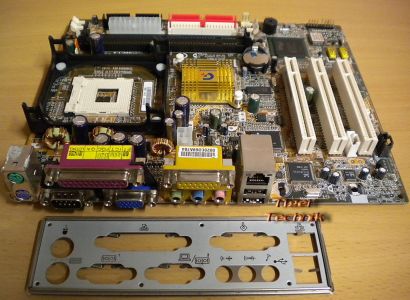

Gigabyte GA-8LS533 Rev 1.0 Mainboard + Blende

Technische Daten

CPU

Socket 478 for Intel® Pentium® 4

Front Side Bus

400 MHz FSB

Chipset

IntelR 82845GL GMCH

IntelR 82801DB ICH4

Realtek ALC101 Audio AC'97 CODEC

Realtek 8101L LAN controller chip

Super I/O: ITE I/O IT8702F chip

2M bit flash ROM

Memory

Type: PC 133 SDRAM

2 x DIMM

Max capacity: Up to 2 GB

Expansion Slots

3 x PCI (PCI 2.2 compliant)

Internal I/O Connectors

1 x FDD

2 x UDMA ATA 100/66 Bus Master IDE

2 x USB 2.0 headers for four devices

2 x cooling fan pin headers

CD/AUX in headers

Back Panel Connectors

2 x USB 2.0 ports

1 x LPT

1 x COM port

1 x VGA port

1 x RJ45 port

Audio (1 x Line-in / 1 x Line-out / 1 x MIC) connector

PS/2 Keyboard/Mouse connector

1 x Game/Midi port

Form Factor

mATX 24.3cm x 19.5cm

CPU/AGP/DIMM setting

CPU FSB / Multiplier

AGP frequency adjustable by BIOS

Memory frequency adjustable by BIOS

Other Features

IDE #1-#4, SCSI, LS120, ZIP, CD-ROM and USB bootable.

Suspend to RAM (STR)

Supports USB KB / MS wake up from S3
