Gigabyte GA-8SGXL Rev1.2 Mainboard +Blende Sockel 478 AGP 8X 5.1 Sound LAN* m27

Gigabyte GA-8SGXL Rev 1.2 Mainboard + Blende

Sockel 478 AGP 8X 5.1 Sound LAN

Technische Daten

Form Factor

30.4cm x 24.3cm ATX size form factor, 4 layers PCB

CPU

Socket 478 for Intel® Micro FC-PGA2 Pentium® 4 processor

Support Intel® Pentium® 4 (Northwood, 0.13 m) processor

Support Intel® Pentium® 4 Processor with HT Technology (optional)

Intel® Pentium® 4 400/533MHz FSB

2nd cache depends on CPU

Chipset

SiS 648 Host/Memory controller

SiS 963 MuTIOL Media I/O

Memory

3 x 184-pin DDR DIMM sockets

Supports DDR333/DDR266/DDR200 DIMM

Supports Up to 2 x un-buffer Double-sided DIMM DDR333 or up to 3 x un-buffer Double-sided DIMM DDR266/200

Supports up to 3GB DRAM (Max)

Supports only 2.5V DDR DIMM

I/O Control

IT8705F

Slots

1 x AGP slot 4X/8X (1.5V) device support

5 x PCI slot supports 33MHz & PCI 2.2 compliant

1 x CNR (Communication and Networking Riser) slot

On-Board IDE

2 x IDE bus master (UDMA33/ATA66/ATA100/ATA133) IDE ports for up to 4 ATAPI devices. Supports PIO mode3,4 (UDMA 33/ATA66/ATA100/ATA133) IDE & ATAPI CD-ROM.

On-Board Peripherals

1 x Floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88M bytes

1 x Parallel port supports Normal/EPP/ECP mode

2 x Serial ports (COM A & COM B)

8 x USB 2.0/1.1 ports (4 x Rear, 4 x Front by cable)

1 x Front Audio Connector

Hardware Monitor

CPU/System Fan Revolution detect

On-Board Sound

AC97 CODEC; Line In/ Line Out/ Mic In/ SPDIF/ CD In

On-Board LAN

Built in RTL8101L Chipset; 1 x RJ45 port

PS/2 Connector

PS/2 Keyboard interface and PS/2 Mouse interface

BIOS

Licensed AWARD BIOS, 2M bit Flash ROM; Supports Q-Flash

Additional Features

PS/2 Keyboard power on; PS/2 Mouse power on; STR(Suspend-To-RAM); AC Recovery

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

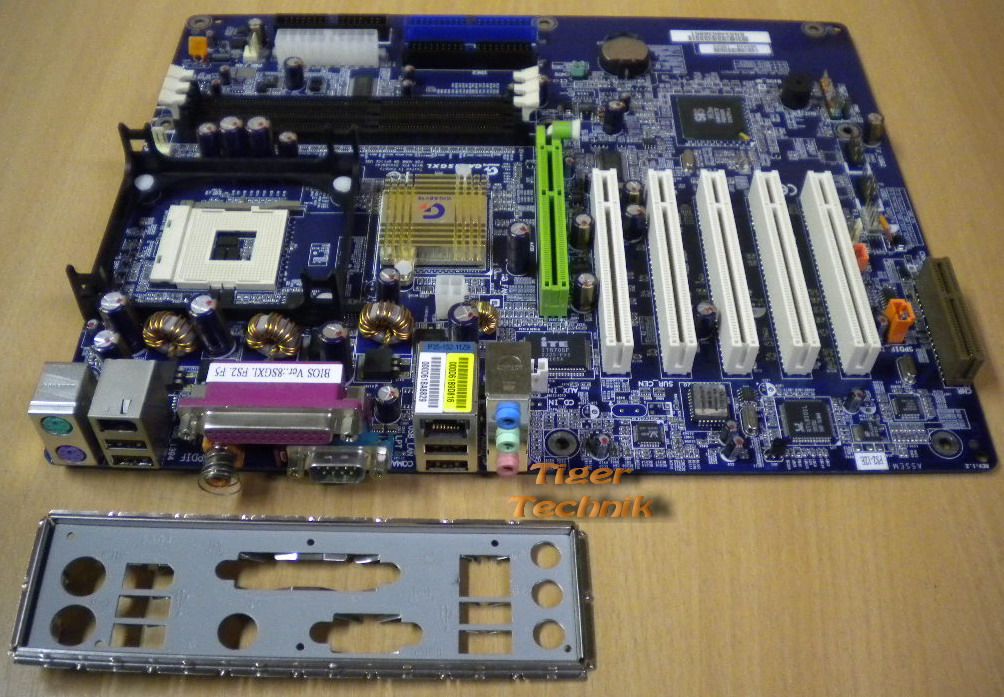

Abbildung ähnlich
