Produktbeschreibung

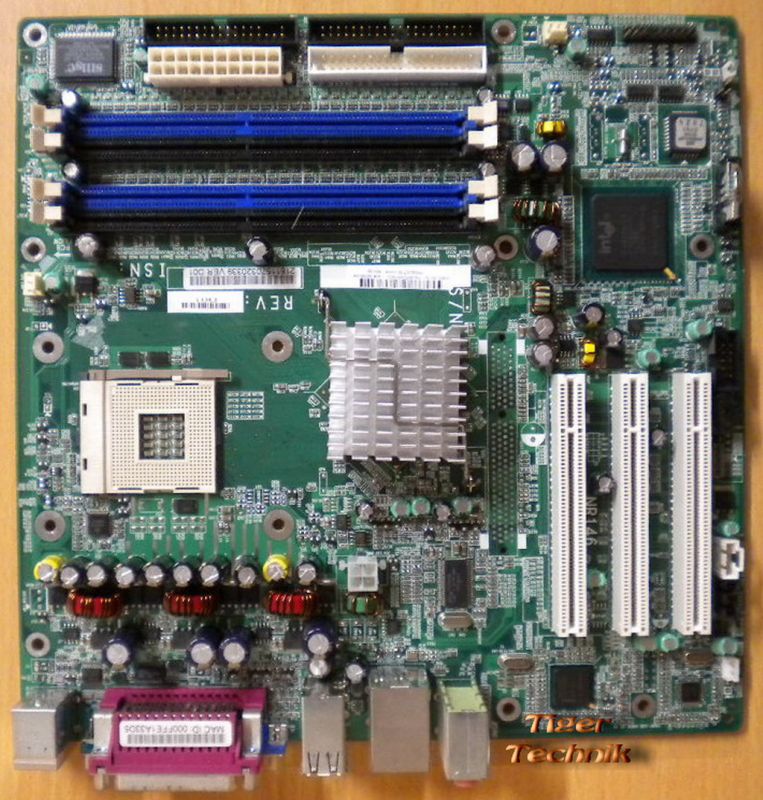

HP Compaq DX 2000 Mainboard + Blende
HP 865GV Replace SP 351067-001 AS 350286-004
Technische Daten
HP Compaq P/N: 351067-001
Processor
Socket 478B; mPGA 478-pin
Support Intel Pentium 4/Celeron 800/533/400MHz FSB processors
Power Management
ON 3 phase power solution
Meet Intel FMB 1.5 spec
Chipset
Intel 865GV
Intel ICH5
Super I/O
SMSC LPC47M192
Front Side Bus Frequency
400/533/800 MHz
Memory
4 x DIMM sockets
Support single and dual channel PC3200/PC2700/PC2100 DDR SDRAM
1st/3rd DIMM sockets in black; 2nd/4th DIMM sockets in blue
Clock Generator
Cypress CY28404/ics ics952617
Integrated Graphics
Intel Extreme Graphics 2 (integrated on the 865GV chipset)
Audio
ADI AD1888 2 channel audio
3D audio compliant with AC'97 rev. 2.3
LAN
Intel 82562EZ 10/100 LAN
IDE
Support all PIO modes
2 x IDE ports support up to 4 devices
Support Ultra ATA 33/66/100 (IDE1 black, IDE2 white)
Expansion Slots
3 x PCI slots
BIOS
4Mbit flash EEPROM
AMI BIOS, PnP, ACPI, SMBIOS 2.3, Boot Block, DMI
Manageability
WfM 2.0, DMI 2.0, SMBus
Industrial Standard
PCI 2.3 compliant
USB 2.0
Rear Side I/O Ports
1 x PS/2 keyboard port
1 x PS/2 mouse port
6 x USB 2.0 ports
1 x RJ-45 10/100 port
1 x serial port
1 x parallel port
1 x DB 15 pin analog VGA port
3 x audio ports
On Board I/O Interfaces
1 x ATX power connector
1 x +12V power connector
1 x Floppy connector
1 x Front panel connector, Switch, LED (ON/Flash/OFF)
2 x Fan headers for CPU, chassis, with voltage/fan speed control
1 x ATAPI headers-CD IN/AUX IN
1 x header to support 2 USB 2.0 ports at front side
1 x MONO-OUT header with amplifier
Form Factor
uATX form factor 245mm x 245mm
4-layer PCB with green color
Additional Features
Bootable without keyboard, mouse or monitor
Keyboard/mouse/USB wake up
Support S1, S3, S4 and S5
ACPI status
Hardware monitor capability
CPU fan speed control
Lieferumfang

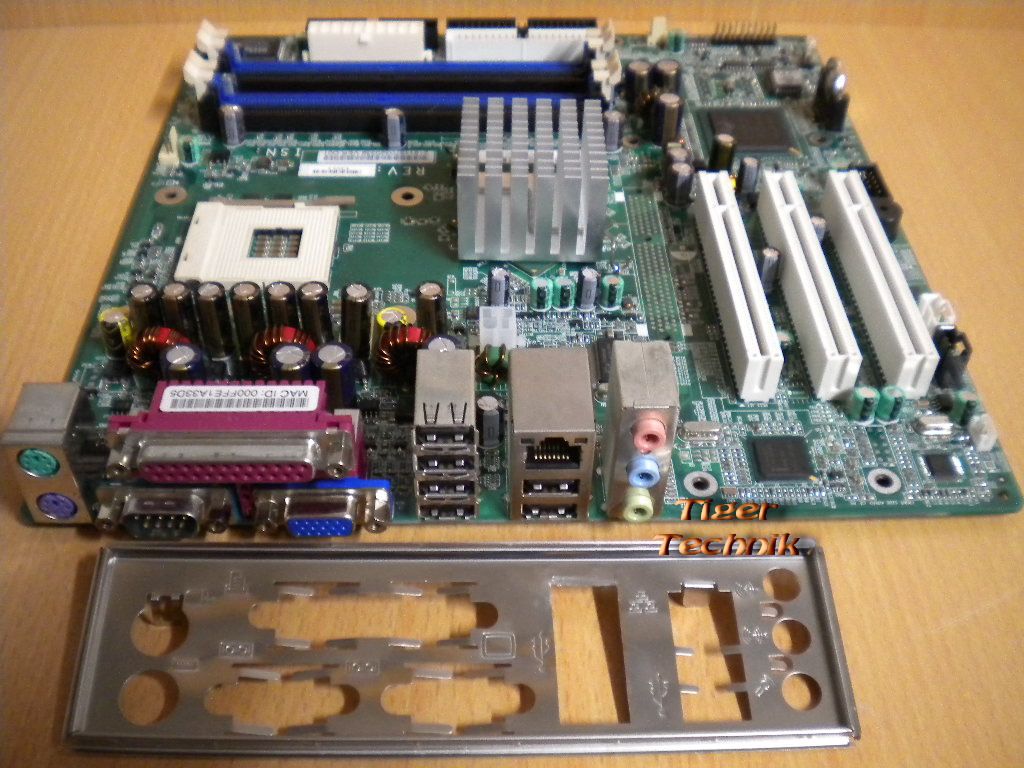

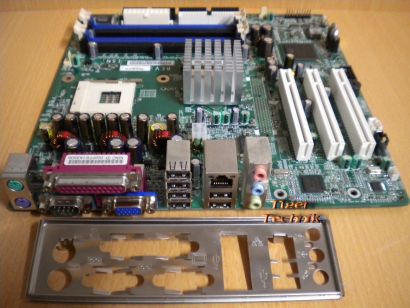

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
