Intel D845WN Rev A64179 205 Mainboard +Blende Sockel 478 SD RAM AGP Audio* m894

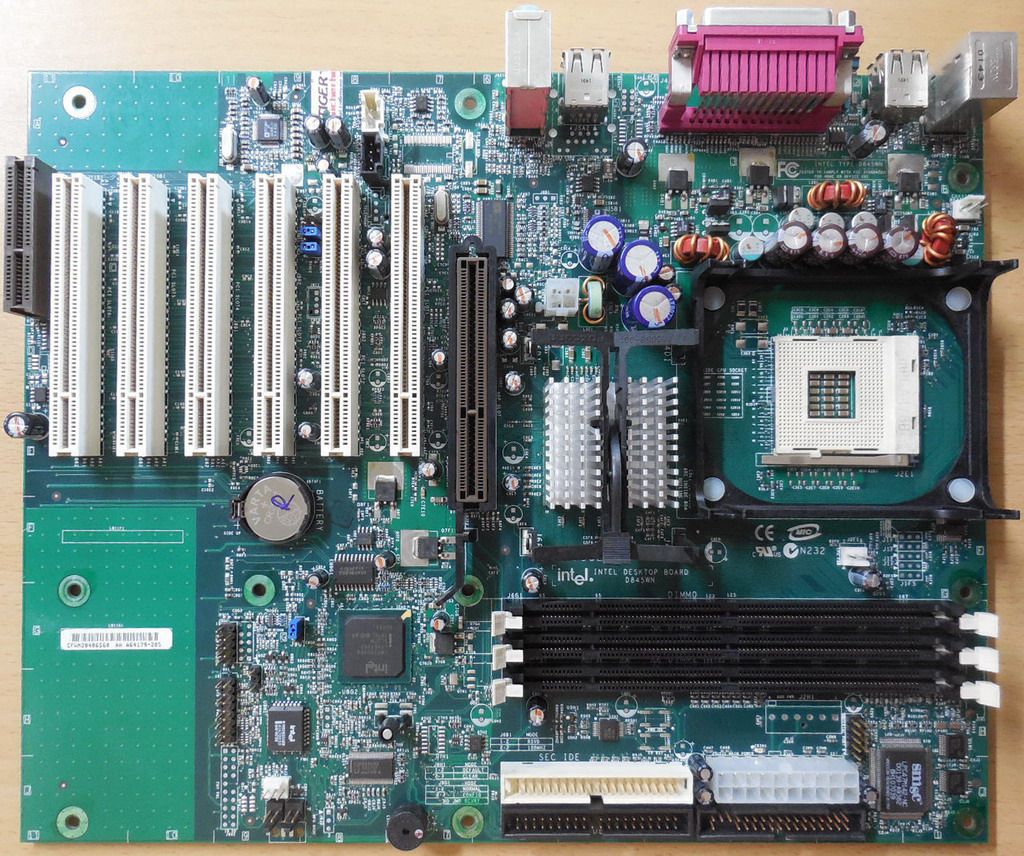

Intel D845WN Rev A64179-205 Mainboard + Blende Sockel 478 SD RAM AGP Audio

Technische Daten

CPU

Support for an Intel® Pentium® 4 processor in an mPGA478 socket

400 MHz system bus

Chipset

Intel®82845 Memory Controller Hub (MCH) + Intel®82801BA I/O Controller Hub (ICH2) + Intel®82802AB 4 Mbit Firmware Hub (FWH)

Memory

3 x 168-pin SDRAM Dual Inline Memory Module (DIMM) sockets

Support for single-sided or double-sided DIMMs (PC133 only)

Support for up to 3 GB system memory

Expansion Capabilities

1 x AGP connector supporting 1.5 V 4X AGP cards

6 x PCI bus add-in card connectors (SMBus routed to PCI bus connector)

1 x CNR One Communication and Networking Riser (CNR) connector (slot shared with PCI bus connector 6 on the D845WN board)

Storage

2 x IDE interfaces with UDMA 33, ATA-66/100 support for up to 4 devices

1 x diskette drive interface

Audio

Audio subsystem for AC 97 processing using the Analog Devices AD1885 codec

USB

6 x USB 1.1 ports (2 ports at mid-board, 4 ports at back panel)

Legacy I/O Control

SMSC LPC47M142 LPC Bus I/O controller

Back Panel I/O Ports

1 x COM

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x Parallel

4 x USB 1.1

3-channel Audio I/O

Internal I/O Connectors

1 x 20-pin ATX Power connector

1 x 4-pin ATX 12V Power connector

1 x CPU Fan connector (3pin)

2 x Chassis Fan connector (3-pin)

1 x AUX_In connector

1 x CD_In connector

1 x System Panel connector

1 x Floppy connector

1 x USB connectors support additional 2 USB ports

1 x Serial port connector (COM B)

2 x IDE connectors

1 x CMOS Jumper

1 x IrDA connector

1 x Chassis Intruder connector

BIOS

Intel/AMI BIOS (resident in the Intel82802AB 4 Mbit FWH)

Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and SMBIOS

Instantly Available PC Technology

Support for PCI* Local Bus Specification Revision 2.2

Suspend to RAM support

Wake on PCI, CNR, RS-232, front panel, PS/2 devices and USB ports

Hardware Monitor Subsystem

Voltage sense to detect out of range power supply voltages

Thermal sense to detect out of range thermal values

Two fan sense inputs used to monitor fan activity

Form Factor

ATX Form Factor (12.00 inches by 9.60 inches)

Lieferumfang

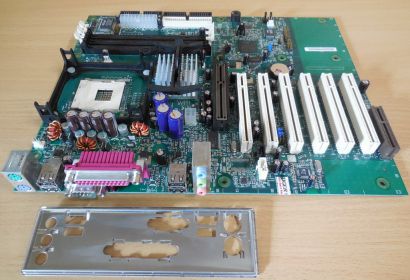

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
