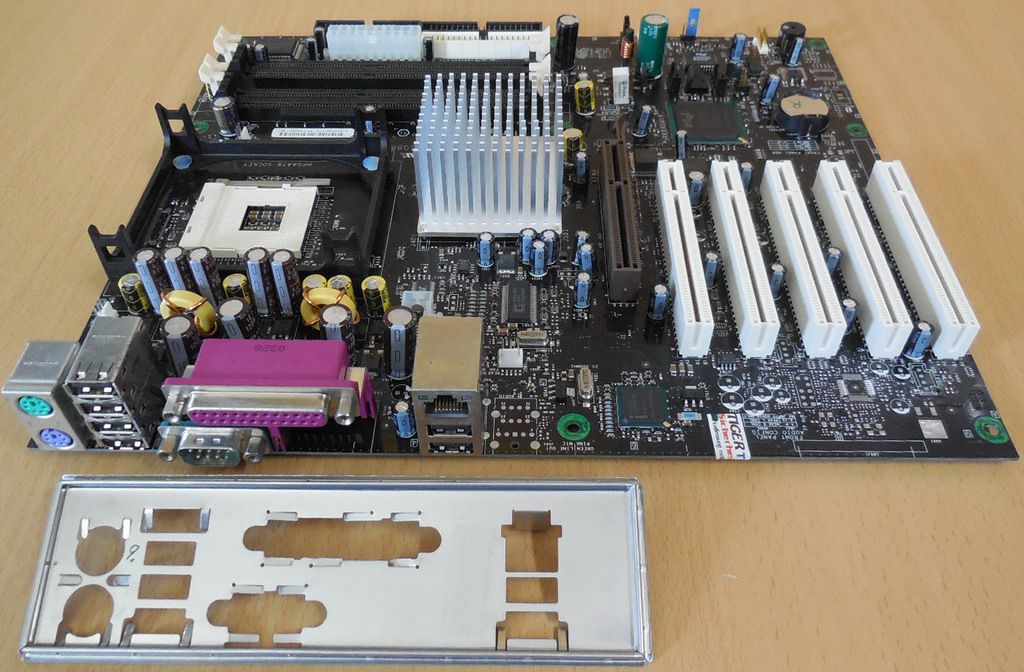

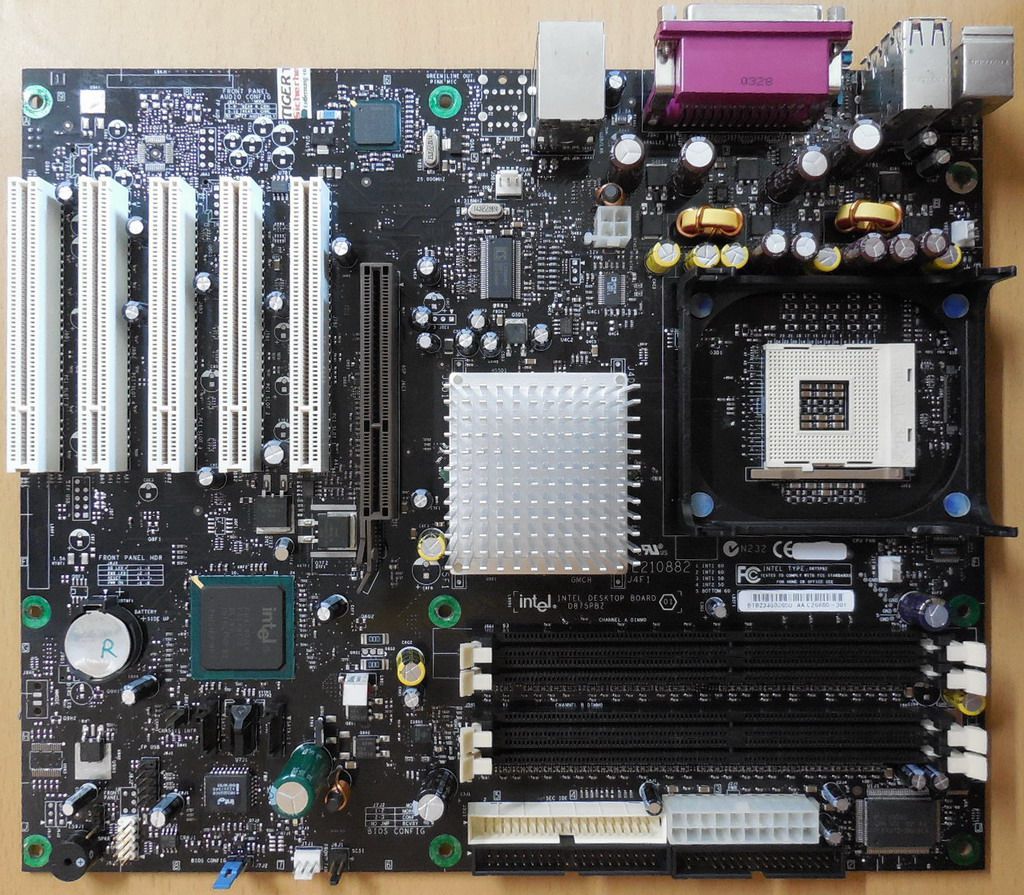

Intel D875PBZ Rev C26680-301 Mainboard +Blende Sockel 478 AGP 8X SATA DDR* m1053

Intel D875PBZ Rev C26680-301 Mainboard + Blende Sockel 478 AGP 8X DDR Gigabit LAN USB2.0 SATA

Technische Daten

CPU

Support for an Intel® Pentium® 4 processor in an mPGA478 socket with a 533/800 MHz system bus

Chipset

Intel® 875P Chipset bestehend aus:

Intel® 82875P Memory Controller Hub (MCH)

Intel® 82801ER I/O Controller Hub (ICH5-R)

Intel® 82802AC (8 Mbit) Firmware Hub (FWH)

Memory

4 x 184-pin DDR SDRAM Dual Inline Memory Module (DIMM) sockets

Support for DDR400 and DDR333 SDRAM DIMMs up to 4 GB of system memory

Expansion Capabilities

5 x PCI bus add-in card connectors

1 x Universal 0.8/1.5 V AGP 3.0 connector with integrated retention mechanism (supporting 1x, 4x, and 8x AGP cards)

Storage

2 x SATA 1.5 Gb/s ports via ICH5R

2 x IDE interface with UDMA 33 ATA-66/100 support for up to 4 devices

LAN

Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel® 82547EI Gigabit Ethernet Controller

USB

8 x USB 2.0 ports (2 ports at mid-board, 6 ports at back panel)

LPC Bus I/O controller

1 x diskette drive interface (supporting 1.2 MB, 1.44 MB and 2.88 MB)

1 x serial port header

1 x parallel port (ECP/EPP)

PS/2 keyboard and mouse ports

Back Panel I/O Ports

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x Parallel

1 x Seriell

1 x RJ45 port

6 x USB 2.0/1.1

Internal I/O Connectors

1 x 20-pin ATX Power connector

1 x 4-pin ATX 12V Power connector

1 x 3-pin CPU Fan connector

1 x 3-pin Front Fan connector

1 x 3-pin REAR Fan connector

1 x 3-pin Voltage regulator Fan connector

1 x Front Panel connector

1 x SCSI Hard Drive Activity LED connector

2 x USB connectors support additional 2 USB ports

2 x SATA connectors

2 x IDE connectors

1 x FDD Floppy connector

1 x Chassis Intrusion connector

1 x Bios setup configuration Jumper

1 x Auxiliary front panel power LED connector

1 x Buzzer

BIOS

Intel/AMI BIOS (resident in the Intel 82802AC FWH)

Support for Advanced Configuration and Power Interface (ACPI), Plug and Play and SMBIOS

Instantly Available PC Technology

Support for PCI Local Bus Specification Revision 2.2

Suspend to RAM support

Wake on PCI, RS-232, front panel, PS/2 devices, and USB ports

Hardware Monitor Subsystem

Hardware management ASIC

Voltage sense to detect out of range power supply voltages

Thermal sense to detect out of range thermal values

Four fan connectors

Four fan sense inputs used to monitor fan activity

Fan speed control

Form Factor

ATX; 11.52 inches by 9.6 inches (292.61 mm x 243.84 mm)

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
