MSI 845PE Neo MS-6580 Ver. 3.0 Mainboard Sockel 478 AGP PCI + Blende* m212

MSI 845PE Neo MS-6580 Ver. 3.0 Mainboard

Sockel 478 AGP PCI + Blende

Technische Daten:

CPU:

• Supports Socket 478 for Intel® Pentium 4/Celeron/P4 Extreme Edition processor

• Supports 1.4 ~ 3.06GHz and up

Chipset:

• Intel® 845PE Chipset

- AGP 4x slot (1.5V only)

- FSB 533/800MHz (overclock)

- Support DDR 200/266/333/400 (overclock)

- Supports 400/533MHz Intel NetBurst micro-architecture bus

• Intel® ICH4 Chipset

- AC'97 2.2 interface

- 6 USB 2.0/1.1 ports

- 2 channel Ultra ATA/100 Bus Master IDE controller

- SMBus 2.0 support

- Integrated LAN controller

Main Memory:

• Supports two 184-pin DDR400(overclock)/DDR333/DDR266/DDR200 DIMMs

• Supports Max. memory size of 2GB

• No support ECC Function

Slots:

• One AGP(Accelerated Graphics Port) 4x slot (support 1.5v only)

• Six PCI 2.2 32-bit Master bus slots (support 3.3v/5v)

On-Board IDE:

• An IDE controller integrated in ICH4

• Support PIO, Bus Master and Ultra ATA66/100 operation modes

• Can connect up to four IDE devices

Audio:

• 6 channels audio codec Realtek ALC650/655

Network:

• Realtek 8101L

- Integrated 10/100 Ethernet MAC and PHY in one chip

- Supports 10Mb/s and 100Mb/s auto-negotiation operation

- Compliant with PCI v2.2, mini PCi 1.0 and LAN on Motherboard (LOM) standard

On-Board Peripherals include:

- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes

- 1 serial port connectors COM A

- 1 parallel port

- 1 RJ-45 LAN jack (Optional)

- audio ports in vertical

- 6 USB ports (Rear x4/ Front x2)

BIOS:

• The mainboard BIOS provides "Plug & Play" BIOS  which detects the peripheral devices and expansion cards of the board  automatically.

• The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications.

Dimension:

• 30.5cm(L) x 20cm(W) ATX Form Factor

Mounting:

• 6 mounting holes.

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

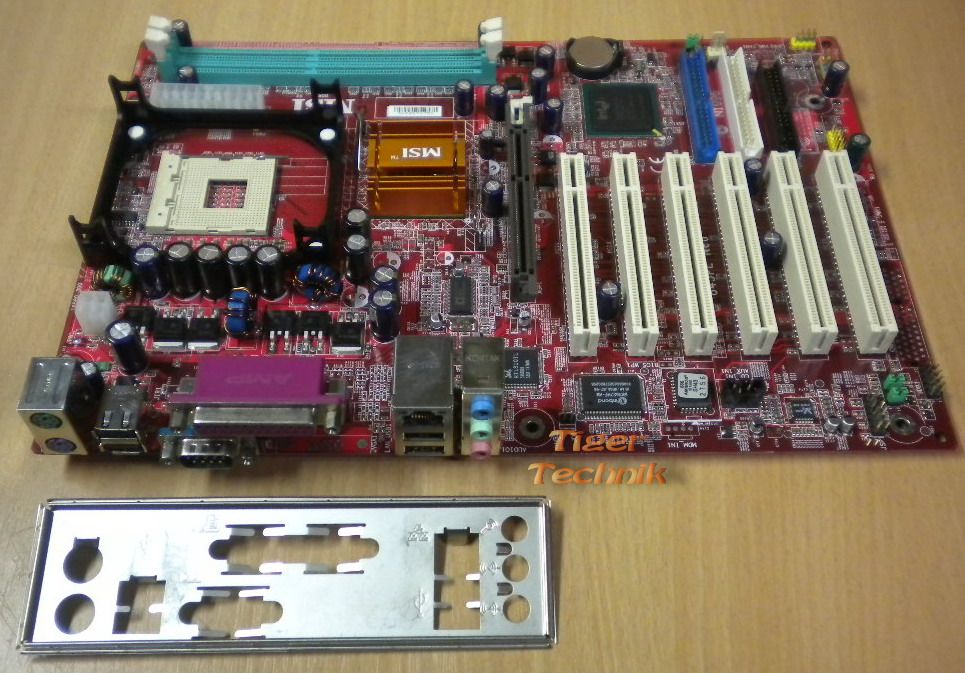

Abbildung ähnlich
