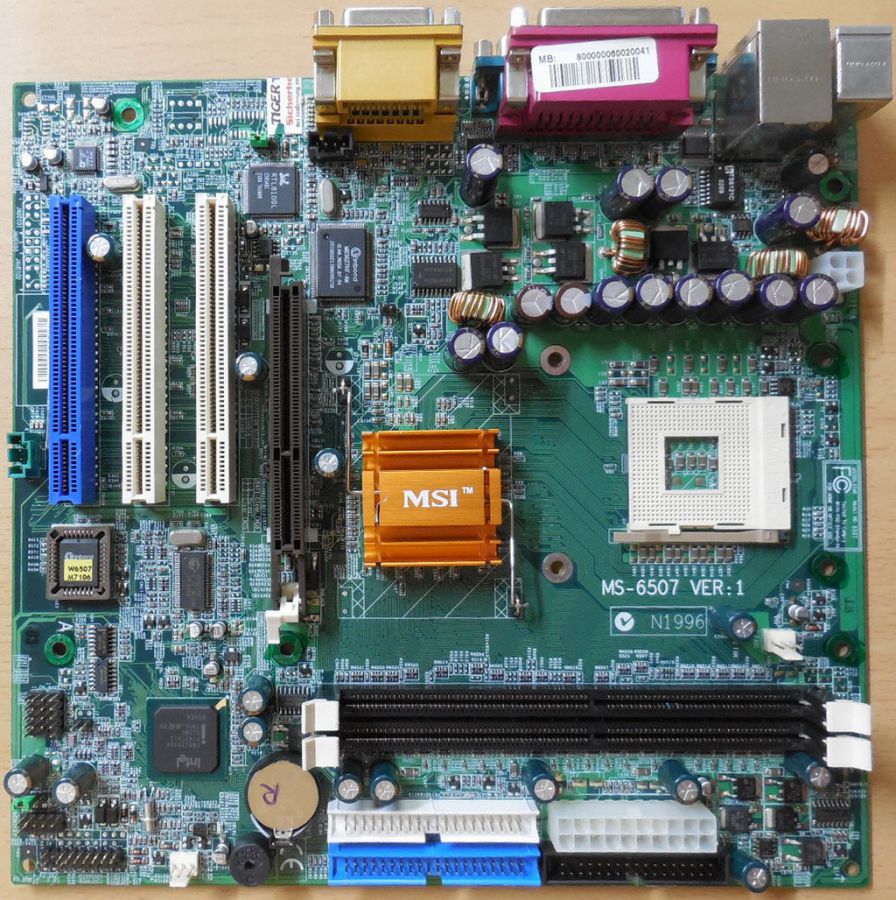

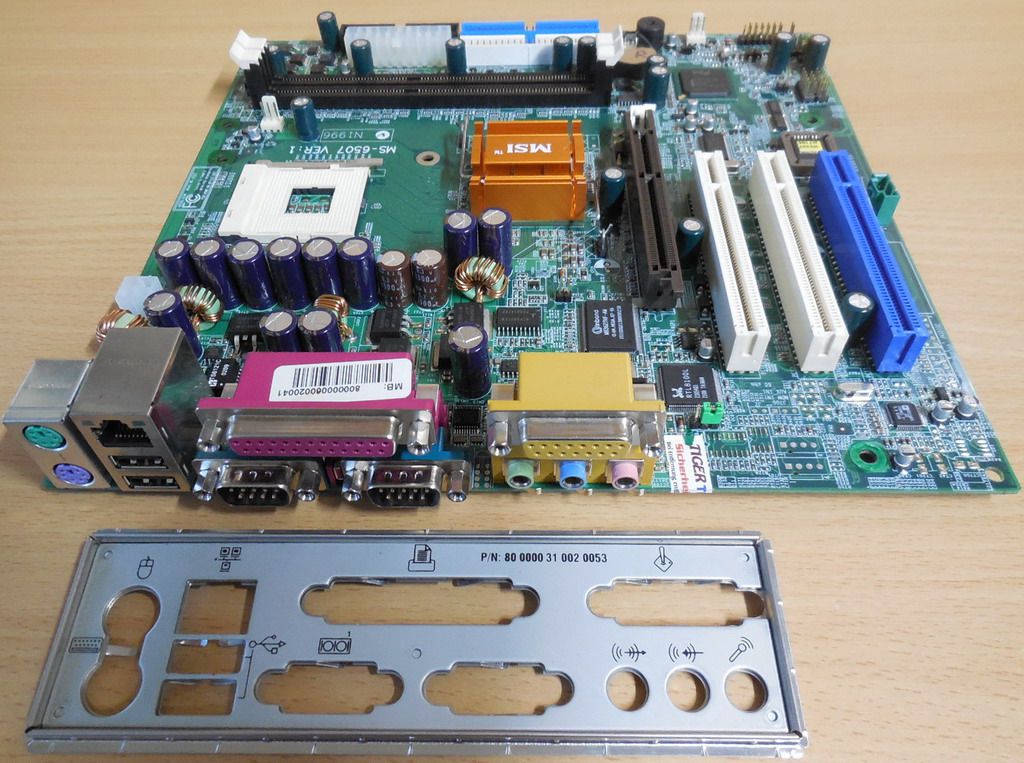

MSI MS-6507 Ver 1 Mainboard + Blende Sockel 478 Intel 845 AGP PCI LAN USB Audio
Technische Daten
CPU
Supports Intel® Pentium® 4 processor in 478 pin package with FSB400. (1.5GHz, 1.6GHz, 1.7GHz, 1.8GHz, 1.9GH z, 2GHz and up)
Chipset
Intel® 845 chipset (593 FC-BGA)
- Supports DDR SDRAM at 200/266MHz operation (DDR200/DDR266)
- AGTL+ host bus with integrated termination supporting 32-bit host addressing
- 1.5V AGP interface with 4x data transfer and 4x fast write capability
- 8-bit, 66MHz 4x hub interface to the Intel ICH2
Intel® ICH2 chipset (360 EBGA)
- Upstream hub interface for access to the Intel MCH
- 2-channel Ultra ATA/100 Bus Master IDE controller
- USB controller 1.1 (expanded capabilities for 4 ports)
- I/O APIC
- SMBus controller
- FWH interface
- LPC interface
- AC’97 2.1 interface
- PCI 2.2 interface
- Integrated system management controller
Main Memory
Supports four memory banks using two 184-pin DDR DIMM
Supports up to 2GB PC2100/PC1600 DDR SDRAMs
Supports 2.5v DDR SDRAM
Slots
1 x AGP (Accelerated Graphics Port) 4x slot (1.5V only)
Note: The AGP slot DOES NOT support 3.3V AGP card. Use of 3.3V AGP card may cause damage to the mainboard.
3 x PCI 2.2 32-bit Master PCI bus slots (support 3.3V/5V PCI bus interface)
On-Board IDE
An IDE controller on the ICH2 chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA33/66/100 operation modes. Can connect up to four IDE devices.
LAN
PCI local bus single-chip Fast Ethernet Controller RealTek RTL8100L
Integrated Fast Ethernet MAC and PHY in one chip
Supports 10Mb/s and 100Mb/s auto-negotiation operation
Compliance with PCI v2.2/PC99 standard
Supports Wake-On-LAN and remote wake-up
Supports ACPI power management
Audio
AC’97 link controller integrated in ICH2 chipset. 2-channel software audio codec AD1885
Intern: Echtzeituhr/Kalender mit Batteriepufferung
2 x Ultra ATA100 Connectors for up to 4 IDE Devices
1 x Floppy Disk Drive Connector (360K, 720K, 1.2M, 1.44M and 2.88Mbytes)
1 x 3-pin CPU FAN Connector
1 x 3-pin System FAN Connector
1 x CD-IN Connector
1 x JAudio4 Connector
1 x JLAN1 Connector
1 x Chassis Intrusion Connector
1 x Power Saving Switch Connector
1 x IrDA connector for SIR
1 x Wake-On-Ring Connector
1 x CMOS Jumper
2 x USB Connectors für additional 4 more USB1.1 Ports
1 x Buzzer
1 x Front Panel Connector
1 x 20-pin ATX Power Connector
1 x 4-pin 12V Processor Power Supply Connector
Externe Anschlüsse: 1 x PS/2 Keyboard; 1 x PS/2 Mouse, 2 x COM Seriell RS232; 2 x USB1.1, 1 x Parallel (SPP/EPP/ECP); 1 x RJ-45 LAN; 1 x Game-Midi; 1x Line-In, 1x Line-Out, 1x Microphone
BIOS
The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically. The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications.
Dimension
Micro ATX Form Factor: 24.3cm x 23.3cm
Mounting
6 mounting holes.
Das Retention Modul fehlt und ist nicht dabei. Bitte informieren Sie sich vor Ihrem Kauf im Internet (z.B. Herstellerseite) ob das Mainboard zu Ihrem System kompatibel ist.
