Produktbeschreibung

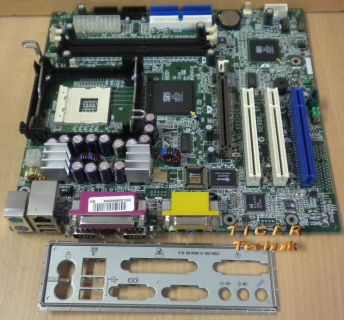

MSI MS-6533 Ver 1 Medion Mainboard + Blende
Sockel 478 AGP PCI LAN Seriell
Technische Daten
CPU
Supports Intel® Pentium® 4 processors in the 478 pin package.
Supports 1.5GHz, 1.6GHz, 1.7GHz, 1.8GHz, 1.9GHz, 2GHz and up.
Chipset
SiS® 645/650 HMAL/IGUI HMAL (702-pin BGA)
- High performance host interface (400MHz).
- 64 bit performance DDR 333 (SiS 645 only) / DDR 266 / DDR 200 memory controller.
- Integrated A.G.P compliant target/66MHz Host-to-PCI bridge.
- High throughput SiS HyperZip connect to SiS 961 HyperZip Media I/O.
- Dedicated isochronous response queue.
SiS® 961 HyperZip Media I/O (371-pin BGA)
- High performance HyperZip connect to SiS series NB.
- Integrated multi-threaded I/O link ensures concurrency of up/down data transfer.
- Integrated HyperZip connect to PCI bridge.
- Dual IDE Master/Slave controller.
- Integrated USB host controller.
- Integrated audio controller with AC97 interface.
- Advanced power management and PC2001 compliance.
- Integrated RTC and DMA interrupt and keyboard controller.
- Integrated PCI to LPC bridge.
Main Memory
Supports four memory banks using two 184-pin unbuffered DDR DIMM.
Supports up to 2GB memory size.
Supports 2.5v DDR SDRAM.
Slots
One AGP (Accelerated Graphics Port) 4X slot.
Three PCI 2.2 32-bit PCI bus slots (support 3.3V/5V PCI bus interface).
On-BoardIDE
An IDE controller on the SiS961 chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA100/66/33 operation modes. Can connect up to four IDE devices.
On-Board Peripherals
On-Board Peripherals include:
- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes.
- 2 serial ports (COM A + COM B).
- 1 parallel port supports SPP/EPP/ECP mode.
- 4 USB ports (Rear * 2/ Front * 2).
- 1 IrDA connector for SIR.
- 1 RJ-45 LAN jack (optional).
- 1 audio/game port.
Audio
AC97 link controller integrated in SiS 961.
2-channel software audio codec RealTek ALC201A/202A.
- Compliance with AC97 v2.2 Spec.
- Meet PC2001 audio performance requirement.
LAN (optional)
PCI local bus single-chip Fast Ethernet Controller, RealTek RTL8100L/BL.
- Integrated Fast Ethernet MAC and PHY in one chip.
- Supports 10Mb/s and 100Mb/s auto-negotiation operation.
- Compliance with PCI v2.2/PC99 standard.
- Supports Wake-On-LAN and remote wake-up.
- Supports ACPI power management.
BIOS
2Mb Award/AMI BIOS with PnP, ACPI, SMBIOS 2.3, Green and Boot Block.
Provides DMI2.0, WfM2.0, WOL, WOR, chassis intrusion, and SMBus for system management.
Dimension
Micro ATX Form Factor: 9.6” x 9.1”.
Mounting
6 mounting holes.
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
