Produktbeschreibung

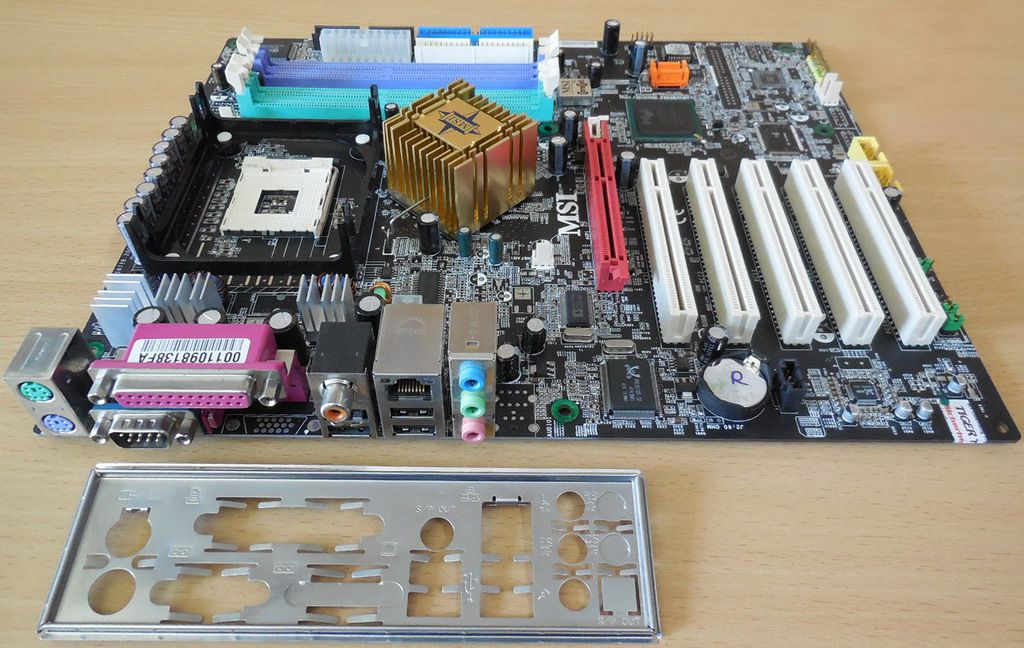

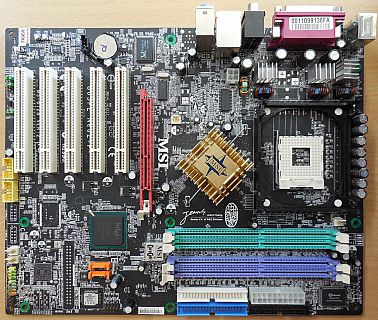

MSI MS-6728 Ver 2 865PE Neo2-P Mainboard +Blende Sockel 478 AGP 8X SATA DDR
Technische Daten
CPU
Supports Intel® P4 Northwood/Prescott (Socket 478) processors.
FSB 400 (for Northwood only), 533, 800MHz.
Supports up to 3.4GHz or higher speed.
Chipset
Intel® 865PE chipset
- Supports FSB 800/533/400MHz.
- Supports AGP 8X interface.
- Supports DDR 400/333/266 memory interface.
Intel® ICH5 chipset
- Hi-Speed USB (USB2.0) controller, 480Mb/sec, 8 ports.
- 2 x Serial ATA/150 ports.
- 2 channel Ultra ATA 100 bus Master IDE controller.
- PCI Master v2.3, I/O APIC.
- Supports both ACPI and legacy APM power management.
Main Memory
Supports four unbuffered DIMM of 2.5 Volt DDR SDRAM.
Supports up to 4GB memory size without ECC.
Supports Dual channel DDR266/333/400/433*/466*/500*/533* MHz and up. (*DDR433/466/500/533 are overclocking spec)
Slots
1 x AGP slot supports 8x/4x.
5 x 32-bit v2.3 Master PCI bus slots (support 3.3v/5v PCI bus interface).
On-Board IDE & SATA
Dual Ultra DMA 66/100 IDE controllers integrated in ICH5. Supports PIO, Bus Master operation modes. Can connect up to four Ultra ATA drives.
Serial ATA/150 controller integrated in ICH5. Up to 150MB/sec transfer speeds. Can connect up to two Serial ATA drives.
On-Board Peripherals include
1 x floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes
1 x serial port COM-A
1 x parallel port supports SPP/EPP/ECP mode
8 x USB 2.0 ports (Rear * 4/ Front * 4)
1 x Line-In / Line-Out / Mic-In audio port
1 x RJ45 LAN jack
1 x rear coaxial SPDIF-Out
Audio
AC97 link controller integrated in Intel® ICH5 chipset. 6-channel audio codec Realtek ALC655.
- Compliance with AC97 v2.3 Spec.
- Meet PC2001 audio performance requirement.
LAN
Realtek® 8110S
- Integrated Fast Ethernet MAC and PHY in one chip.
- Supports 10Mb/s, 100Mb/s and 1000Mb/s.
- Compliance with PCI 2.2.
- Supports ACPI Power Management.
BIOS
The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications.
Dimension
ATX Form Factor: 30.5 cm (L) x 24.5 cm (W).
Mounting
9 mounting holes.
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
